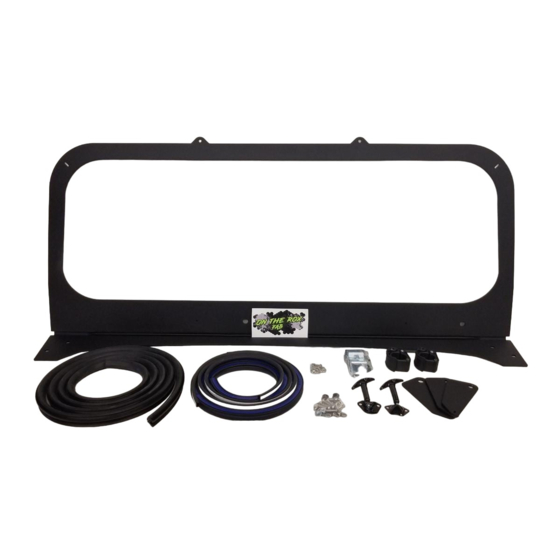

Folding Windshield Installation Guide
On the Rox Fabrication
Ontheroxfab.com
406-967-2189
*READ INSTRUCTIONS THOROUGHLY BEFORE BEGINNING. OTR IS NOT
RESPONSIBLE FOR INCORRECT INSTALLATION OR LOCAL LAWS
REGARDING AFTERMARKET ACCESSORIES. THE USER IS RESPONSIBLE FOR
ALL LIABILITIES ASSOCIATED WITH THE INSTALLATION AND USE OF THIS
PRODUCT.
ALWAYS UTILIZE PERSONAL SAFETY EQUIPMENT WHEN YOU ARE
WORKING IN THE SHOP.
DISCONNECT BATTERY BEFORE YOU BEGIN.
Advertisement
Related Manuals for On the Rox Folding Windshield
Summary of Contents for On the Rox Folding Windshield
- Page 1 Folding Windshield Installation Guide On the Rox Fabrication Ontheroxfab.com 406-967-2189 *READ INSTRUCTIONS THOROUGHLY BEFORE BEGINNING. OTR IS NOT RESPONSIBLE FOR INCORRECT INSTALLATION OR LOCAL LAWS REGARDING AFTERMARKET ACCESSORIES. THE USER IS RESPONSIBLE FOR ALL LIABILITIES ASSOCIATED WITH THE INSTALLATION AND USE OF THIS PRODUCT.
- Page 2 ● First, begin by installing the catch tab onto the top of the folding windshield. Earlier models may require the holes to be drilled. Make sure the acorn nuts are facing outward towards the front of the Roxor. Image shown below. ●...
- Page 3 ● Use masking tape to mark the center, and the upcoming measurements as you make them. (If your measurements vary from ours in order to make the acorn nuts holding the catch tab land perfectly onto the rubber bumpers, that is alright. Just make sure that the mounting locations are symmetrical.) (Also, verify that the T Handle hook will grab onto the catch tab.
- Page 5 Mark the next holes out at 11 ½”, 13 ½” and make a perpendicular ● mark at 16 5/8”. At 16 5/8” you will make two hole marks 7/8” on each side of the ● vertical line, on your perpindicular line as shown below.
- Page 6 Your map of measurements and holes to drill should look the same as ● below. Verify that your hole sets are 18 ¾” apart. ● ● Verify that the windshield catch tab lands in the correct spot to be securely fastened when the windshield frame is folded down.
- Page 7 Once all measurements are verified, drill the holes out with a ¼” drill ● bit. M AKE SURE NO OBJECTS IN THE ENGINE BAY WILL BE HIT WITH YOUR DRILLBIT. You may now mount the hold down hardware in the locations as shown ●...
