Summary of Contents for Turing Vision Smart Series

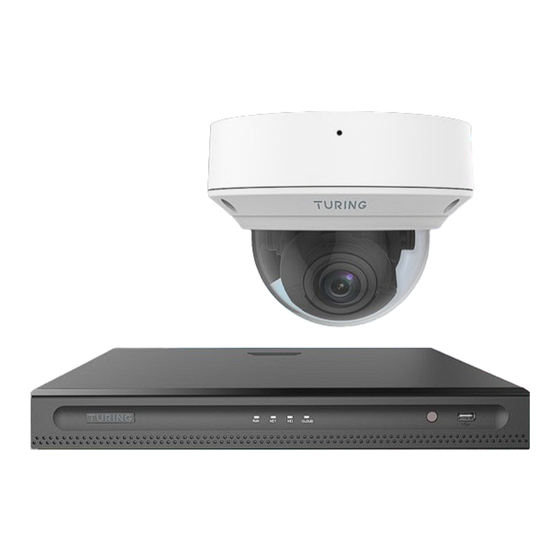

- Page 1 Smart Series: IP Cameras and NVR Hardware Setup Congratulations on your purchase of a Turing Vision surveillance platform. This guide will help you setup your hardware system for the firs time.
- Page 2 Congratulation on your purchase of the TURING Smart Series IP Cameras and NVR system. This guide will help you setup the Turing Smart Series IP Cameras and NVR systems and get things running. Be sure to check to see that all parts are present. Note, some third-party components such as monitors, mice and keyboards can also be used with this system.
- Page 3 TURING Vision Quick Start Guide – Smart Series Hardware Setup Connect Cameras and Router/Network to NVR Router (Or Ethernet switch with Internet) Camera Network Cable (Not Included) Network Cable (Not Included)
- Page 4 TURING Vision Quick Start Guide – Smart Series Hardware Setup Connect Power to Monitor and Bridge LAN1 LAN2/WAN Router/Switch Ports Network Port HDMI Power LAN USB HDMI Bridge Box Power Monitor...
- Page 5 TURING Vision Quick Start Guide – Smart Series Hardware Setup Connect Mouse and Keyboard USB Ports Mouse and Keyboard Connectors Or Cables Turn on Components Bridge Power Button Power Switch...
- Page 6 TURING Vision Quick Start Guide – Smart Series Hardware Setup Logging in using Monitor The next sections will assume you have some familiarity with computers and software. You can login to the NVR locally using the monitor provided, or remotely using a mobile device app or desktop computer connected to the Internet. We will first login using the monitor.
- Page 7 TURING Vision Quick Start Guide – Smart Series Hardware Setup Logging in using Monitor (Cont.) 5) Set an unlock pattern for extra security (this pattern can also be used in other menus within the system). EXAMPLE:...
- Page 8 TURING Vision Quick Start Guide – Smart Series Hardware Setup Network Setting using Monitor 1) Adjust time and date. 2) Setting up IP address...
- Page 9 TURING Vision Quick Start Guide – Smart Series Hardware Setup Setting up NVR Remotely Smart Utility software to search and find NVR within the network. Download and install software from link below: https://turingvideo.com/software-download/ Once you have installed the software, it will automatically detect any devices connected to your local network.
- Page 10 TURING Vision Quick Start Guide – Smart Series Hardware Setup Setting up NVR Remotely (Cont.) Open any web browser and type in the IP address of the NVR into the search bar and a login for the NVR will appear. Enter the following:...
- Page 11 TURING Vision Quick Start Guide – Smart Series Hardware Setup Setting up NVR Remotely (Cont.) Once you have logged into the NVR you will see the NVR's home screen (similar to the monitor home screen). Select SETUP from the menu at the top to examine the NVR components.
- Page 12 TURING Vision Quick Start Guide – Smart Series Hardware Setup Setting up IP Cameras Remotely Select CAMERA on the side menu to view all cameras connected to the NVR. When adding new cameras, turn Auto Switch to H.265 OFF. When installing new cameras, the protocols need to be PRIVATE.
- Page 13 TURING Vision Quick Start Guide – Smart Series Hardware Setup Assign Passwords Remotely To assign users a password perform the following: Change into the System on the Side Menu; 2. Select USER; 3. Choose a user to assign a password to from the list;...
- Page 14 TURING Vision Quick Start Guide – Smart Series Hardware Setup Syncing Time Remotely To sync the NVR time, perform the following: Select Auto Update ON; 2. Enter TIME.WINDOWS.COM into the NTP Server Address box; 3. Enter 123 into the NTP Port box.
- Page 15 TURING Vision Quick Start Guide – Smart Series Hardware Setup Setup Algorithms Remotely To utilize algorithms available for your NVR, perform the following: Select the SMART tab on the top menu; 2. Select camera from the pull-down menu; 3. Under Perimeter Protection select INTRUSION DETECTION and ENTER AREA.
- Page 16 TURING Vision Quick Start Guide – Smart Series Hardware Setup Setup Algorithms Remotely (cont.) 5. Draw four points around an object on the camera view; 6. Select the FINISH DRAWING icon; 7. Click the PEDESTRIAN snapshot; 8. Select save at the bottom to save the settings;...
- Page 17 TURING Vision Quick Start Guide – Smart Series Hardware Setup Tips for Using Algorithms When drawing detection zones around camera areas, be sure to outline similar areas with a similar shape to maintain accuracy and rule out false alarms. EXAMPLE OF POOR DRAWINGS Notice how the detection zones are very different - this condition may lead to false alarms.
- Page 18 TURING Vision Quick Start Guide – Smart Series Hardware Setup Setting up the Software Component Scan the QR code to view the Software User Guides: To add cameras to your account, follow instructions on Quick Start Guide (Mobile Version). To setup notification and alerts, follow instructions on Quick Start...
- Page 19 Privacy Policy: https://turingvideo.com/privacy-policy/ Term of Use: https://turingvideo.com/terms-of-use/ TURING is a trademark of Turing Video Turing Vision Quick Start Guide – Smart Series Hardware Setup V16 September 28, 2021 Copyright © 2021 Turing Video, Inc. (877) 730-8222...
