HARDKORR 135AH LiFePO4 Instruction Manual

Deep cycle battery
Hide thumbs

Advertisement

Quick Links

Download this manual
135AH LiFePO
DEEP CYCLE BATTERY
4
INSTRUCTION MANUAL
v1.5.0 - December 2021

Advertisement

loading

Related Manuals for HARDKORR 135AH LiFePO4

Summary of Contents for HARDKORR 135AH LiFePO4

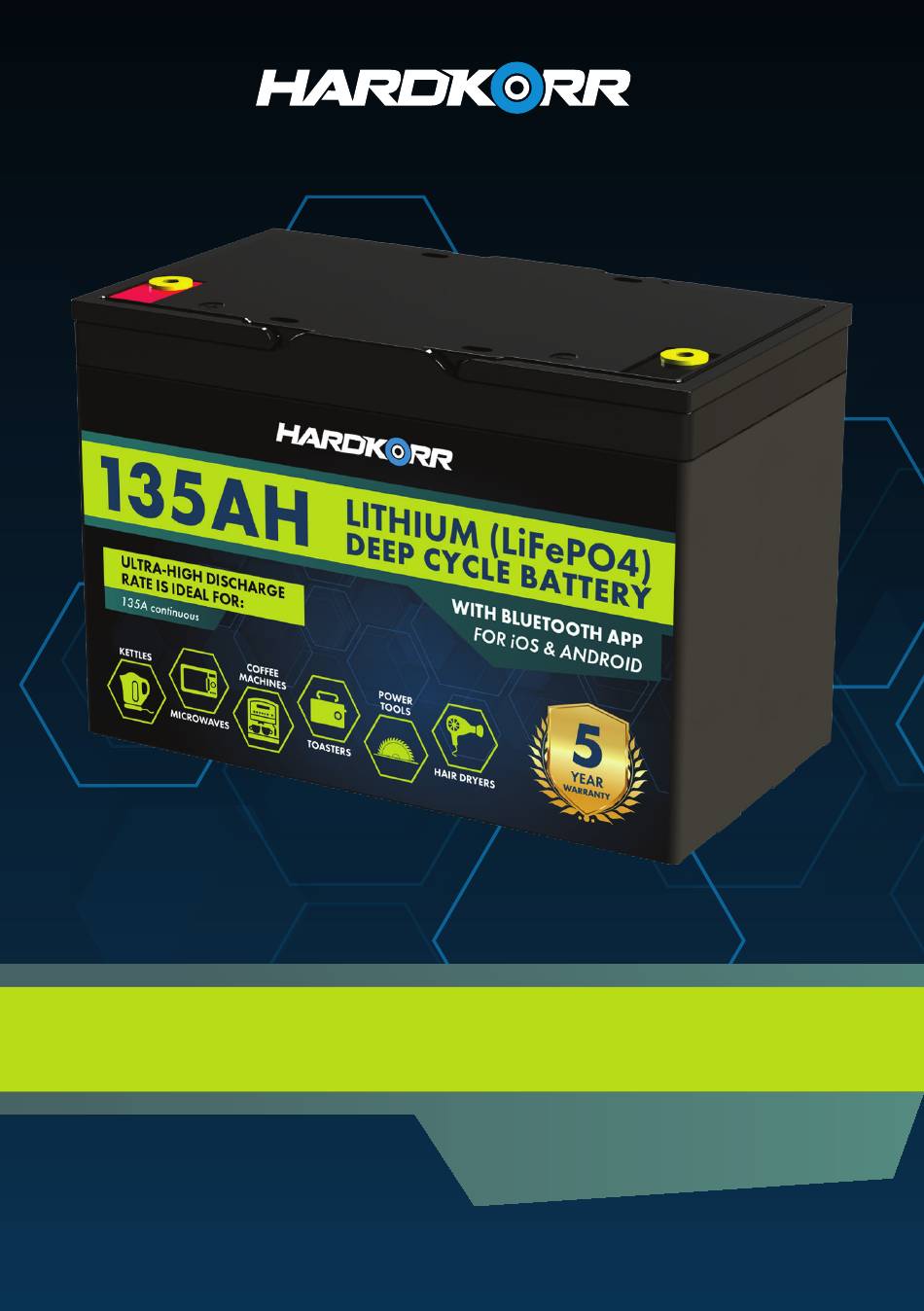

  • Page 1 135AH LiFePO DEEP CYCLE BATTERY INSTRUCTION MANUAL v1.5.0 - December 2021...

  • Page 2: Table Of Contents

    Our aim is for you to be completely satisfied with your purchase, and therefore your new Hardkorr product is backed by a comprehensive 5-year warranty and an outstanding after-sales customer service team. We hope you will enjoy using this product for many years to come.

  • Page 3: General Information And Safety

    Do not operate the battery or modify the installation unless you have read and understood this user manual. Pay particularly close attention to CAUTION and WARNING statements. Hardkorr recommends that the battery be installed by an appropriately qualified professional. DISCLAIMER While caution has been taken to ensure the accuracy of the contents of this guide, Hardkorr assumes no responsibility for errors or omissions.
  • Page 4 • If the battery emits any unusual smells, appears to be atypically hot, shows signs of distortion or displays any other abnormality during operation or storage, discontinue use immediately and contact Hardkorr for assistance.
  • Page 5 GENERAL INFORMATION AND SAFETY (CONT.) CAUTION The battery should not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been instructed on how to use the appliance by a person responsible for their safety.

  • Page 6: Contents And Specifications

    CONTENTS AND SPECIFICATIONS SPECIFICATIONS Nominal voltage 12.8V Capacity (C20) 135Ah Max series/parallel configurations 6S/6P Self-discharge <3% per month Cycle life 3000 cycles (100% DOD) / 6000 cycles (80% DOD) Normal charge voltage 14.4 ± 0.2V Standard charge current / fast charge current 27A / 67A Discharge cut-off voltage 10.0V...
  • Page 7 CONTENTS AND SPECIFICATIONS (CONT.) PACK CONTENTS 135Ah deep cycle LiFePO₄ battery with Bluetooth® Reset switch and cable...

  • Page 8: Setup And Storage

    SETUP AND STORAGE INSTALLATION Ensure that the area in which you will be performing installation of the battery is dry. Secure the battery firmly to the mounting surface, ensuring that no movement is possible even under significant force. You may install the battery in any orientation, including upside-down. Ensure that your proposed installation location will not cause the battery to be exposed to temperatures in excess of the maximums stipulated in the specifications table of this manual.
  • Page 9 SETUP AND STORAGE (CONT.) CONNECTION - GENERAL We recommend that no more than four cable lugs be connected directly to a battery terminal. If you do have more than 4 lugs, you should use a fuse block and negative busbar instead. Ensure the battery terminals are clean before connecting any cable lugs to them.
  • Page 10 SETUP AND STORAGE (CONT.) CONNECTION - MULTIPLE BATTERIES IN PARALLEL You may connect up to six (6) of these batteries in parallel. This will create a single system in which the total capacity is the sum of the capacities of the individual units and the nominal voltage is equivalent to the voltage of one unit e.g.
  • Page 11 SETUP AND STORAGE (CONT.) CONNECTION - MULTIPLE BATTERIES IN SERIES You may connect up to six (6) of these batteries in series. This will create a single system in which the nominal voltage is the sum of the voltages of the individual units and the system capacity is equivalent to the capacity of one unit e.g.
  • Page 12 SETUP AND STORAGE (CONT.) STORAGE, SHIPPING AND DISPOSAL Ensure that the battery is stored in a dry, clean, shaded and well-ventilated environment, at a temperature range that does not exceed the maximum storage temperature stipulated in the specifications table in this manual. Where possible, endeavour to store the battery at around 40-50% state of charge.

  • Page 13: Charging

    CHARGING CHARGE METHODS Lithium batteries need to be charged slightly different to other batteries, to ensure they live a long life and provide maximum capacity. There are several charging devices you can utilise, but whichever device you choose, it must have a lithium charge profile. Suitable devices include DC-DC chargers, solar panels (with regulator) and AC (mains power) chargers.
  • Page 14 CHARGING (CONT.) CHARGE METHODS: SOLAR PANEL WITH REGULATOR 12V solar panels harness the energy of the sun to charge your battery. There are many solar panel options on the market, but they can be split into two main categories: fixed and portable. Fixed solar panels usually have a rigid metal frame.

  • Page 15: Bms And Remote Reset Switch

    BMS AND REMOTE RESET SWITCH Your battery comes equipped with an integrated advanced Battery Management System (BMS). The BMS ensures there is an even energy balance between cells and allows up to six of these batteries to be connected in parallel or series. The BMS contains an intelligent protection circuit module which protects against overcharge, over-discharge, short-circuit and over-temperature, and can shut off power to the battery if required.

  • Page 16: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Q. Do I need a specific charger for my battery? A. Yes, you will need to ensure that the charging method that you choose is suitable for use with lithium batteries. Please refer to the “Charging” section of this manual for further details. Using a charging method other than those we stipulate may void your warranty.

  • Page 17: Bluetooth App

    BLUETOOTH APP DOWNLOADING THE APP Navigate to the App Store for iOS devices or the Google Play store for Android devices and search for “HK Battery”, or scan one of the QR codes below: CONNECTING YOUR BATTERY Check the side of your battery for a label which contains your battery’s device ID - it will start with “BT-HK”...
  • Page 18 BLUETOOTH APP (CONT.) NAVIGATION The information available in the app is broken up into four screens: KEY INFORMATION State of charge, current voltage, available capacity, status, health. DETAILED INFORMATION Current voltage, net current in/out, status, cycle life, temperature. CELL STATUS Current voltage of each individual cell to ensure they are balanced.
  • Page 19 BLUETOOTH APP (CONT.) KEY INFORMATION SCREEN Pair Battery BMS Protection Record State of Charge Real-time Battery Voltage Real-time Battery Capacity Battery Status Battery Health...
  • Page 20 BLUETOOTH APP (CONT.) DETAILED INFORMATION SCREEN Pair Battery BMS Protection Record Current Amps (A) Current Voltage (V) Battery Status Battery Cycles Real-time Temperature (°C)
  • Page 21 BLUETOOTH APP (CONT.) CELL STATUS SCREEN Pair Battery BMS Protection Record Individual Cell Voltage Disconnect Battery...

  • Page 22: Warranty

    We will also reimburse you for the shipping costs you incurred in sending the goods back to us. Any products that we choose to replace or refund become the property of Hardkorr. If we do not accept your claim, we will advise you of the reason and hold your product for collection.
  • Page 23 DISCONTINUED ITEMS Discontinued items that are still under warranty will be reviewed by Hardkorr. If a discontinued item is covered under warranty it may be replaced by an equivalent or superior item. If an equivalent item is not available Hardkorr will determine terms of resolution on a case-by-case basis.
  • Page 24 HARDKORR.COM...
