Dirtydog 4x4 J2TR07R1BK Installation Instructions

Thank you for purchasing a Dirtydog 4x4 trench barrier. Please
-
read these instructions fully to familiarize yourself with the
installation. This should only take about 10 minutes to install the
first time

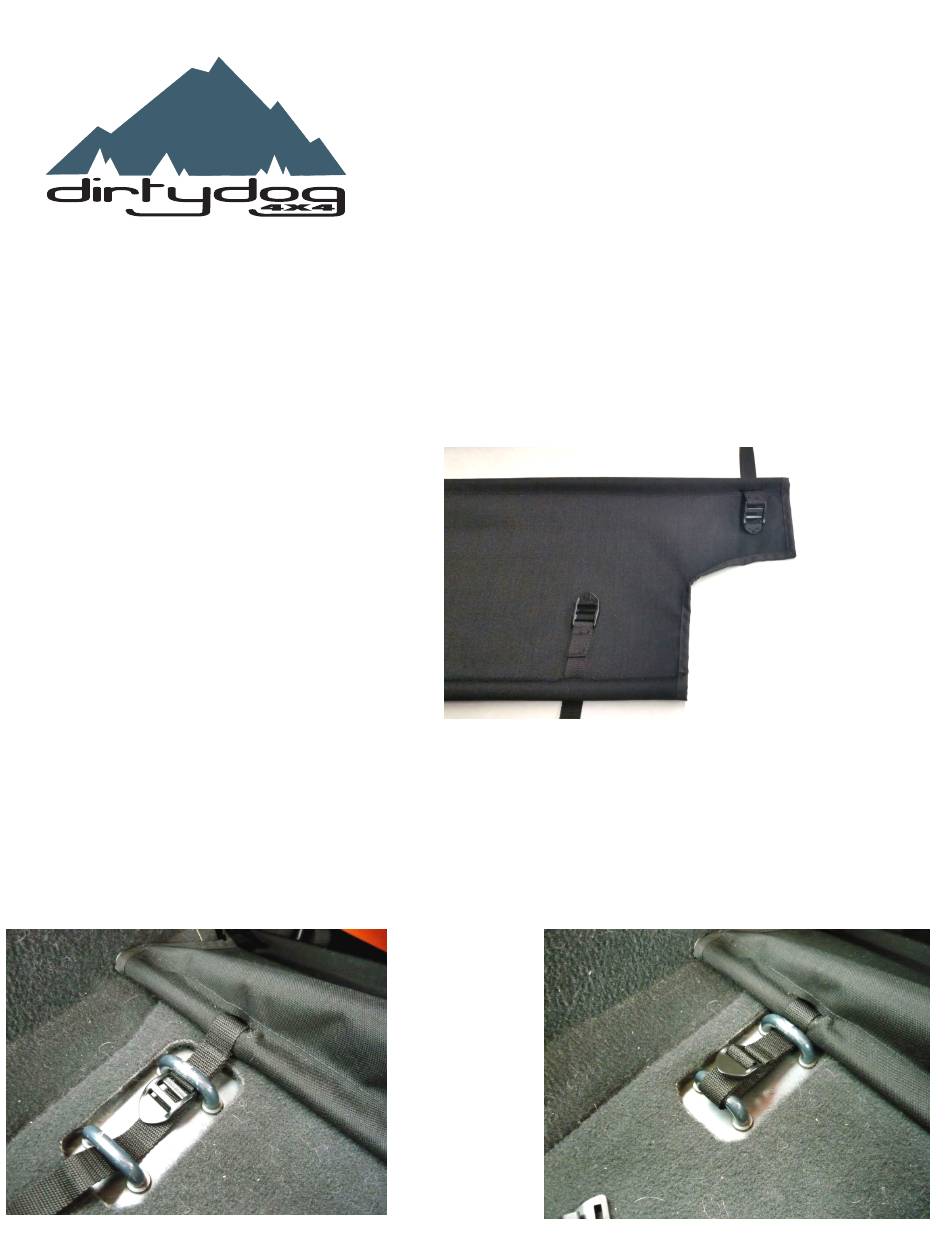

Slide the 4 straps
through the slits on the
front of the barrier as
shown
This barrier is designed to be used only when the rear seat is
removed. To install the barrier you must first remove the rear seat.
Place the bottom bar in front of the seat bracket. Be sure to slide
both sides of the strap uder the first loop of the floor bracket.
Continue to slide the bottom strap through the next loop and tighten
the strap down as shown. Do this step on both sides.
Installation Instructions
J2TR07R1BK
TRENCH BARRIER FOR
JK 2 DOOR 2007 -UP
