Dirtydog 4x4 DD-N-JK2-07R Installation Instructions

Thank you for purchasing a Dirtydog 4x4 netting system.
-
Please read these instructions fully to familiarize yourself

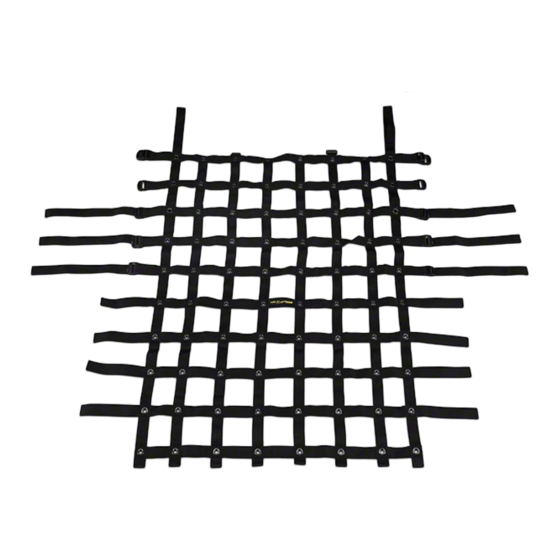

with the installation. You should have 3 main pieces.
Right side, left side, and backside. Set aside 60 minutes
for the first time you install your netting. Installation is
done easiest with the hard top removed. The soft top
can be opened or closed.
Start with either side.
There is a buckle
attached to one corner.
This buckle goes to the
bottom back corner.
Attach the first strap at
the top behind the front
seat. See photo for
positioning.
Attach the strap at the
back next. Continue with
the balance of the straps
on both roll bars adjusting
the straps evenly . The
bottom one with the
buckle attaches later on to
the rear. Do the same for
the opposite side.
Installation Instructions
Netting for JK 2 door 2007-up
DD-N-JK2-07R
J2NN07RC**
1
