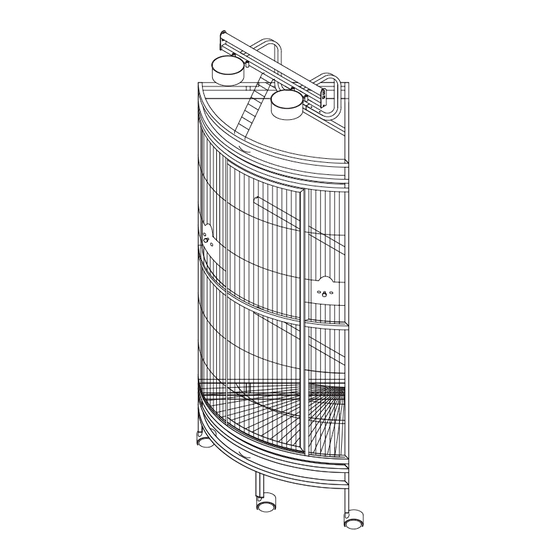

Liberta DISCOVERY Assembly Instructions

Parrot cage

You should have:

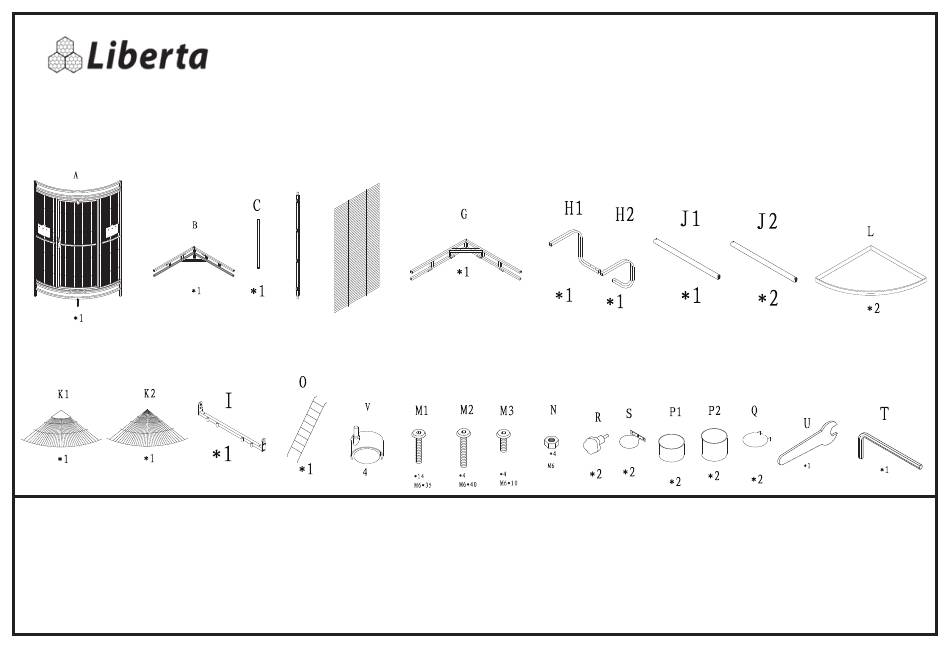

All Assembly parts of DISCOVERY Cage Shown for your reference

A. front wire mesh

B. stand frame

C. connect piece

D.back frame

E.left&right wire mesh

DISCOVERY

G. top frame

K1. bottom grill

H1.left u tube

K2. top grill

H2.right u tube

L. top&bottom tray

I.perch stand of top

M1 .screw (dia=6mm L=35mm)

J1. top Perch (length)

M2. screw (dia=6mm L=40mm)

J2. Perch (short)

M3.screw (dia=6mm L=10mm)

Assembly Instructions

N. Nut

O.ladder

P1.steel cup(small one)

P2.steel cup(big one)

T. wrench (screw all bolts)

It is recommended that two or three people assemble this cage

Q. cup holder on top

R.handle of feeder door

S. feeder cup holder

U. hexagon wrench

Table of Contents

Need help?

Do you have a question about the DISCOVERY and is the answer not in the manual?

Page 1 DISCOVERY Assembly Instructions You should have: All Assembly parts of DISCOVERY Cage Shown for your reference A. front wire mesh G. top frame K1. bottom grill N. Nut Q. cup holder on top B. stand frame H1.left u tube K2. top grill O.ladder...
Page 2 Step 2 Step 1 Insert D into the hole of B,and screw with M1(position as close-up); then put grill K1 onto B(as drawing), slide 2 of E into B along with chutes of A and D Screw C and B with M1(position as drawing);then connect B and A with 5 of M1 at...
Page 3 Step 3 Step 4 Fix H1 and H2 onto G with 4 of M2 and nut N; insert D into hole of G and screw by Connect I and H1&H2 with 2 of M1(as close-up); M1; put K2 and 2 of L into the screw the other drawing position end of G with 4 of...
Page 4 Step 5 Step 6 Insert Q into the holes of J,and put P1 on it; insert O into J and A as drawing; Put J1 on J. outer close-up Fix 2 of S onto the feeder door separately, then screw them with 4 of M3 and 2 of R (position as drawing).Put 2 of P2 on S;...
