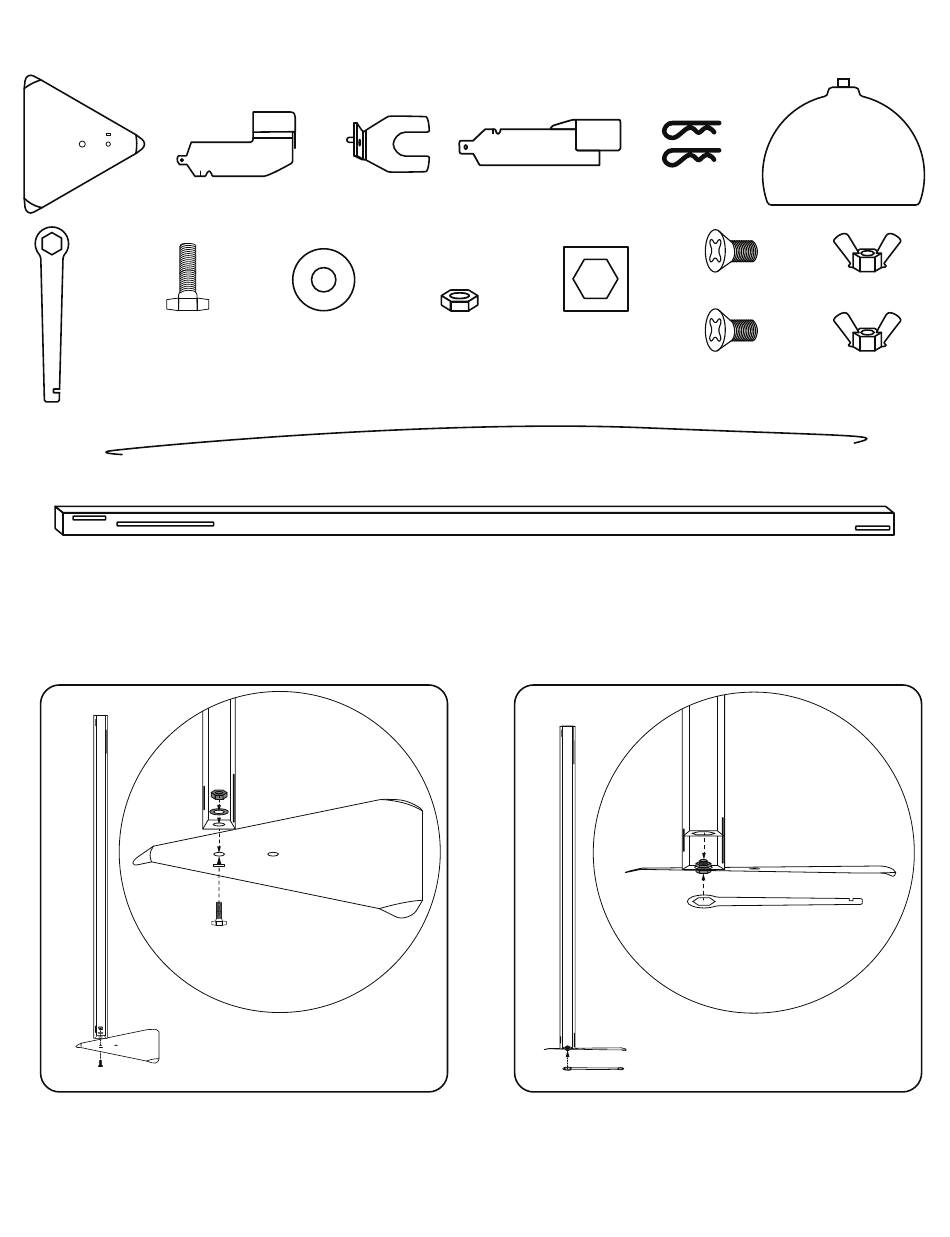

The following components
are included:
Foot pedal
Base Plate
(White)
Wrench
Large Bolt
For Base Plate
Step 1
- Attach Base Plate to Column with Large Bolt, Washer
and Nut.
- Make sure tips are facing down.
ASSEMBLY INSTRUCTIONS - ONE GALLON STAND
U clamp
Washer for
Nut
large bolt
Column
Also visit for instructional video:
www.steri-stand.com/assembly
Plunger Lever
Locking Pins x 2
Jig
Rod
Step 2
- Insert the Jig on top of nut.
- Wrench-tighten the bolt from below.
Shelf
Small screw x 2
Wingnut x 2
Advertisement
Table of Contents
Related Manuals for STERI STAND ONE GALLON STAND
Summary of Contents for STERI STAND ONE GALLON STAND
- Page 1 ASSEMBLY INSTRUCTIONS - ONE GALLON STAND Also visit for instructional video: The following components www.steri-stand.com/assembly are included: Plunger Lever Shelf Foot pedal Base Plate (White) U clamp Locking Pins x 2 Small screw x 2 Wingnut x 2 Wrench Washer for...
- Page 2 Step 3 Step 4 Insert Plunger lever through top right slot and lock Insert Rod and Hook onto top notch in lever . with pin. Step 5 Step 6 - PART 1 1. Attach U Clamp with screw hole down - insert screw.
- Page 3 Step 6 Step 7 1. Attach shelf with screw and wing nut (screw hole facing down) 2. Lift the shelf to meet the bottom of the bottle 3. Tighten Wingnut Step 8 Using the notch on the supplied wrench, bend the tab on both the plunger lever (top) and the foot pedal (bottom), securing the rod on both sides.
