Step 1
- Attach Base Plate to Column with Bolt, Washer
and Nut (using key hole slot)
- Ensure tips of base plate face down

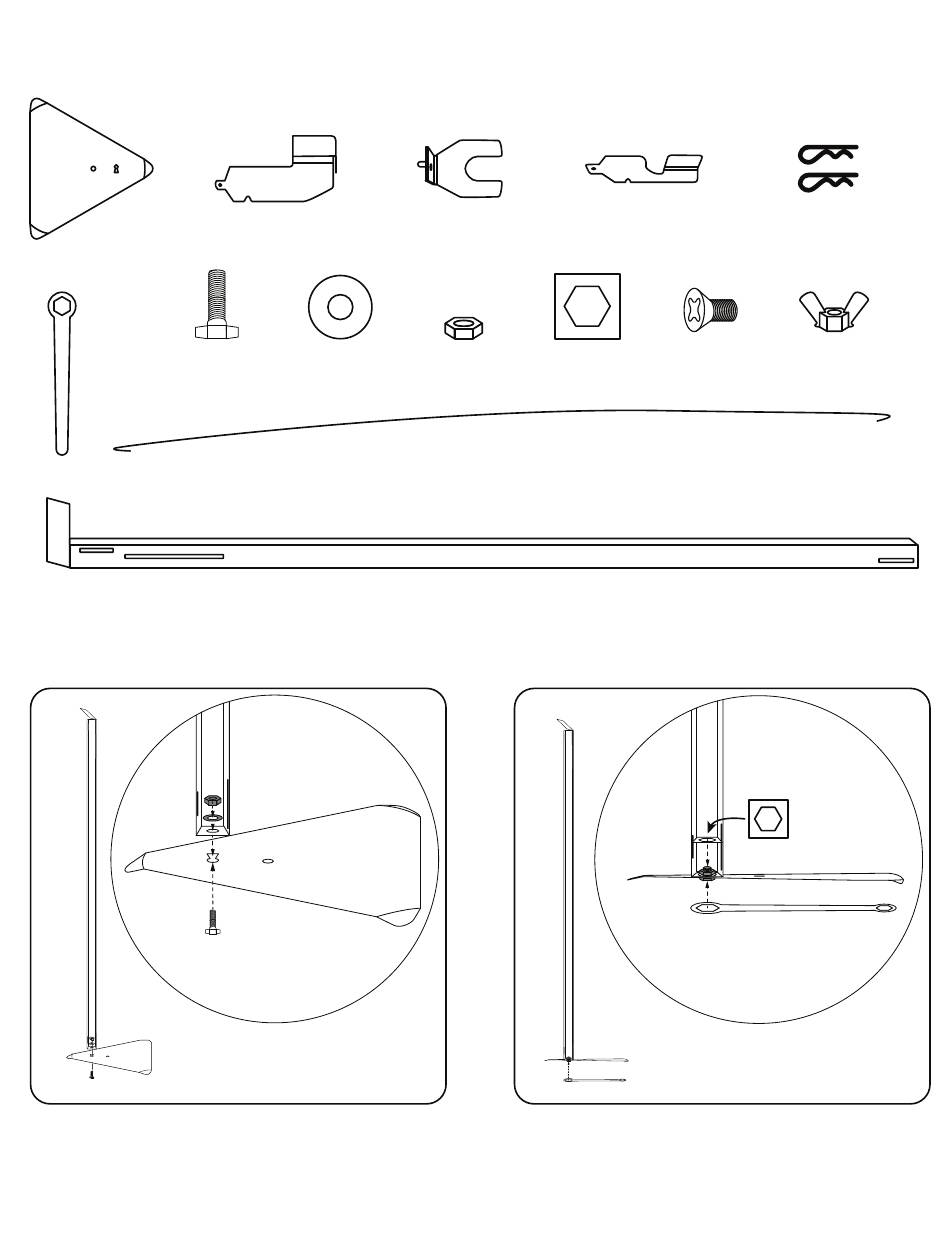

ASSEMBLY INSTRUCTIONS - ONE LITER STAND
Also visit for instructional video:
www.steri-stand.com/assembly
The following components are included:
Foot pedal
Washer
Column
Plunger Lever
U clamp
Jig
Nut
Rod
Step 2
- Insert Jig on Nut.
- Wrench-tighten Bolt from below.
Pins x 2
Wingnut
Screw
Advertisement
Table of Contents
Related Manuals for STERI STAND Steri Stand
Summary of Contents for STERI STAND Steri Stand
- Page 1 ASSEMBLY INSTRUCTIONS - ONE LITER STAND Also visit for instructional video: Assembly time: 5 mins www.steri-stand.com/assembly All Tools included. The following components are included: Base plate Foot pedal Plunger Lever U clamp Pins x 2 Wingnut Bolt Screw Washer Wrench Column Step 1 Step 2...
- Page 2 Step 3 Step 4 - Insert Rod from the top of column - Insert Plunger lever through top right slot - Hook onto notch in plunger lever. - Lock with Pin. Step 5 Step 6 1. Attach U Clamp with screw hole down - insert screw. Lightly screw Wing-nut to hold U Clamp.
