Summary of Contents for YSL SC-5-CFS

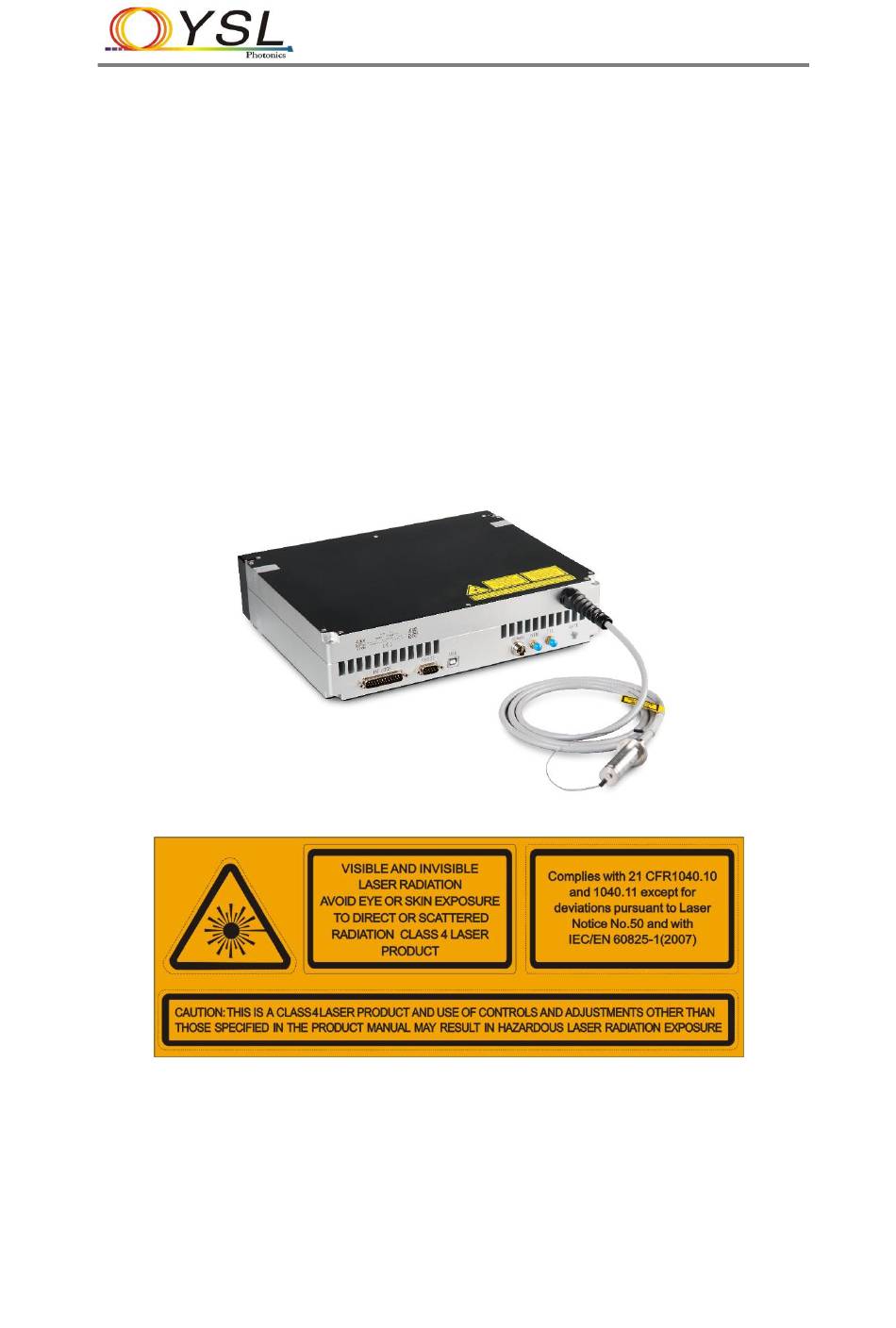

- Page 1 E-mail：sales@yslphotonics.com Tel：027-87204039 Supercontinuum Sources SC-5-CFS Instruction Manual Read this instruction manual carefully before operating the equipment...
-
Page 2: Table Of Contents
E-mail：sales@yslphotonics.com Tel：027-87204039 Content Content …………………………………………………………………………………..…..-1- Product Overview ................- 2 - A. Introduction ........................ - 2 - B. Basic configuration ....................- 2 - C. Dimension (L*W*H) ....................- 3 - Product Operation ................- 3 - A. Unpacking and packing demonstration ..............- 3 - B. -
Page 3: Product Overview
OCT and other areas. The system is based on self-designed highly reliable seed laser offering unique reliability and performance. SC-5-CFS can replace the traditional ASE, SLD and Lamp systems in many applications. -
Page 4: Dimension (L*W*H)
E-mail：sales@yslphotonics.com Tel：027-87204039 Right angle post clamp （1） （1） Bluetooth USB cable （1） USB disc （1） Instruction manual （1） Test report （1） Sponge （1） （1） C. Dimension (L*W*H) 300*245*70 mm Product Operation A. Unpacking and packing demonstration Cables Output Fiber Fittings of a Machine - 3 -... -
Page 5: Front Panel's Function
E-mail：sales@yslphotonics.com Tel：027-87204039 Machine B. Front panel’s function Power Interface Output Interlock Bluetooth a) Interlock : Connect the Interlock (as following) when use the Laser; b) USB: Connect the computer to control the Laser; c) Bluetooth: To connect the Mobile equipment to control the Laser; d) Power Interface: Connect the Power Adapter;... -
Page 6: Software Setting
E-mail：sales@yslphotonics.com Tel：027-87204039 A. Software setting Before the operation, you should install the Laser USB driver, connect the Power Adapter and the Interlock and make sure the USB cable communicated well. a) Open the software as follow; b) You could see the operational window. B. -
Page 7: Switch Off The Laser
Bluetooth Control A. Software setting Bluetooth Control APP： Find the “YSL-APP.apk” in the UBS disk, install in your mobile or pad; Download APP in this website： http://www.yslphotonics.com/info.asp?classid=40 Or scan the two-dimensional code to download the APP:... -
Page 8: Bluetooth Connect
E-mail：sales@yslphotonics.com Tel：027-87204039 B. Bluetooth Connect Connect the Bluetooth, enter the password:1234, the Open the software as follow; You could see the operational window. C. Switch on the Laser Take off the protection cap of output fiber; Replied “Laser on”; Click the “On/OFF”, Input Power from 0% →30%→50% →80%→100% gradually D. -
Page 9: Daily Maintenance And Storage
E-mail：sales@yslphotonics.com Tel：027-87204039 Take on the protection cap of output fiber; Please disconnect the Power Adapter and Interlock while it’s in idle state for a long time. Failure Alarm Alarm description: Error 1-5: circuit module alarm Error 6: frequency alarm Error 7: temperature alarm Error 8: InterLock alarm Contact us immediately when the following happens: Product Parameters... -
Page 10: Safety Considerations
E-mail：sales@yslphotonics.com Tel：027-87204039 water. B. Storage conditions Temperature: 25 ℃ (± 20 ℃), humidity: 60% or less. C. Operation condition Temperature: 25 ℃ (± 5 ℃), humidity: 60% or less. Safety considerations a) Strong reflected laser beam back into the SC output may damage the SC;... -
Page 11: Contact Address
E-mail：sales@yslphotonics.com Tel：027-87204039 k) Don’t shoot the laser light to the glass since the normal glass with about 4% reflectivity and reflect light back to your eyes to cause harm; l) Please take off your watch when you use the laser in case the watch surface reflecting light into your eyes;...
