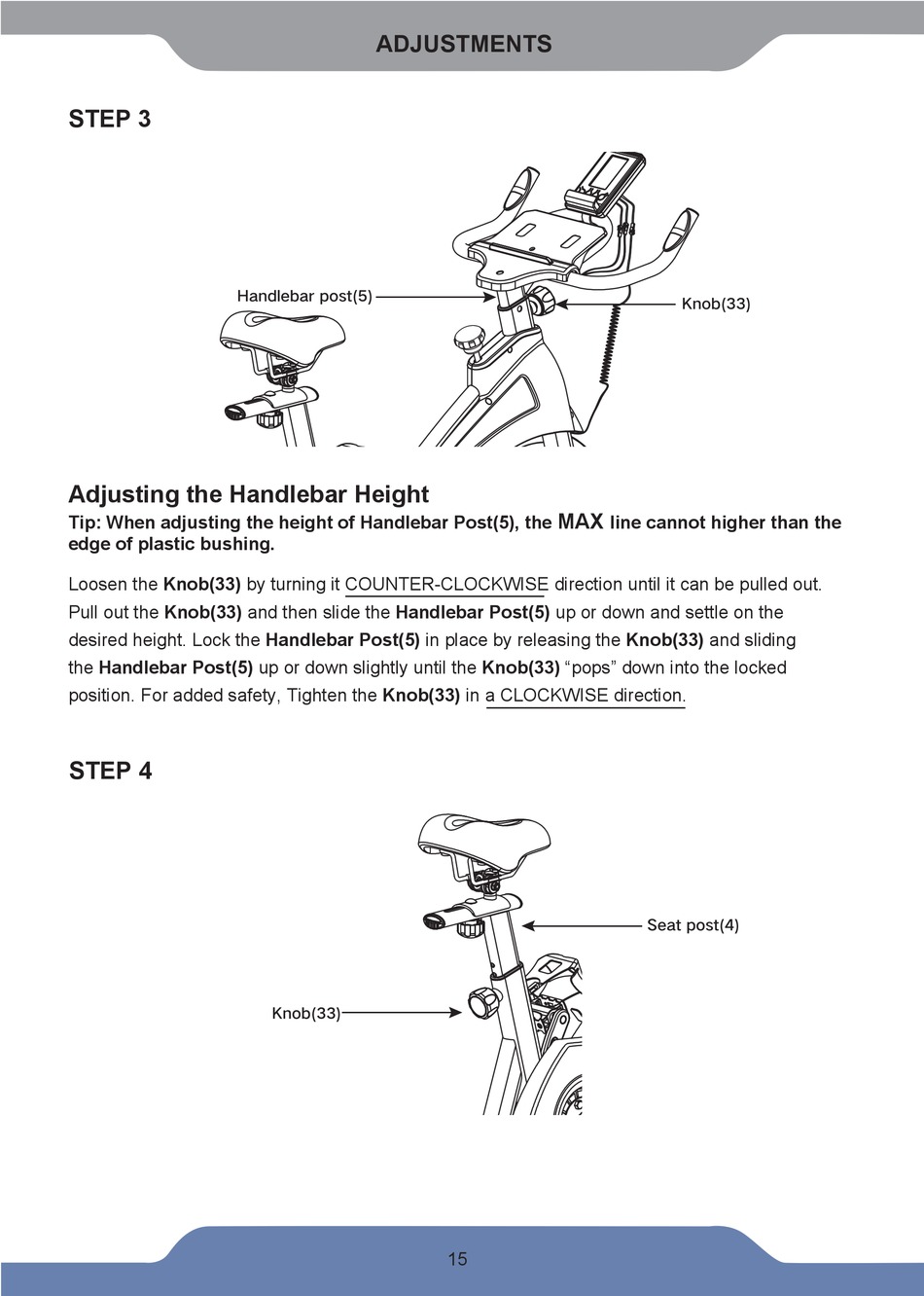

snode SNODE8731B Owner's Manual page 18

ADJUSTMENTS
STEP 3
Iboemfcbs!qptu)6*!
Lopc)44*
Adjusting the Handlebar Height
MAX
Tip: When adjusting the height of Handlebar Post(5), the line cannot higher than the
edge of plastic bushing.
Loosen the Knob(33) by turning it COUNTER-CLOCKWISE direction until it can be pulled out.
Pull out the Knob(33) and then slide the Handlebar Post(5) up or down and settle on the
desired height. Lock the Handlebar Post(5) in place by releasing the Knob(33) and sliding
the Handlebar Post(5) up or down slightly until the Knob(33) "pops" down into the locked
position. For added safety, Tighten the Knob(33) in a CLOCKWISE direction.
STEP 4
Tfbu!qptu)5*!!
Lopc)44*!
15
