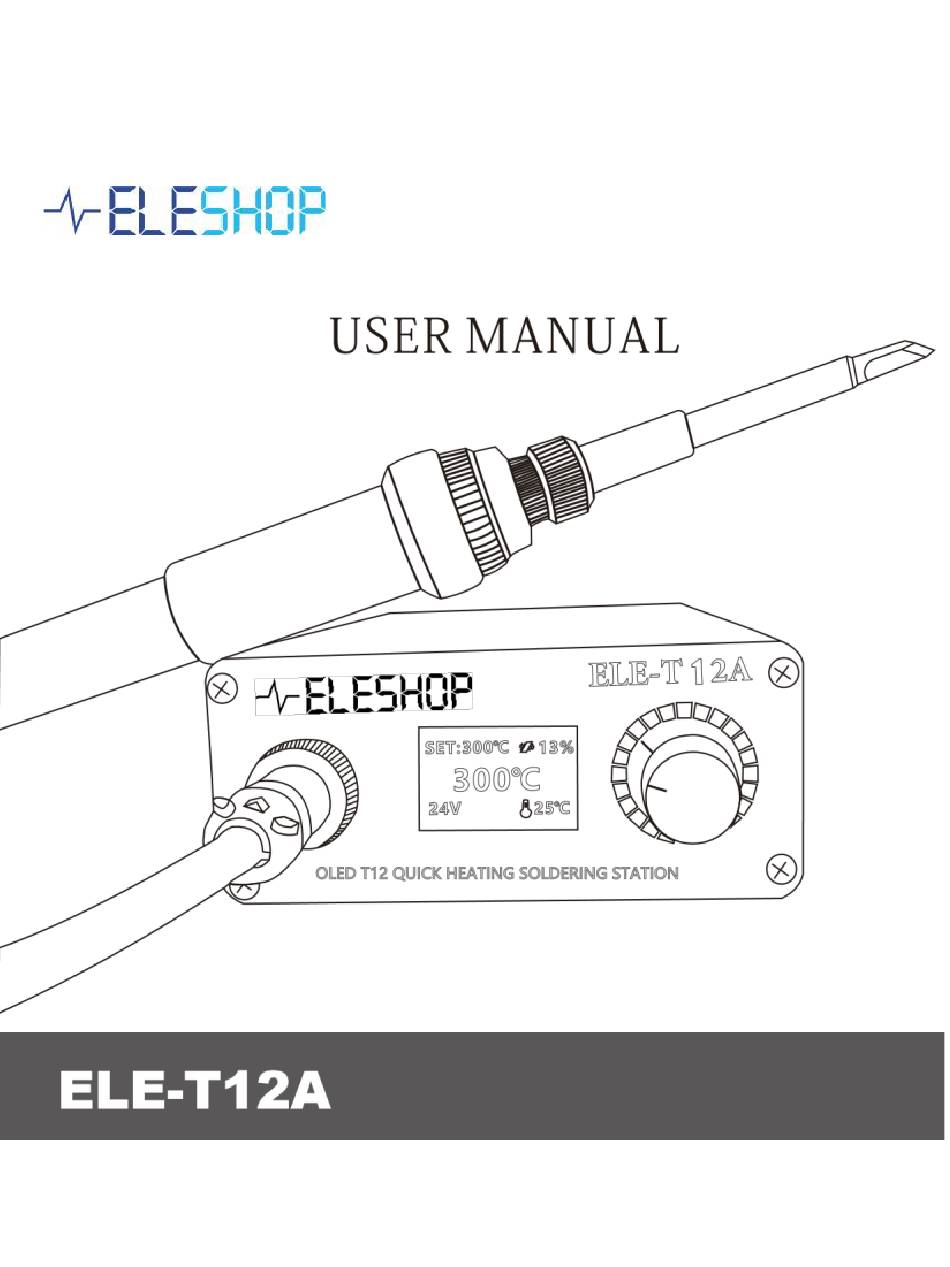

- Page 1 ELE-T12A OLED DIGITAL SOLDERING STATION...
-
Page 2: Operating Environment
Conventional safety Please use only the power adapter that is dedicated to the product and is certified by the country / area. Do not operate in a wet environment. Do not operate in a flammable and explosive environment. Please keep the surface of the product clean and dry. - Page 3 Important When using the T12 iron tip please tighten the nut to avoid damage to the tip. The temperature will reach above 350 of the soldering tip if station is used for 40 minutes, and the temperature on the end of the handle will reach 50-60 degrees.
-
Page 4: Parts List
Parts list... - Page 5 1、 T12-907 Handle 2、 Socket of iron tip 3、 Locking nut for iron tip 4、 Lock tube for iron tip 5、 Head of iron tip 6、 Aviation Plug of handle 7、 OLED temperature display 8、 Encoder 9、 Nozzle tip...
- Page 6 Overview Vibration sensor The current set temperature Power usage Handle SET:300 ℃ interface 13 % Front 300 ℃ 2 4 V 2 5 ℃ Current voltage nside temperature of Current working the machine temperature Switch Back Power cord connector Fuse...
-
Page 7: Product Parameter
Product parameter Model number ELE-T12A Display OLED Handle interface GX12-4pins Standard 510g Product weight Dimension of host 88x41x38 mm Wire length of handle 1.1 m T12 series Application iron tip Working parameter <8 S Time of melt tin Max power... - Page 8 If the display screen shows ERROR, this could indicate tip may not be well installed, please try to install the iron tip again and press it in completely. Description for display T12 SOLDERING IRON STATION Normal One press power off Initial state of Non plugged iron tip...
-
Page 9: Temperature Calibration
the soldering iron tip, it is recommended that the temperature is not set higher than 380 degrees. Menu use Enter the menu setting interface: under the normal working temperature interface, long press the encoder button (about 3s). Enter the host setup mode! Exit menu settings interface: at the menu setting interface, long press the encoder button (about 3s), exit the host setup mode! Setting menu:... - Page 10 After selecting the temperature calibration function, short press the encoder to enter the temperature calibration setting, the adjustable temperature ratio: 70%-130%, if there is no professional measurement instrument, please set the ratio value to 100%.
-
Page 11: Power Off Time
Choosing sleeping time feature, short press encoder, into the sleeping time setting, the time setting range: 0-99 minutes, if you don't need the sleeping time function, the dormancy feature can be set to OFF. Default sleeping time for 1 minute, means after 1 minute the host and handle is stand still, the soldering station will entry to dormant state, the temperature of soldering iron tip will ℃... - Page 12 You can set the power off time according as the usage scenario and working habit, it can be extended the working life of the soldering iron tip! Boost duration boost duration. The time setting range: 0-99 minutes. The default time is 30 seconds, it can be set according as the actual needs, after setting, short press the encoder to confirm and exit.
-
Page 13: Buzzer Switch
return to original temperature. This can avoid soldering iron tip oxidation when with high temperature to use! After selecting the wake-up function, short press the encoder, enter setting of wake-up type, the system provides two kinds of wake-up type: encoder together with handle or just encoder. -
Page 14: Version Information
Battery guard soldering station, and the default voltage is 12V. When the voltage is not stable, the power supply will be supercharged according to the setting. Usually don't need to set it. The setting range is 12V-24V. Version information It shows the information of this version controller. Restore default Restore the parameters of the soldering station to the factory default. - Page 15 How to choose the iron tip Note: Choosing the right iron tip can make the work more efficient.
- Page 16 Iron tips maintenance 1.Please put appropriate tin on the adhering head of iron tip before powering off , and please clean it before soldering. 2.Do not allow the iron tip to stay at high temperature for a long time to avoid dry burning. 3.In welding, do not rub the soldering tip with too much pressure to friction the solder, which will damage the iron head.
- Page 17 About Discarding Do not discard in family garbage! Handling and recycling: you have to deal with the iron correctly according to local laws and regulations. FAQ： 1. Why the temperature of the new T12 solder tip is jump? Because the inside heating core of the new T12 solder tip did not go through the high temperature, so the first time to use will be a bit of temperature, generally without special treatment, the normal use of 1-2 days after the basic will not bounce.
- Page 18 tip of the oxidation of debris, on the tin after the shutdown power off! d. Standard operation: Do not violent collision the solder tip, do not stamp the top of the hard objects, but can not be used to hot plastic and other materials, specifically reminded that friends like tin should avoid the iron and other hard metal knock tin, the heating core of T12 is in the head of the solder tip, often percussion is a fatal damage to T12! e.
- Page 19 Made in China...
