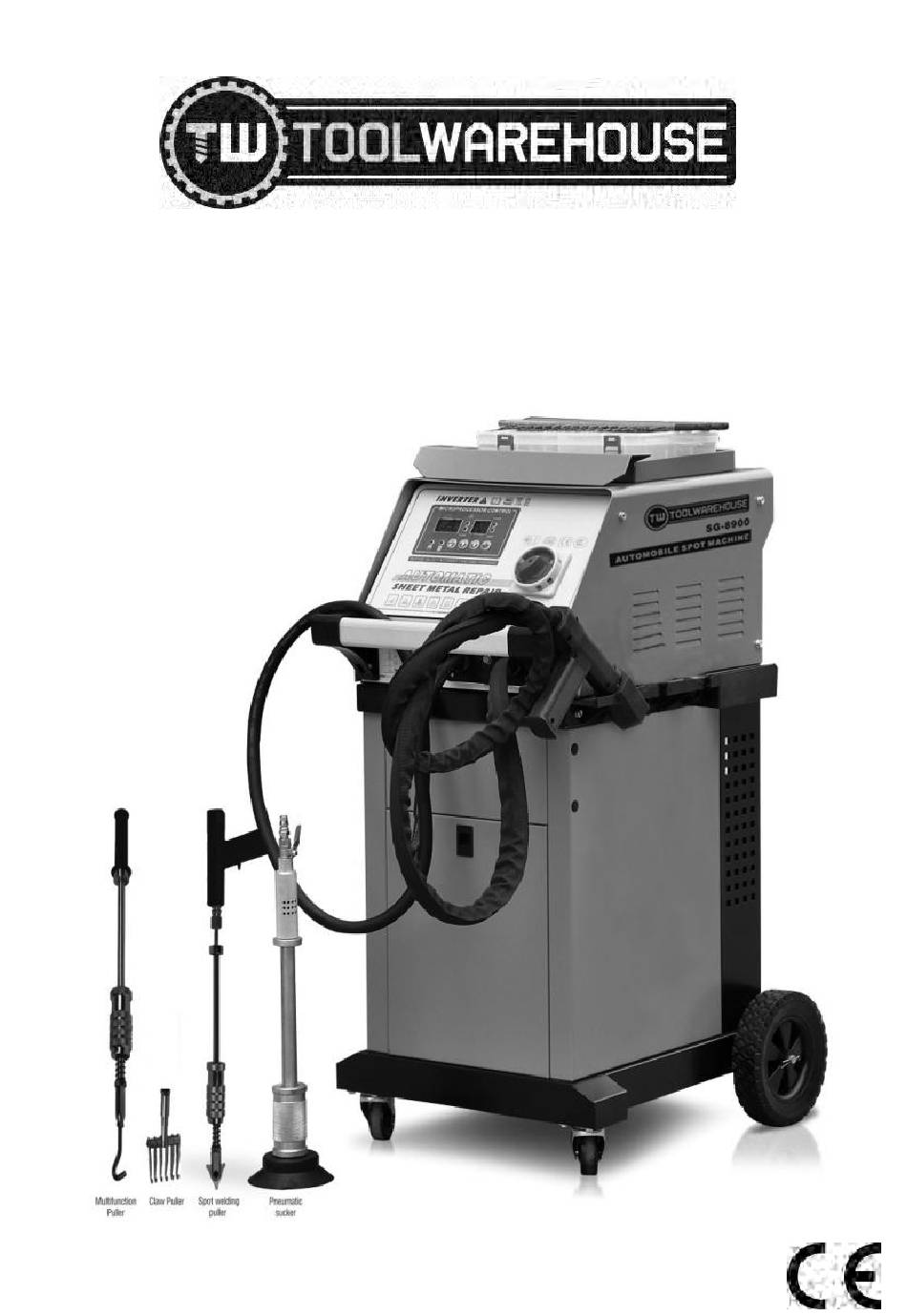

- Page 1 AUTOMOBILE SPOT MACHINE SG-8900...
-
Page 2: Technical Data
1. Technical Data SG-8900 Model Input Voltage 220V Frequency 50HZ Max Output Power（KVA） Instantaneous output current ( A ) 200-8900 output voltage ( V ) 2.5-11.5 Operation mode Auto Automatic Working Time 0.1-2.5 S One-side welding（mm） 0.6-1.2mm Main machine （mm）... -
Page 3: Installation
2. Installation 1. Open the package to get the operation manual. 2. Check the type and quantity of the accessories of the machine according to the packing list. 3.According to the shape of the machine, Finish the machine to install, and adhere to the machine whether there are other problems, if any problem, please consult the dealer or service department to solve... -
Page 4: Input Power Connection
3. Input power connection 1. Input power wire(Not less than 6 square mm copper cable) 2. Fuse 3. Connect with input power 4. Ground wire ·The input power connection should be in accordance with the standard and operated by qualified personnel. ·Disconnect the power connection before this operation. -
Page 5: Operation
4.Operation ① Operation panel indicator 1.Current digial display 2. Time display 3 Operate tools choose 4.on /off switch Notice!!! 7 gear is the smallest current,when you starting to welding ,please adjust the samllest gear,if not enough,then adjust to 1 , 2, 3 or more. DON’T when starting to weld adjust big current!!!! - Page 6 ② Welding torch and connector 1.The turn of the screw 2.The torch switch Function Number Remark Wave welding repair F010 Washer welding repair F011 Carbon Rod repair F019 One-side welding repair F018 Triangle washer repair F015...
-
Page 7: Working Method
5.Working Method 1. One-side welding Connect spot welding head with welding torch and lock Earth clamp Choose the operation mode Put the welding torch on the workpiece with light Adjust time pressure Note: 1. Please test on other workpiece before this operation, in order to avoid any damage to auto body surface due to over ranged current or operating duration. - Page 8 A Round Washer welding Install welding head with washer Adjust time on welding torch and locked Put the welding torch on the workpiece with Choose the operation light pressure mode Remove the welding torch, connect pulling hammer with washer, and fix the sunken surface. Note: 1.
- Page 9 B Triangle washer Install pulling hammer with a triangle washer on the torch and lock Choose the Put the welding torch on the Adjust time operation mode dent area and start welding Pull the dent area with hammer Note: 1. Please test on other workpiece before this operation, in order to avoid any damage to auto body surface due to over ranged current or operating duration.
- Page 10 Carbon rod heating Install carbon rod with connection head on welding torch and lock Adjust time Heat the body around bump Choose the area in one-way direction as operation mode circle with carbon rod Cool down the heated area with cool water, and make it recover.
- Page 11 Waveform welding Install waveline welding head on welding gun and lock Adjust time Put the waveline at the center of Choose the operation mode dent area and start welding Put the pulling hammer on waveline with multi-claws hooker and pull the dent.
