Owner's Manual
Assembly Instructions
Garden Shed
9820007
If you have any problems with this product, DO NOT RETURN IT TO THE STORE.
CALL OUR CUSTOMER SERVICE HOT-LINE AT 1-877-397-5144.
8AM-5PM (EST) Monday-Thursday, 8AM-4PM (EST) Friday
Overall Size: (D) 2.9 ft. (35 in.) (89 cm)
(W) 5 ft. (60.2 in.) (153 cm)
(H) 5.8 ft. (70.1 in.) (178 cm)
6
Requires two competent persons and at least 6 hours for assembly

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9820007 and is the answer not in the manual?

Questions and answers

Related Manuals for Hanover 9820007

Summary of Contents for Hanover 9820007

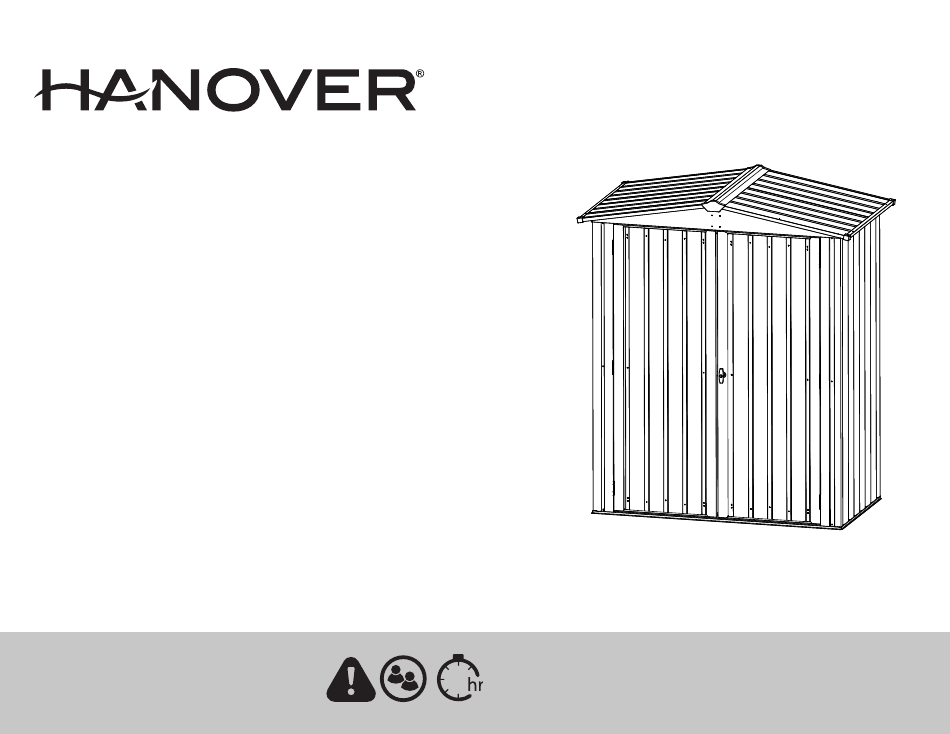

  • Page 1 Owner’s Manual Assembly Instructions Garden Shed 9820007 If you have any problems with this product, DO NOT RETURN IT TO THE STORE. CALL OUR CUSTOMER SERVICE HOT-LINE AT 1-877-397-5144. 8AM-5PM (EST) Monday-Thursday, 8AM-4PM (EST) Friday Overall Size: (D) 2.9 ft. (35 in.) (89 cm) Requires two competent persons and at least 6 hours for assembly (W) 5 ft.

  • Page 2: Before You Start

    BEFORE YOU START GENERAL INFORMATION SYMBOLS TOOLS REQUIRED Important safety information and helpful tips (NOT INCLUDED) Read this user/assembly manual are highlighted as below. DANGER Wear eye protection Indicates a hazardous situation which, if not avoided, will result in death or serious injury. Wear protective clothing Wear heavy duty protective Ø1/5"...

  • Page 3: Important Safeguards

    BEFORE YOU START IMPORTANT SAFEGUARDS BEFORE ASSEMBLY CAUTION - Risk of Injury! Read these instructions carefully and DANGER - Risk of Suffocation! retain them for future use. If this Two competent product is passed to a third party, then Keep any packaging materials away from persons are required these instructions must be included.
  • Page 4 BEFORE YOU START Notice Refer to minimum space requirements below: > 5.35 ft. (64.2 in.) (163 cm) • Select a location that allows sufficient working space around the product. Base Foundation • Make sure the location is firm and level 5 ft.

  • Page 5: Cleaning And Maintenance

    BEFORE YOU START ASSEMBLY INSTRUCTIONS DISPOSAL • To eliminate mildew, soak a cloth in white vinegar and scrub the mold and mildew • Review all instructions before starting away. Dispose of the product according assembly. to local regulations. If in doubt, •...

  • Page 6: Exploded View

    EXPLODED VIEW 29-1 29-1 29-1 29-1...

  • Page 7: Parts List

    PARTS LIST Part Qty. 30.15" (766 mm) 34.5" (876 mm) 29.6" (752 mm) 63.99" (1600 mm) 54.9" (1394 mm) 29.92" (760 mm) 63.99" (1600 mm) 54.9" (1394 mm) 22.51" (572 mm) 29.92" (760 mm) 62.3" (1583 mm) 30.15" (766 mm) 62.3"...
  • Page 8 PARTS LIST Notice • Both drill driver and screwdriver are suitable for assembly. Use of a drill driver is recommended. 62.28" (1582 mm) • Set the torque on a drill driver to #3 or #4 to ensure the screws do not strip the metal reinforcements.
  • Page 9 ASSEMBLY Part Qty. Part Qty. Base Frame Assembly Base Frame Assembly Lay 1, 2 and 3 on a suitable base foundation (not Attach J1 to the corners of the base frame. Secure each included). Secure each corner with 2 screws F1. with 4 screws F1.
  • Page 10 ASSEMBLY Anchoring to Concrete Base Anchoring to Wooden Base Mark the positions of the screw holes on the base foundation. Drill the holes and insert the sleeve Mark the positions of the screw holes on the base foundation. Drill the pilot holes and secure the anchor (not included).
  • Page 11 ASSEMBLY Checking the Base Frame Measure the diagonals of the base frame to ensure that diagonals are equal in length or within 3/16" (5 mm). Use a spirit level to ensure that the base frame is level. Part Qty. Rear Panels Assembly Part Qty.
  • Page 12 ASSEMBLY Part Qty. Part Qty. Front Left Panel Assembly Rear Left Panel Assembly Secure P4 to the base frame using 4 screws F1 and Secure P4 to the base frame using 4 screws F1 and 4 4 washers S3. washers S3. Secure P4 to the rear left panel using 1 set of bolt/nut Secure P4 to P1 using 1 set of bolt/nut F2 and 1 washer F2 and 1 washer S3.
  • Page 13 ASSEMBLY Part Qty. Door Posts Assembly Part Qty. Slide 4L along front panel P4 so that it fits into the base Front Right Panel Assembly frame. Secure P4 to the base frame using 4 screws F1 and Secure 4L to the base frame using 2 screws F1 and 4 washers S3.
  • Page 14 ASSEMBLY Part Qty. Front Triangle Panel Assembly Part Qty. Place Q on top of the side panels. Upper Beams Assembly Slightly push the bottom plate of Q so that it can be Secure 9 to the top of the side panels each using slided into the slot under the upper beams.
  • Page 15 ASSEMBLY Part Qty. Part Qty. Front Triangle Panel Assembly Front Triangle Panel Assembly Bend the tabs at the ends of Q towards the upper beams 9. Secure Q to each door post from the back using 2 screws F1. Secure Q to each upper beam using 1 screw F1 and 1 washer S3.
  • Page 16 ASSEMBLY Part Qty. Rear Triangle Panel Assembly Part Qty. Place H on top of the side panels. Tools Hooks Assembly Slightly push the bottom plate of H so that it can be slided into the slot under the upper beams. Hang GJ on the top edge of a desired rear panel.
  • Page 17 ASSEMBLY Part Qty. Part Qty. Rear Triangle Panel Assembly Roof Beam Assembly Bend the tabs at the ends of H towards the upper beams 9. Connect 2 roof beams 13 and secure them using 4 screws F1. Secure H to each upper beam using 1 screw F1 and 1 washer S3.
  • Page 18 ASSEMBLY Part Qty. Roof Beam Assembly Attach one support B1 to each end of the assembled Part Qty. roof beam. Move it towards the corresponding triangle panel so that the screw holes are aligned. Front Roof Panels Assembly Secure each support B1 to the corresponding roof Secure each P5 and P6 to the top of the shade using beam using 2 screws F1.
  • Page 19 ASSEMBLY Part Qty. Part Qty. Rear Roof Panels Assembly Ridge Caps Assembly Secure another set of P5 and P6 each using 7 screws F1 Place ridge caps 20, 17L, and 17R on the roof panels. and 7 washers S3. Secure all parts using 4 screws F1.
  • Page 20 ASSEMBLY Part Qty. Roof Finials Assembly Secure each finial GE to end of the ridge cap using 1 screw F1. 29-1 Part Qty. Ridge Caps and Corner Ends Assembly Part Qty. Door Connectors Assembly Secure GC to both ends of of ridge caps 15 each using 1 screw F1.
  • Page 21 ASSEMBLY Part Qty. Part Qty. Left Door Panel Assembly Left Door Panel Assembly Secure 31 and 32 to D1 each using 1 set of bolt/nut F2 and 1 washer S3. Further secure each door connector using 6 screws F1. Turn upside down Part Qty.
  • Page 22 ASSEMBLY Part Qty. Part Qty. Cross Brace Assembly Right Door Panel Assembly Further secure each door connector using 4 screws F1. Secure 2 door connectors to the right door panel each Secure 40 and 41 to the left door panel each using using 1 set of bolt/nut F2 and 1 washer S3.
  • Page 23 ASSEMBLY Turn upside down Part Qty. Right Door Latches Assembly Turn the right door panel upside down. Secure 3 latches B6 to the right door panel each using 2 sets of bolt/nut Part Qty. Part Qty. Door Panels Assembly Cross Brace Assembly Further secure each door connector using 4 screws F1.
  • Page 24 ASSEMBLY 5 4 3 2 CAUTION! This side up. Part Qty. Part Qty. Door Lock Assembly Door Latch Assembly Disassemble the lock GB using a screwdriver. Secure H2 to the left door panel each using 4 screws Secure the knob (1) to the right door panel using the washer (2), spring washer (3) and nut (4).
  • Page 25 ASSEMBLY Part Qty. Part Qty. Door Lock Assembly Placing Screw Caps For protection, cover each screw F1 and bolt F2 thread Install the latch (5) on the lock and secure using the using screw caps S2. screw (6). Test if the lock operates properly.
  • Page 26 ASSEMBLY Part Qty. Assembling the stabilizer bar For stabilizing the shed, slide the stabilizer bar W1 into the slots on the two base bars 1.
