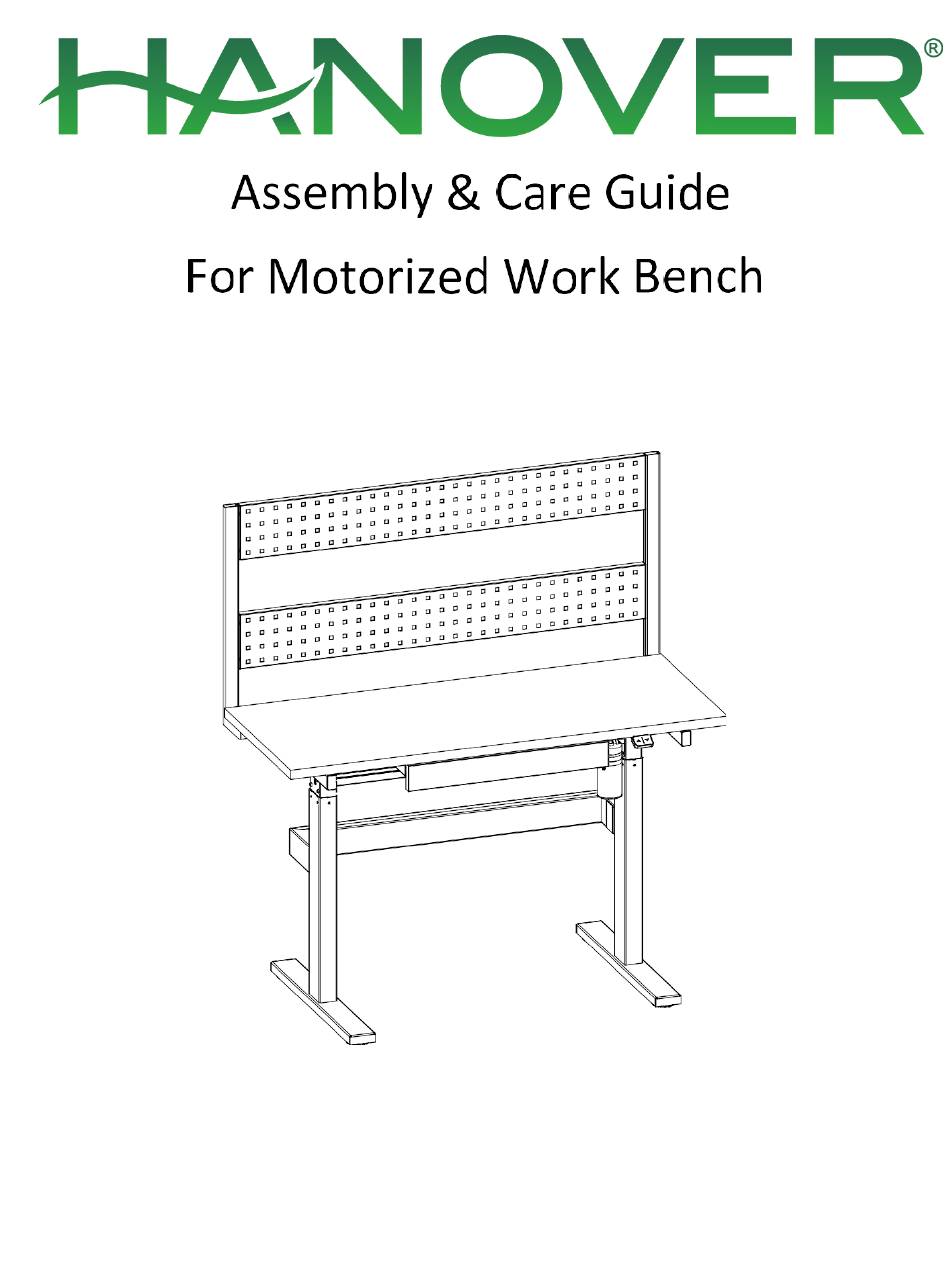

- Page 1 Model: HGS001-***...
- Page 2 Work Bench Assembly Instructions The model number of your bench is printed on the side of your ca rt Always use this number to identify your bench. Thank you for your purchase of this quality storage furniture. With proper use and care, your bench will provide you with years of use.
- Page 3 Table of Contents Safety Information Parts Lists and Breakdowns Assembling the Bench Installing the Backboard Installing the Drawer Trouble Shooting Warranty Safety Information • Power Suppl AC100V-240V, 50/60HZ. • Check carefully to ensure correct and complete assembly before using. • Be familiar with all functions and program settings before first use.
- Page 4 Parts List Tools Required: (2) Allen Key Wrenches and (1) Standard Wrench (included) Hardware Included: Bench: Backboard: Image Spec. Qty. Storage Drawer: Image Spec. Qty. Bench Parts List:...
- Page 5 Part Qty. No. Part Left Right supporting tube supporting tube Qty. Part Peg board...
- Page 9 Install the right and STEP 1 left supporting tube tabletop Connect the right and left supporting tube(1)(2) to the tabletop with screw(A), and tighten it with allen key STEP 2 Install the peg board Fix the peg board(3) in the middle of the right and left supporting tube(1)(2) with screw(A)
- Page 10 Installing the Storage Drawer Step 1: Installing the Storage Drawer STEP 1 Install the drawer Install with the drawer closed Connect the drawer to the tabletop with screw(A), and tighten it with allen key Troubleshooting: Bench does not adjust down when pressing and holding the down direction arrow. Check if all the cables are connected ■...
- Page 12 SUCH DAMAGES. EXCEPT AS OTHERWISE MAY BE REQUIRED BY LAW, THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OTHER THAN THE WARRANTY DESCRIBED HEREIN, AND ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. Contact Warranty Services at: ContactUs@Hanover-Products.com 1-877-397-5144 8/1/ 2018...
