RATH MICROTECH SMARTPHONE IV Simplified Programming Instructions

SMARTPHONE IV
Simplified Programming Instructions
Basic Programming 1 – 3. Advanced Programming 4 – 7 .
Phone has been preset to Standard SMARTPHONE IV Operation.
The following steps can be done in any order.
1. Programming Telephone
a. Press START
b. Press SET (key in telephone number)
c. Press M1
d. Press SET (key in telephone number)
e. Press M2
f. Press and hold STOP for 2.5 seconds
2. Programming Call Tracker
a. Press START
b. Press START
c. Speak message – 18 seconds
d. Press STOP
e. Press PAUSE to review message
f. Press and hold STOP for 2.5 seconds
3. Programming Timer
a. Press START
b. Press SET, SET
c. Enter the number of minutes you wish to talk
d. Press SET
e. Press and hold STOP for 2.5 seconds
4. Change Telephone Security Code
a. Press START
b. Press SET, SET, SET
c. Press 2
d. Press 4 digit ID Code (your decision) Note this on label.
Cannot be 0000.
e. Press STOP
f. Press and hold STOP for 2.5 seconds

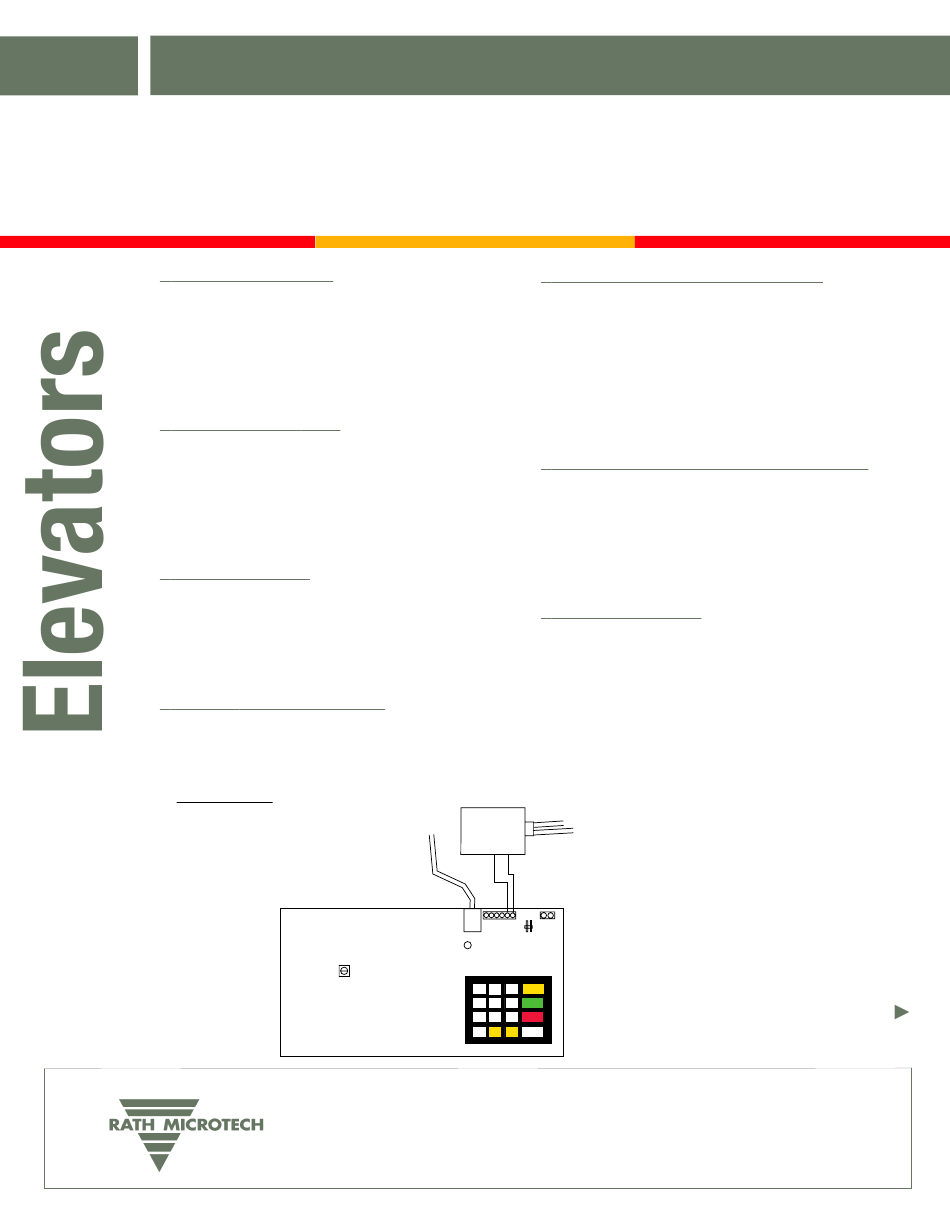

A/C Transformer
To Phone Line
Phone
Line
6 1
TBLK2
Connector
D14
Green
Pot LED
1 2 3
4 5
6
8
7 9
0 M1 M2
We're There for You!
TOLL FREE TECHNICAL SUPPORT 1-800-451-1460 EXT. 3
5. Ring – Down Telephone Line Programming
a. Press START
b. Press SET, PAUSE, M1
c. Press SET, M2
d. Press SET, SET, SET
e. Press 3
f. Press 0
g. Press STOP
h. Press and hold STOP for 2.5 seconds
6. Programming Consolidator Telephone ID Numbers
a. Press START
b. Press SET, SET, SET
c. Press 1
d. Key in the number for the elevator (i.e. 1-5)
e. Press STOP
f. Press and hold STOP for 2.5 seconds
7. Consolidator Operation
Dial the SMARTPHONE IV, all phones will automatically
answer active.
1. Select Individual Phone
Press * 1 (Phone 1)
Press * 2 (Phone 2)
Press * 3 (Phone 3)
Press * 4 (Phone 4)
Press * 5 (Phone 5)
2. Select All Phones Press * 0
(2-way conversation with all units)
3. Select All Phones (page mode) Press * 9
To
(Listen mode only, in elevator)
120
Volt
Source
1
TBLK3
Note:
J2
SMARTPHONE IV can
be programmed without
connection to 110 V AC
or the telephone line when
SET
back-up battery is fully
START
charged.
STOP
PAUSE
Press # 1 (Phone 6)
Press # 2 (Phone 7)
Press # 3 (Phone 8)
Press # 4 (Phone 9)
Press # 5 (Phone 10)
continued
