Summary of Contents for ALDI Gardenline PREMIUM PK-001

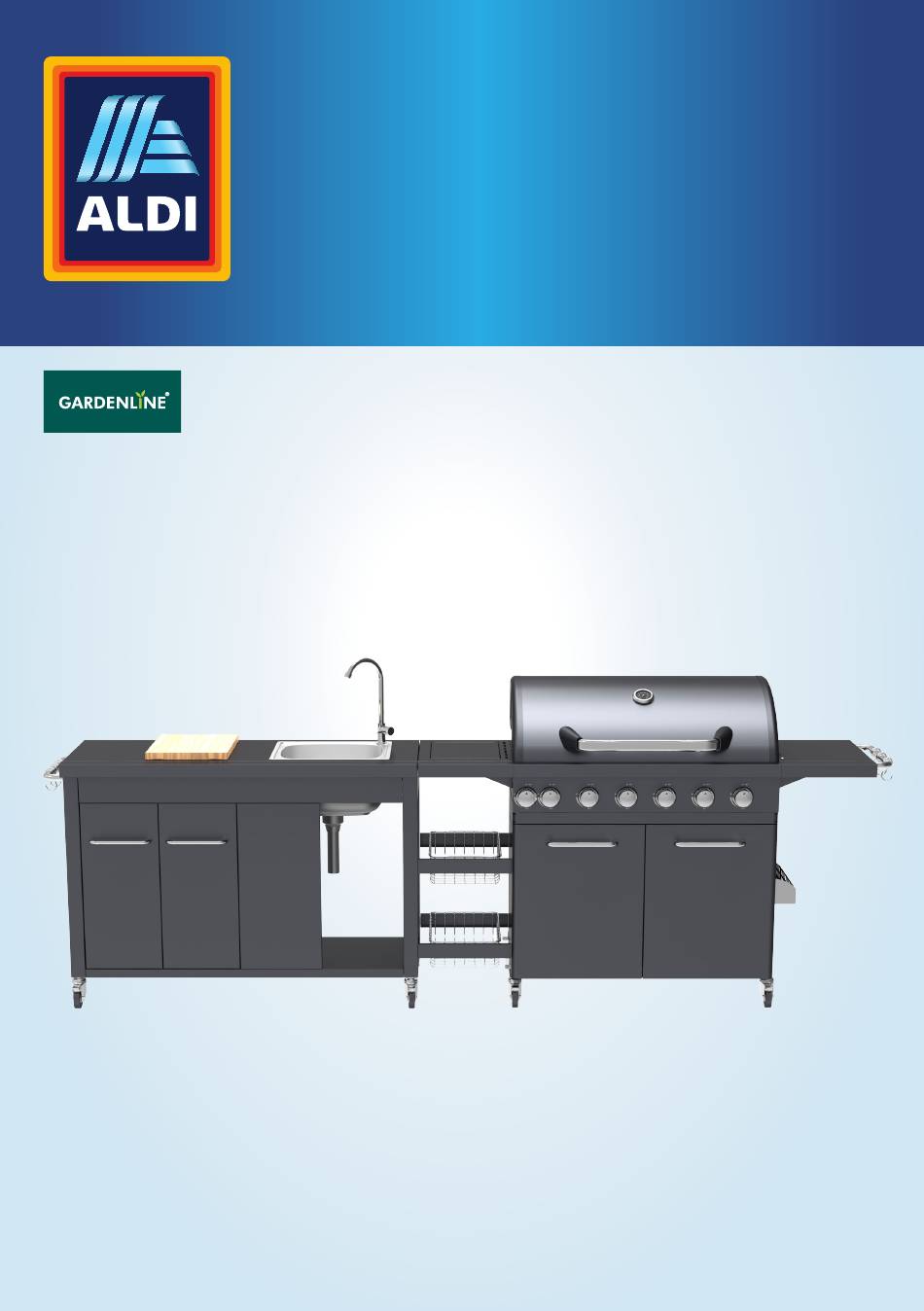

- Page 1 Assembly Instructions PREMIUM GAS BARBECUE...
-
Page 2: Overview
Overview... - Page 3 Overview...
-
Page 4: Scope Of Delivery/Device Components
Scope of delivery/device components Scope of delivery/device components Scope of delivery for gas grill Left door Warming rack Right door Grill plate Door handle (x2) Grill attachment Rear right leg Grate for side burner Right side wall Side burner Front right leg Table for side burner Tray Bracket for side burner... - Page 5 Scope of delivery/device components Scope of delivery for washing station Rear bracket Front trim panel Worktop Chopping board Rear wall Door handle (x2) Hook (x3) Base plate Handle Divider Handle attachment (x2) Front wall Left side wall Right side wall Magnet Front bracket Caster (x2)
-
Page 6: Table Of Contents
Table of content Table of content Overview........................2 Scope of delivery/device components..............4 General information....................8 Reading and storing the assembly instructions............8 Intended use........................8 Explanation of symbols.....................8 Safety........................9 Assembly instruction....................11 Grill step 1: assembling the legs..................13 Grill step 2: assembling the frame..................14 Grill step 3: installing the grill attachment on the frame.......... - Page 7 Table of content Maintenance......................37 Replacing the battery...................... 37 Storage........................38 Troubleshooting....................38 Technical data....................... 40 Disposal......................... 40...
-
Page 8: General Information
General information General information Reading and storing the assembly instructions These assembly instructions belong to this Premium Gas Barbecue (hereinafter also called the "product"). They contain important information about assembly and use. Read the assembly instructions carefully, in particular the safety instructions, before using the product. -
Page 9: Safety
Safety Safety WARNING! Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality. The following signal words are used in these assembly instructions. This signal symbol/word denotes a hazard with WARNING! an average risk level that could lead to death or severe injury if it is not avoided. - Page 10 Safety before each use. If necessary, retighten all screws to ensure that the barbecue is secure. - Do not use charcoal or any fuel other than liquid gas (propane, butane) to power the barbecue. - Do not smoke while using the product. Risks for persons - This barbecue may be used by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge if they have been supervised or...
-
Page 11: Assembly Instruction
Safety - Always keep a fire extinguisher and first-aid kit nearby so that you are prepared to deal with fire or accidents. Assembly instruction CAUTION! Risk of injury! Some parts of the barbecue might have sharp edges. Touching these parts can cause cuts. - Wear protective gloves! Use the following instructions and graphics to assemble the barbecue: - Complete each assembly step in the given order. - Page 12 Assembly instruction Washing station step 2: mounting the brackets........... 20 Washing station step 3: installing the divider............21 Washing station step 4: installing the front wall..........21 Washing station step 5: mounting the casters............22 Washing station step 6: assembling the worktop..........23 Washing station step 7: attaching the doors............
-
Page 13: Grill Step 1: Assembling The Legs
Assembly instruction Grill step 1: assembling the legs 1. Attach the front left leg and the rear left leg to the cross bar and the left side wall using 8 M6x10 screws 2. Attach the front right leg and the rear right leg to the cross bar the right side wall using 8 M6x10 screws... -
Page 14: Grill Step 2: Assembling The Frame
Assembly instruction Grill step 2: assembling the frame 1. Fasten the base plate to the two side parts using 8 M6x35 screws 2. Fasten the door bracket to the two side parts using 4 M6x10 screws 3. Fasten the rear wall to the two side parts using 4 M6x10 screws Grill step 3: installing the grill attachment on the frame 1. -
Page 15: Grill Step 4: Fastening The Grill Attachment To The Frame
Assembly instruction Grill step 4: fastening the grill attachment to the frame 1. Pull the grease tray backwards out of the grill attachment 2. Fasten the grill attachment to the frame using 4 M6x15 flat head screws Grill step 5: attaching the side table 1. -
Page 16: Grill Step 6: Installing The Side Burner
Assembly instruction 3. Attach the handle and handle attachment to the storage tray using 2 M6x15 screws 4. Fasten the storage tray to the grill attachment using 5 M6x10 screws 5. Fix the table for the side burner and the storage tray in place from the inside of the grill attachment using 2 M6x10 screws Grill step 6: installing the side burner... -
Page 17: Grill Step 7: Attaching The Doors
Assembly instruction Grill step 7: attaching the doors 1. Attach the door handles to both doors using 4 M6x10 screws 2. Mount both doors, first at the bottom in the outer holes in the legs and then at the top in the door bracket . -
Page 18: Grill Step 9: Connecting The Pressure Regulator
Assembly instruction Grill step 9: connecting the pressure regulator 1. Push one end of the gas hose onto the connector of the pressure regulator 2. Guide the hose clamp over the gas hose and fasten the hose to the connector of the pressure regulator. -
Page 19: Grill Step 10: Preparing The Grill
Assembly instruction Grill step 10: preparing the grill 1. Position the 4 burner covers over the burners. Pay attention to the bars of the grill attachment. 2. Position the 2 grill racks over the 4 burner covers. 3. Position the grill plate over the burners without burner covers. -
Page 20: Washing Station Step 1: Assembling The Side Walls
Assembly instruction Washing station step 1: assembling the side walls 1. Fasten the right side wall and the left side wall to the base plate using 8 M6x10 screws Washing station step 2: mounting the brackets 1. Fasten the magnet to the base plate using 2 M4x8 screws 2. -
Page 21: Washing Station Step 3: Installing The Divider
Assembly instruction Washing station step 3: installing the divider 1. Attach the divider to the rear bracket and the base plate using 3 M6x10 screws 2. Attach the rear wall to the divider and the left side wall using 4 M6x10 screws Washing station step 4: installing the front wall 1. -
Page 22: Washing Station Step 5: Mounting The Casters
Assembly instruction 2. Thread the 3 hooks onto the handle for the side wall . The small diameter of the hook must fully surround the handle. 3. Attach the handle and handle attachment to the left side wall using 2 M6x15 screws Washing station step 5: mounting the casters 1. -
Page 23: Washing Station Step 6: Assembling The Worktop
Assembly instruction Washing station step 6: assembling the worktop 1. Fasten the worktop to the two brackets and the two side walls using 12 M6x10 screws 2. Attach the front trim panel to the front bracket and the worktop using 6 M4x8 screws... -
Page 24: Washing Station Step 7: Attaching The Doors
Assembly instruction Washing station step 7: attaching the doors 1. Attach the door handles to both doors 44 45 using 4 M6x10 screws 2. Mount both doors, first at the bottom in the holes in the base plate and then at the top in the front bracket . -
Page 25: Washing Station Step 8: Assembling The Wash Basin
Assembly instruction Washing station step 8: assembling the wash basin 1. Position the water tap in the hole in the wash basin and use the sealing ring and ring nut to fix the underside of the water tap in place. 2. -
Page 26: Grill And Washing Station Connection Options
Assembly instruction Grill and washing station connection options You can connect the grill and the washing station in the following configurations:... -
Page 27: Side-By-Side Connection Step 1: Assembling The Struts
Assembly instruction Side-by-side connection step 1: assembling the struts 1. Remove the wash basin from the washing station. 2. Fasten the washing station to the table for the side burner using 2 M6x10 screws 3. Fasten the 4 struts to the legs of the washing station and grill using 16 M6x10 screws 4. -
Page 28: Corner Connection Step 1: Assembling The Connecting Plate
Assembly instruction Corner connection step 1: assembling the connecting plate... - Page 29 Assembly instruction 1. Screw the 6 M6x10 screws into the side table of the grill and the washing station, leaving 3 to 4 mm of the screw thread visible 2. Depending on the desired configuration, fasten the connecting plate to the base plate using 4 M6x10 screws 3.
-
Page 30: Corner Connection Step 2: Connecting The Grill And Washing Station
Assembly instruction Corner connection step 2: connecting the grill and washing station... - Page 31 Assembly instruction 1. Mount the connecting plate on the 2 M6x10 screws on the legs of the washing station. 2. Fasten the two connecting brackets to the legs of the grill using 4 M6x10 screws 3. Mount the corner worktop on the M6x10 screws of the grill and washing station.
-
Page 32: Use
WARNING! Risk of burning This barbecue gets very hot! There is a risk of burns if it is touched. - Use heat-resistant barbecue mitts or gloves (conforming to EN 407, Contact Heat rating level 2 or greater) while cooking. - Always use barbecue tools with a long, heat-resistant handle to set down and turn items on the barbecue. -
Page 33: Before Using For The First Time
Before using for the first time 1. Before using the barbecue for the first time, clean all parts that could come into contact with food, in particular the grill rack and the warming rack , as described in the section "Cleaning". 2. -
Page 34: Lighting Your Barbecue
1. Make 2-3 fluid ounces of leak detecting solution by mixing one part washing up liquid with 3 parts water. 2. Ensure the control valve is "OFF". 3. Connect the regulator to the cylinder and ON/OFF valve to the burner, ensure the connections are secure then turn ON the gas. -
Page 35: Taking The Grill Out Of Operation
clicking sound and the burner should ignite. Check whether the burner is lit. If the burner is not lit, repeat this process. If the burner is still not lit after two attempts, turn off the gas tap and wait 5 minutes before repeating the ignition sequence. -
Page 36: Cleaning
Cleaning Cleaning WARNING! Risk of burns This barbecue will become very hot! Touching may cause burn injuries. - Allow the barbecue to cool completely before cleaning! Clean the grill after every use, once it has cooled down. Discolouration of the burner covers, lid, grill rack and other parts is a normal sign of wear and is neither a hygiene concern nor a defect. -
Page 37: Maintenance
Cleaning 3. Clean the burner with a soft brush or blow clean with compressed air and wipe with a cloth. 4. Clean any clogged ports with a pipe cleaner or stiff wire (such as an opened paper clip). 5. Inspect burner for any damage (cracks or holes). If damage is found, replace with a new burner. -
Page 38: Storage
Storage Storage Storage of the barbecue indoors is only permissible if the cylinder is disconnected and removed from the barbecue. 1. Let the grill cool down completely. 2. Once the grill has cooled, check the screw connections and retighten them if necessary. - Page 39 Troubleshooting Problem Possible Cause Solution Low flame or flashback (fire Gas cylinder too small Use larger cylinder in burner tube - a hissing or Obstructions in burner Clean burner roaring noise may be heard) Obstructions in gas jets or Clean jets and gas hose gas hose Windy conditions Use barbecue in a more...
-
Page 40: Technical Data
Technical data Technical data PK-001 Model: 710676-711952-711953 Item number: 154 × 52 × 111 cm Grill dimensions (L × D × H): Washing station dimensions (L × D × H): 120 x 50 x 84.5 cm Fuel: 4LR44 6V Battery for control knob: Total heat input 22.4 kW (G30: 1,630 g/h) (all gas categories) - Page 41 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH ALDI STORES (IRELAND) LTD.
