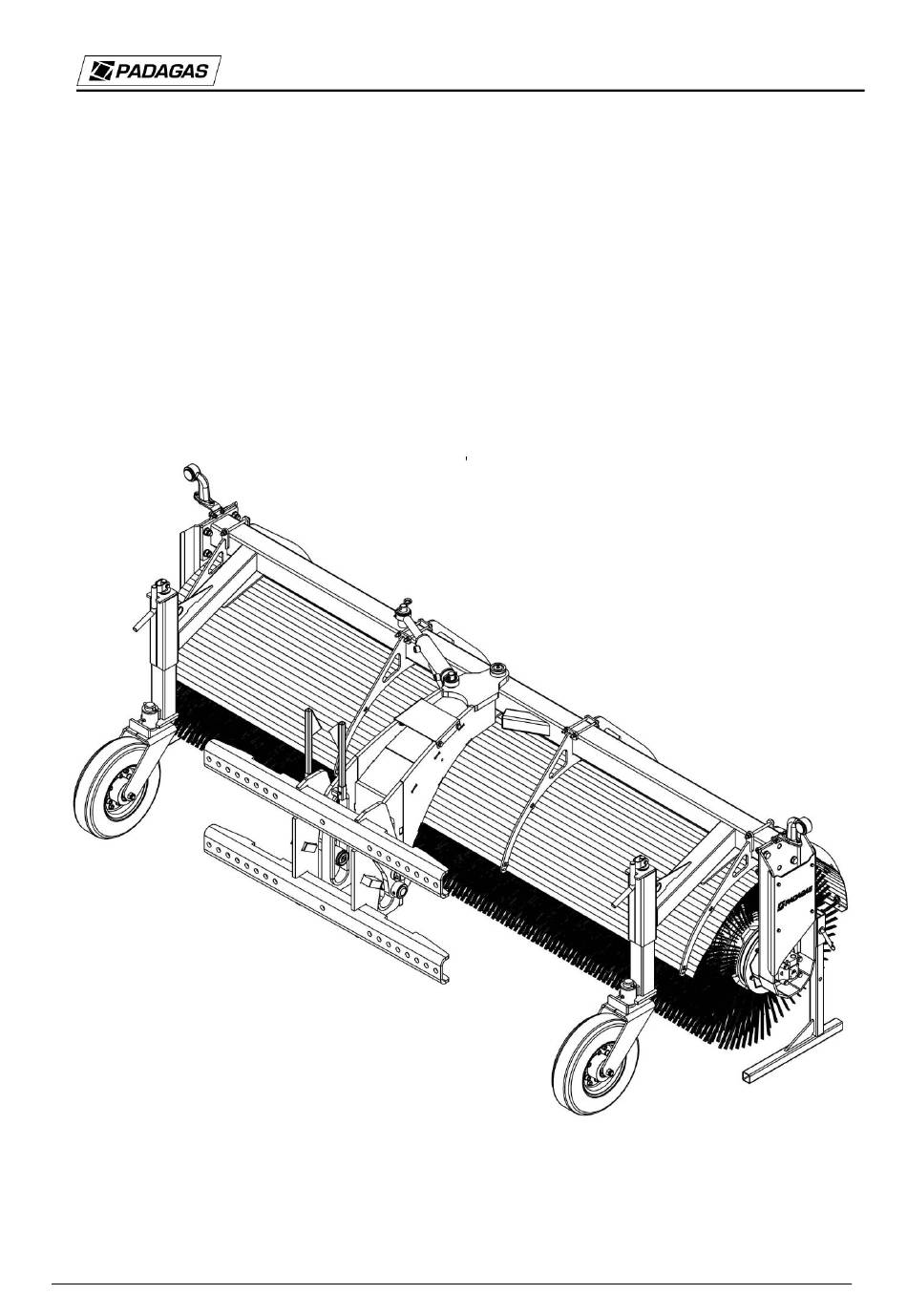

- Page 1 SHARK User Manual SHARK 250/300/330/350 © V. Padagas ir ko, UAB. All rights reserved.
-
Page 2: Table Of Contents
5.6 LUBRICATION ............................17 6. SWEEPER EQUIPMENT ..........................18 6.1 ADDITIONAL EQUIPMENT ........................18 6.2 HITCH FRAME ............................18 6.3 HYDRAULIC COMPONENTS AND ADDITIONAL OPTIONS .............. 18 6.4 ELECTRICAL COMPONENTS ........................ 19 © V. Padagas ir ko, UAB. All rights reserved. -
Page 3: Introduction
In case of use of the sweeping machine for non-intended purposes, the warranty is deemed null and void. © V. Padagas ir ko, UAB. All rights reserved. -
Page 4: Work Safety
Failure to observe the safety instructions can cause damage to persons, the environment and the machine. Non-compliance with safety guidelines may waive the right to claim damages. In separate cases, non-compliance can lead to the following consequences: - Danger to persons working in unprotected workplaces © V. Padagas ir ko, UAB. All rights reserved. -
Page 5: Principles Of Safe Operation
- If in any position the light fitted to the trusses is tucked away / hidden, additional lamps must be fitted. - When connecting the sweeper to the tractor, the suspension must be adjusted according to the level indicators (Fig. 1). © V. Padagas ir ko, UAB. All rights reserved. - Page 6 - Before leaving the sweeping machine, lower the supports to the ground, or adjust the supporting wheels to avoid the brush deformation. Remove the ignition key, check and make sure that the machine will not start suddenly or start rolling. © V. Padagas ir ko, UAB. All rights reserved.
-
Page 7: Safety Instructions Related To Repair, Control And Installation Works
If the sweeper was not used for more than 4 weeks, it must be checked carefully before operation. Check the sweeper's technical condition in the following cases: - Before starting the sweeper operation - At a specified frequency of inspection © V. Padagas ir ko, UAB. All rights reserved. -
Page 8: Modifications And Replacement Of Parts
Original spare parts and parts approved by the manufacturer guarantee safety. Use of other parts may invalidate the consumer's right to claim damages in the event of a malfunction or an accident. © V. Padagas ir ko, UAB. All rights reserved. -
Page 9: Guideline And Warning Notes And Symbols On The Sweeper
WARNING! Before touching the parts of the machine, wait until they stop completely. When the engine is switched off, the sweeping segments will rotate for a while and may cause injury. © V. Padagas ir ko, UAB. All rights reserved. -
Page 10: Additional Data
Warranty certificate 3.2 WARRANTY CONDITIONS V.Padagas ir Ko, UAB guarantees that the sweeping machine will be free from manufacturing defects, except for parts produced by other companies, for a period of 12 months from the date of loading or 6 months from the date of delivery to the consumer. -
Page 11: Instructions On The Use
SHARK 4. INSTRUCTIONS ON THE USE 4.1 TECHNICAL CHARACTERISTICS Sweeping machine SHARK 250 SHARK 300 SHARK 330 SHARK 350 Working width (mm) 2460 2960 3260 3460 Sweeping segment diameter (mm) ±25 ±25 ±25 ±25 Sweeping machine turning angle ( Weight (kg) -
Page 12: Sweeper Description
5. USING THE SWEEPING MACHINE Before starting the sweeper operation, the user must read the user manual. Directives for proper operation must be followed. © V. Padagas ir ko, UAB. All rights reserved. -
Page 13: Preconditions For The Sweeper's Attachment To The Tractor
The hydraulic hoses should not be used for more than 6 years. Date of production and permissible dynamic pressure are indicated on the hose. © V. Padagas ir ko, UAB. All rights reserved. -
Page 14: Working With The Sweeping Machine
Note! When the shaft is being reassembled, ensure that the axle is not bent. The hydraulic system must be repaired by specialist workshops. In a daily work with the sweeping machine, observe its safe condition. Fig. 4. Wheel adjustment © V. Padagas ir ko, UAB. All rights reserved. -
Page 15: Hydraulic Unit
After disconnecting the hydraulic quick connect couplers from the tractor, the hydraulic coupler plug must be covered with a special hydraulic stopper, and the hydraulic hoses must be hang in a designated area to prevent the hoses from being contaminated or damaged. © V. Padagas ir ko, UAB. All rights reserved. -
Page 16: Lubrication
SHARK 5.6 LUBRICATION Fig. 5. Lubrication The sweeper must be lubricated at least every 16 working hours. We recommend using lubricants LT-42 or LT-43. © V. Padagas ir ko, UAB. All rights reserved. -
Page 17: Sweeper Equipment
Hydraulic motor safety valve. The safety valve of the hydraulic motor acts as a pressure relief valve and opens when back pressure from D1 to D2 occurs, as well as in the reverse direction. © V. Padagas ir ko, UAB. All rights reserved. -
Page 18: Electrical Components
The water pump is used to ensure a steady flow of water over any operating range. The pump voltage is 12 V or 24 V. Marker light. The marker lamp clearly defines the width of the vehicle. © V. Padagas ir ko, UAB. All rights reserved.
