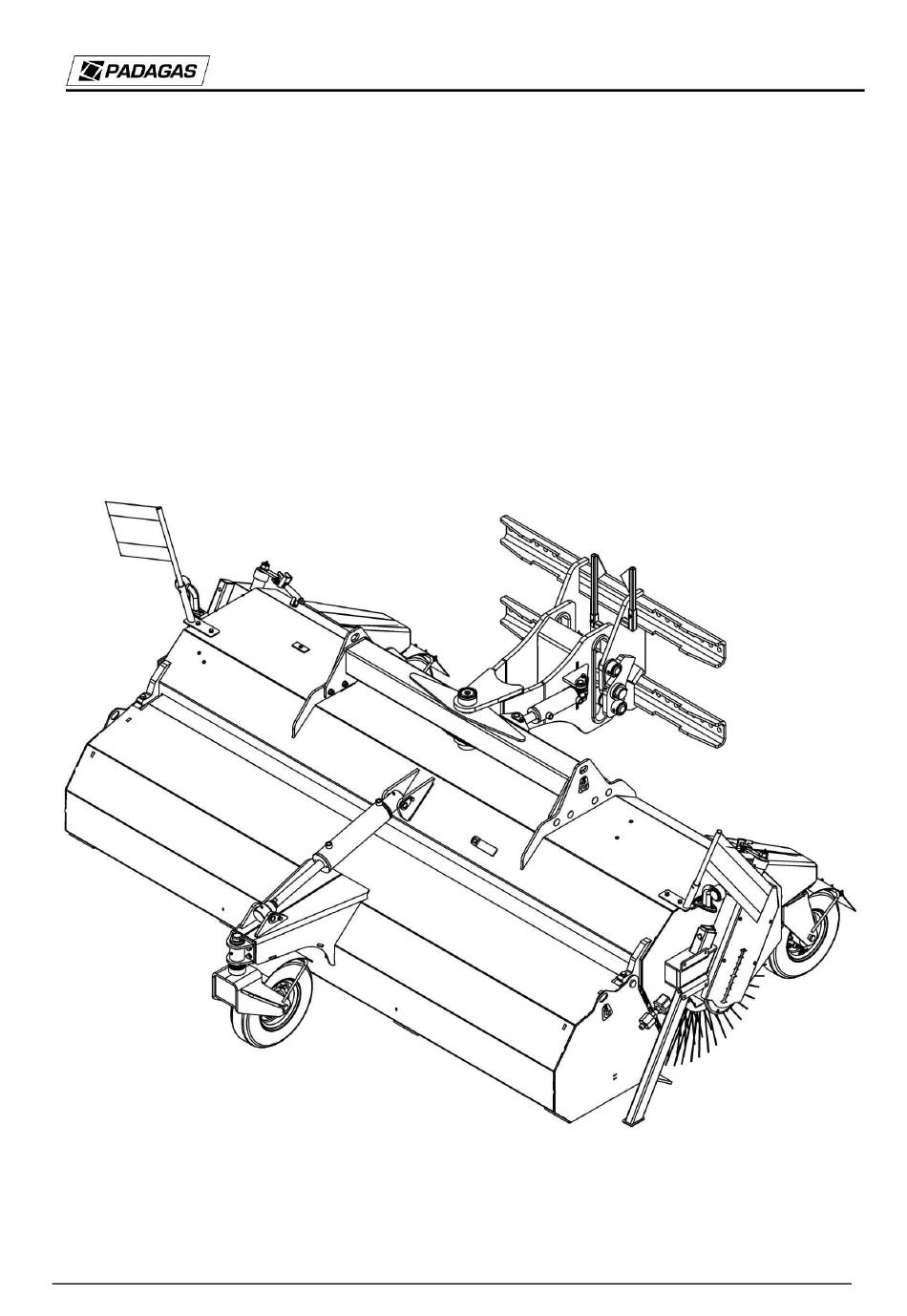

- Page 1 PROFI H User Manual PROFI H – 2101/2501/2801 ©V. Padagas ir ko., UAB. All rights reserved.
-
Page 2: Table Of Contents
5.6 LUBRICATION SCHEME ..........................19 6. SWEEPER EQUIPMENT ............................ 20 6.1 ADDITIONAL EQUIPMENT ......................... 20 6.2 PAKABU RĖMAS ............................20 6.3 HIDRAULINIAI KOMPONENTAI IR PAPILDOMOS OPCIJOS ................ 20 6.4 ELEKTRINIAI KOMPONENTAI ........................21 ©V. Padagas ir ko., UAB. All rights reserved. -
Page 3: Introduction
If the sweeping machine is used for other purposes, the manufacturer does not assume any responsibility for the consequences of such use. In case of misuse the warranty is deemed void. ©V. Padagas ir ko., UAB. All rights reserved. -
Page 4: Safe Handling Instructions
Failure to comply with safety instructions may result in forfeiture of the right to claim damages. In some cases, such non-compliance may lead to the following: - Risk to persons working in unprotected areas - Basic malfunction of the machine ©V. Padagas ir ko., UAB. All rights reserved. -
Page 5: Principles Of Safe Operation
- If the lights mounted on the truss structures are hidden/covered in the current position, additional lamps must be attached. - When the sweeping machine is connected to the tractor, it is necessary to adjust the suspension according to the level indicators (Fig. 1). ©V. Padagas ir ko., UAB. All rights reserved. - Page 6 - Under high pressure, liquids (hydraulic oil) can penetrate the skin and cause severe tissue damage. In case of injury seek medical attention immediately. The risk of contracting the infection! - Hydraulic hoses must be mounted only at zero pressure of the hydraulic machine. ©V. Padagas ir ko., UAB. All rights reserved.
-
Page 7: Safety Instructions For Maintenance, Inspection And Mounting
The period of use of hydraulic hoses and tubes may not be longer than 6 years. Regular check must include: All screws, which must be tightened, if necessary Tightness of the hydraulic unit Proper fixation of all safety devices ©V. Padagas ir ko., UAB. All rights reserved. -
Page 8: Re-Mounting And Replacing Parts Independently
The description and meaning of the instruction and warning notes and symbols indicated on the sweeping machine are provided in Table No. 1. Table No. 1. Instruction and warning notes and symbols on the sweeper ©V. Padagas ir ko., UAB. All rights reserved. - Page 9 CAUTION! Before touching parts of the machine, wait until it stops working completely. After turning the engine off, sweeping segments keep rotating for some time and may cause injury. ©V. Padagas ir ko., UAB. All rights reserved.
-
Page 10: Additional Data
Warranty card 3.2 WARRANTY CONDITIONS V.Padagas ir Ko, UAB provides warranty against manufacturing defects, excluding parts that are produced by other companies, for the period of 12 months from the date of loading or 6 months from the date of delivery of the sweeping machine to the consumer. -
Page 11: Directions For Use
(Fig. 2). Cleaning positions are set mechanically by turning the rod or hydraulically with the use of hydraulic cylinder. In PROFI H model the garbage bin is used for the collection of garbage and other bulk material from the surface being cleaned. ©V. Padagas ir ko., UAB. All rights reserved. -
Page 12: Lights
The device requires a hydraulic circuit with reverse flow and a quick-connect coupling; Check if the rotating parts (hydraulic motor, brush shaft) are mounted appropriately (at least once in 8 working hours) ©V. Padagas ir ko., UAB. All rights reserved. -
Page 13: Connection Of The Sweeping Machine To The Hydraulic System
(but must not exceed 10 km/h). When operating the sweeping machine: If there are three supporting casters, it is necessary to monitor that the sweeping machine is running on the casters during operation. ©V. Padagas ir ko., UAB. All rights reserved. - Page 14 The safe condition of the sweeping machine must be monitored during its daily operation. Fig. 3. Bin regulation scheme. Fig. 4. Bristle pressure adjustment ©V. Padagas ir ko., UAB. All rights reserved.
-
Page 15: Hydraulic Unit
CAUTION! Maximum instantaneous pressure within the hydraulic system is 200 bar. Maximum instantaneous flow rate within the hydraulic system is 85 l/min. ©V. Padagas ir ko., UAB. All rights reserved. -
Page 16: Lubrication Scheme
PROFI H 5.6 LUBRICATION SCHEME Fig. 6. Lubrication scheme The sweeper must be lubricated at least every 16 hours. Recommended lubrication oil: LT-42 or LT-43. ©V. Padagas ir ko., UAB. All rights reserved. -
Page 17: Sweeper Equipment
The oil flow controls the rotation speed of the shaft. The shaft rotation speed should be approximately 80-120 rpm. ©V. Padagas ir ko., UAB. All rights reserved. -
Page 18: Elektriniai Komponentai
The water pump is used to ensure a steady flow of water over any operating range. The pump voltage is 12 V or 24 V. Marker light. The marker lamp clearly defines the width of the vehicle. ©V. Padagas ir ko., UAB. All rights reserved.
