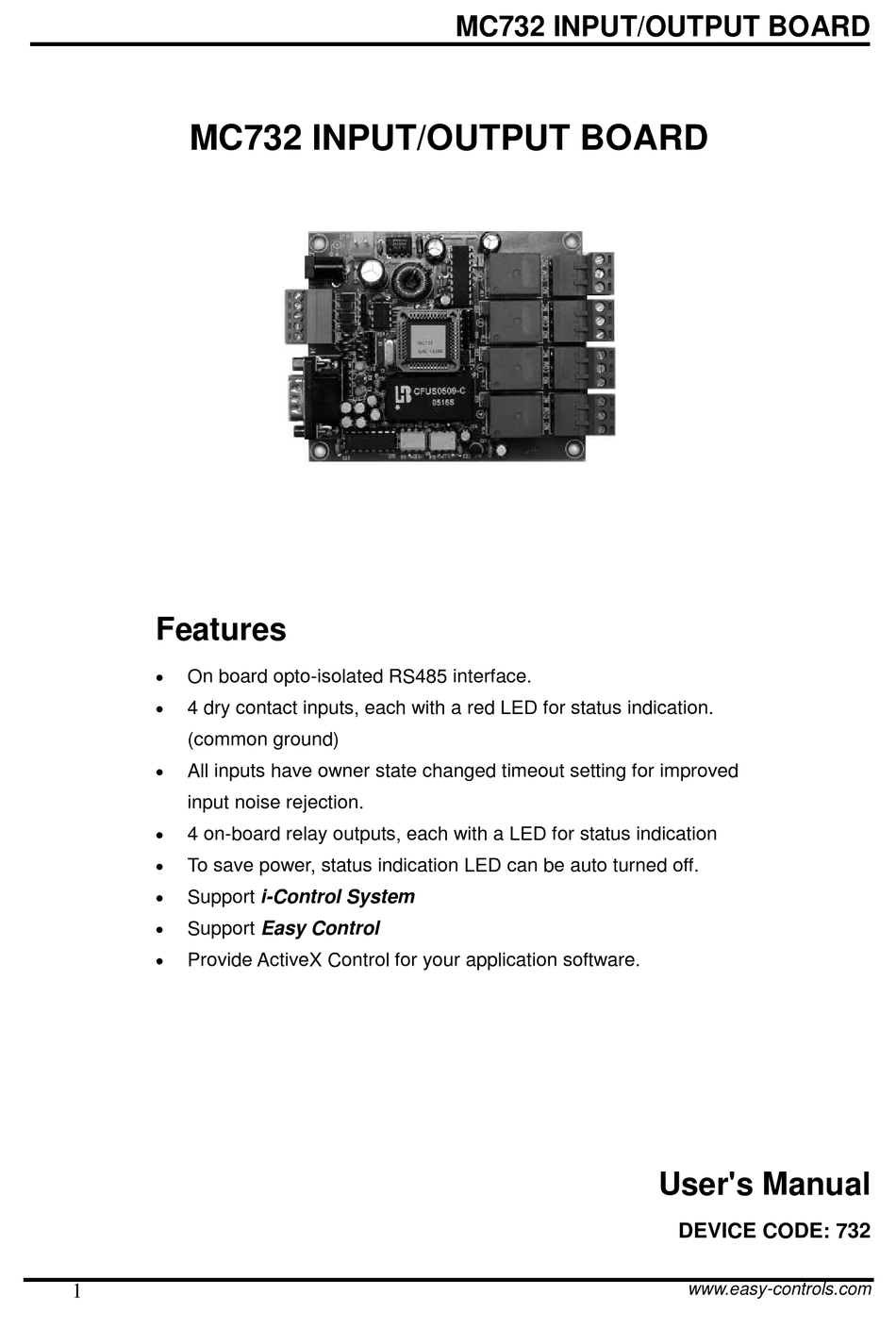

MC732 INPUT/OUTPUT BOARD
Features
On board opto-isolated RS485 interface.
4 dry contact inputs, each with a red LED for status indication.
(common ground)
All inputs have owner state changed timeout setting for improved
input noise rejection.
4 on-board relay outputs, each with a LED for status indication
To save power, status indication LED can be auto turned off.
Support i-Control System
Support Easy Control
Provide ActiveX Control for your application software.
1
MC732 INPUT/OUTPUT BOARD
User's Manual
DEVICE CODE: 732
www.easy-controls.com
Advertisement
Related Manuals for Easy Controls MC732
Summary of Contents for Easy Controls MC732
- Page 1 MC732 INPUT/OUTPUT BOARD MC732 INPUT/OUTPUT BOARD Features On board opto-isolated RS485 interface. 4 dry contact inputs, each with a red LED for status indication. (common ground) All inputs have owner state changed timeout setting for improved input noise rejection.
- Page 2 MC732 INPUT/OUTPUT BOARD IMPORTANT Although the information contained herein has been carefully verified, NEWELL TECHNOLOGIES LIMITED assumes no responsibility for any errors that may occur, for any damage to property or persons resulting from improper use of this manual or from the related software. NEWELL TECHNOLOGIES LIMITED products are not authorized for use as components in medical, life support or military devices.
-
Page 3: Document Overview
MC732 INPUT/OUTPUT BOARD Document overview Connectors ................................ 4 PCB Size ................................5 Technical Specifications............................. 5 Power Supply (J1/J2)............................6 Reset.................................. 6 Communication Interface (J4) ........................... 6 Input Connection (J3) ............................6 Output Connector (J5, J6, J7, J8)........................6 Device ID ................................7 Easy Control Resource............................ - Page 4 MC732 INPUT/OUTPUT BOARD Connectors *Power supply(J1) Output Status LED Output 1~4 Input Status LED *Power supply(J2) COM. Output 1 COM. Output 2 Input Common System Startup Delay Jumper JP1 Input 1~4 COM. Output 3 System Status LED RS232 Connector COM.
-
Page 5: Technical Specifications
MC732 INPUT/OUTPUT BOARD PCB Size 87mm φ4.5mm 104.5mm 7.5mm Technical Specifications Maximum boards 256(addressed by device ID) (In same control network) more than 256 (addressed by serial number) Inputs 4 (dry contact) Outputs 4 (Relays) Max switching current /voltage: 4A/60VDC, 4A/60VAC... - Page 6 MC732 INPUT/OUTPUT BOARD Power Supply (J1/J2) The device requests a DC power supply and connect to J1 or J2. DC: 8 – 30 V 10W Using J1 J1 Pin Description Using J2 Reset The device reset and set default output state at power-up, the state of the outputs does not change even a system software or hardware reset (Watchdog Timer - WDT) may occur.
-
Page 7: Customer Service
MC732 INPUT/OUTPUT BOARD Device ID The default Device ID is 0, the ID can be changed by set system variable IDEX, Please refer to Easy Control manual. Easy Control Resource Please install software [Easy Control]. To download the newest version, you can go to http://www.easy-controls.com/download/...
