Operation Processes - Compcooler COMP-MLCS-12200 Operation Manual

1. Garment or Pad connection: Connect the extension tubing with liquid heating unit. Connect the
liquid cooling garment or pad from the other end.
Once you hear a click, it's in position.
2. Power Connection: connect with power EC5 connection, light the controller
The cooling unit will be in standby mode.
3. Start cooling: user may press ON/OFF to start chiller, liquid temperature will go down to set
point in minutes.
pump is not working at this time.

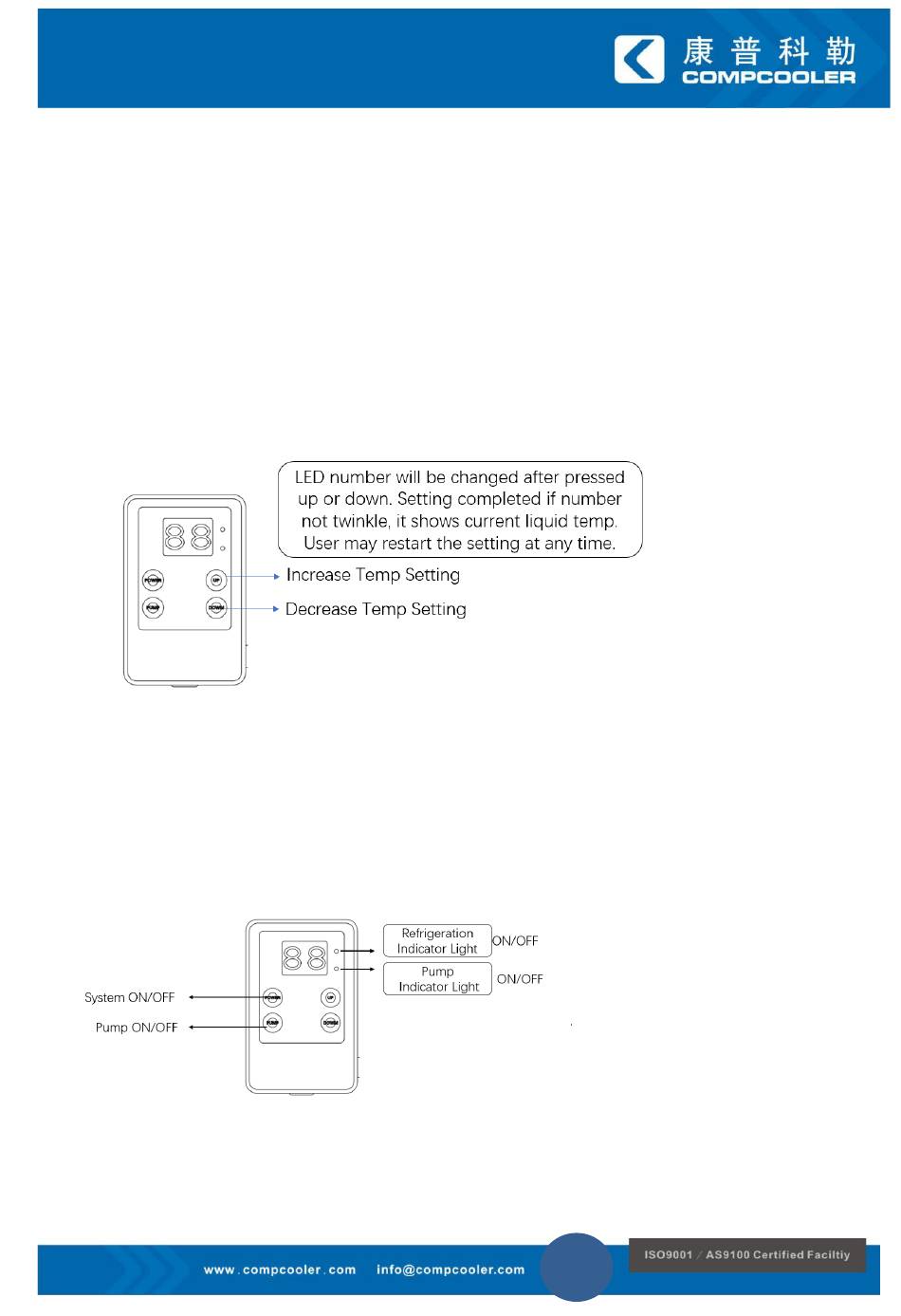

4. Temp setting: user may press up and down to set up the temp for circulation liquid as need.
5. Start circulation:
User may press the pump to start or stop circulation. Please make sure the tubing is connected
(no kinks) before circulation.
Compcooler, keep your body cool and comfortable in harsh conditions.

Operation Processes

8
