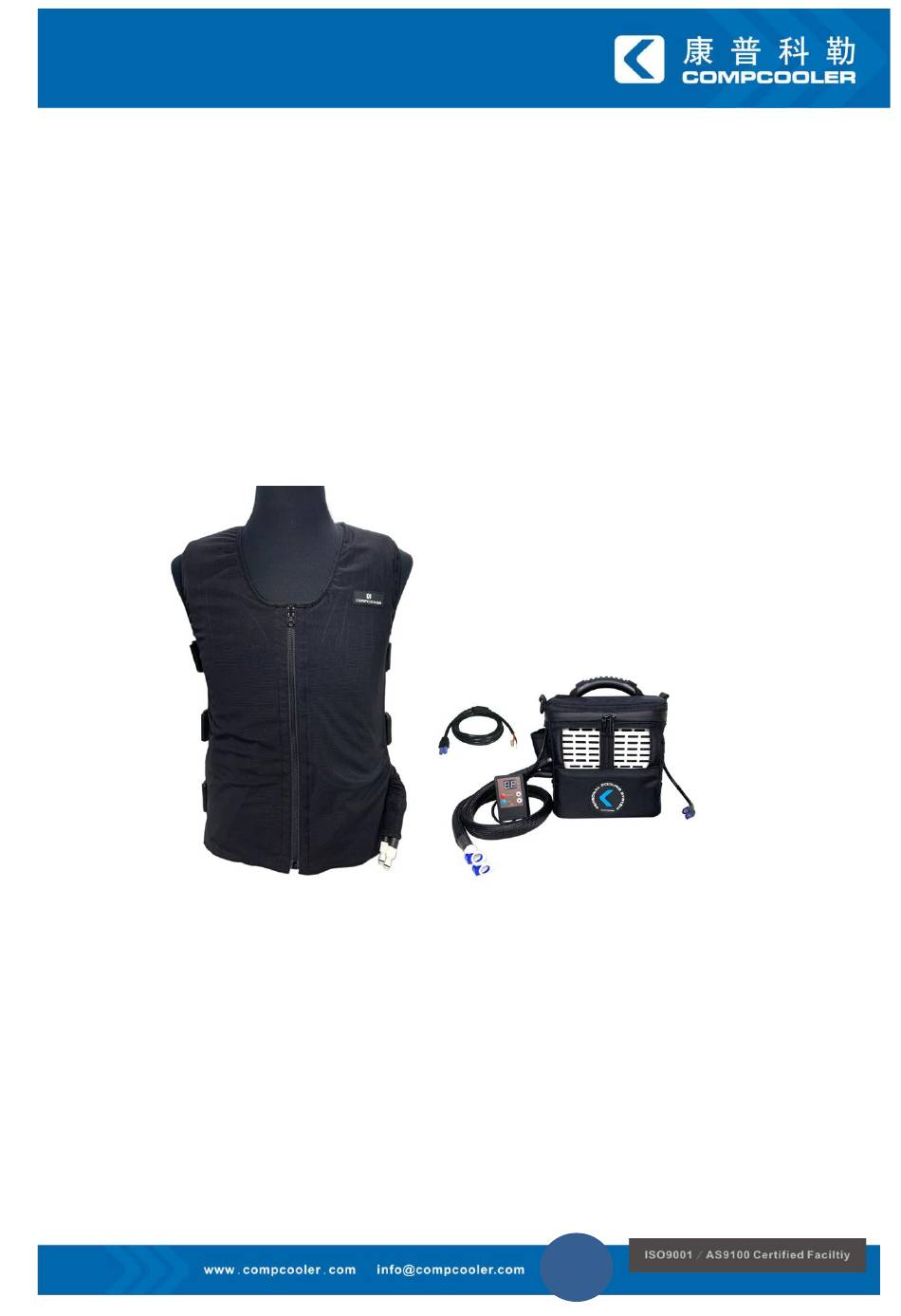

- Page 1 Motorcycle Rider Liquid Chiller System Model: COMP-MLCS-12200 Rev: A Operation Manual Compcooler, keep your body cool and comfortable in harsh conditions.
- Page 2 COMPCOOLER Introduction: Compcooler Technology specializes in working for personal cooling & heating systems for harsh conditions. Compcooler has established its resume as a manufacturer for Military, Electronic, Medical cooling equipment. The employees at Compcooler’s state of the art manufacturing facility have been producing liquid heating &...
-
Page 3: Components List
Model: COMP-MLCS-12200V Description: Compcooler Motorcycle Rider Liquid Chiller System (MLCS) was designed for the body cooling of riders. MLCS uses 12V DC rotary compressor refrigeration system to cool the liquid, pump circulates the cold liquid to cooling vest, then flow back to reservoir after heat exchanged. MLCS delivers 400W cooling capacity, power by DC12V vehicle power or rechargeable battery. - Page 4 ℃ Operation Ambient -10 to 60 ℃ Storage Temp -20 to 70 Noise Color White or Black 220x180x100 Dimension L x W x H Inch 8.6x7.1x3.9 Weight Compressor Start Curves: Compcooler, keep your body cool and comfortable in harsh conditions.
- Page 5 Operation ambient for chiller unit is -10 to 60℃ Cooling capacity could be difference based on ambient and liquid temp setting. Performance Curves Ambient 20℃ Ambient 30℃ Ambient 40℃ Coolant Temperature (℃) Compcooler, keep your body cool and comfortable in harsh conditions.
- Page 6 Power Connection Vehicle Power connection One DC power cord EC5 was provided with chiller, user may connect it with Vehicle power 12- 16V. Compcooler, keep your body cool and comfortable in harsh conditions.
- Page 7 User may connect the chiller with Compcooler Cooling Vest or Cooling pad by quick release fittings. One extension tubing was provided with chiller. Chiller unit is compatible with all Compcooler garment, if you want to try other brand garment, please remove the quick fitting from extension hose and replace the new fittings to compatible with other cooling garment.
-
Page 8: Operation Processes
4. Temp setting: user may press up and down to set up the temp for circulation liquid as need. 5. Start circulation: User may press the pump to start or stop circulation. Please make sure the tubing is connected (no kinks) before circulation. Compcooler, keep your body cool and comfortable in harsh conditions. -
Page 9: Clean And Maintenance
Restart: after long term storage, please fill in clean water with less degerming agent, run system over 10 minutes with cooling vest connection. Then empty the system and re-fill in the liquid as need. Compcooler, keep your body cool and comfortable in harsh conditions. - Page 10 Connection loose Remote controller can’t operate Controller LED vague or Check the unit input voltage twinkle No feedback, P1 on the Check if the connection loose or 5 Temp sensor panel Compcooler, keep your body cool and comfortable in harsh conditions.
-
Page 11: Warranty
Compcooler agrees to correct for the original user of this product, either by repair, or at the manufacturer’s election by replacement. This warranty shall not apply if the defect or malfunction was caused by accident, neglect, unreasonable use, improper service, or other causes not arising out of defects in material or workmanship.
