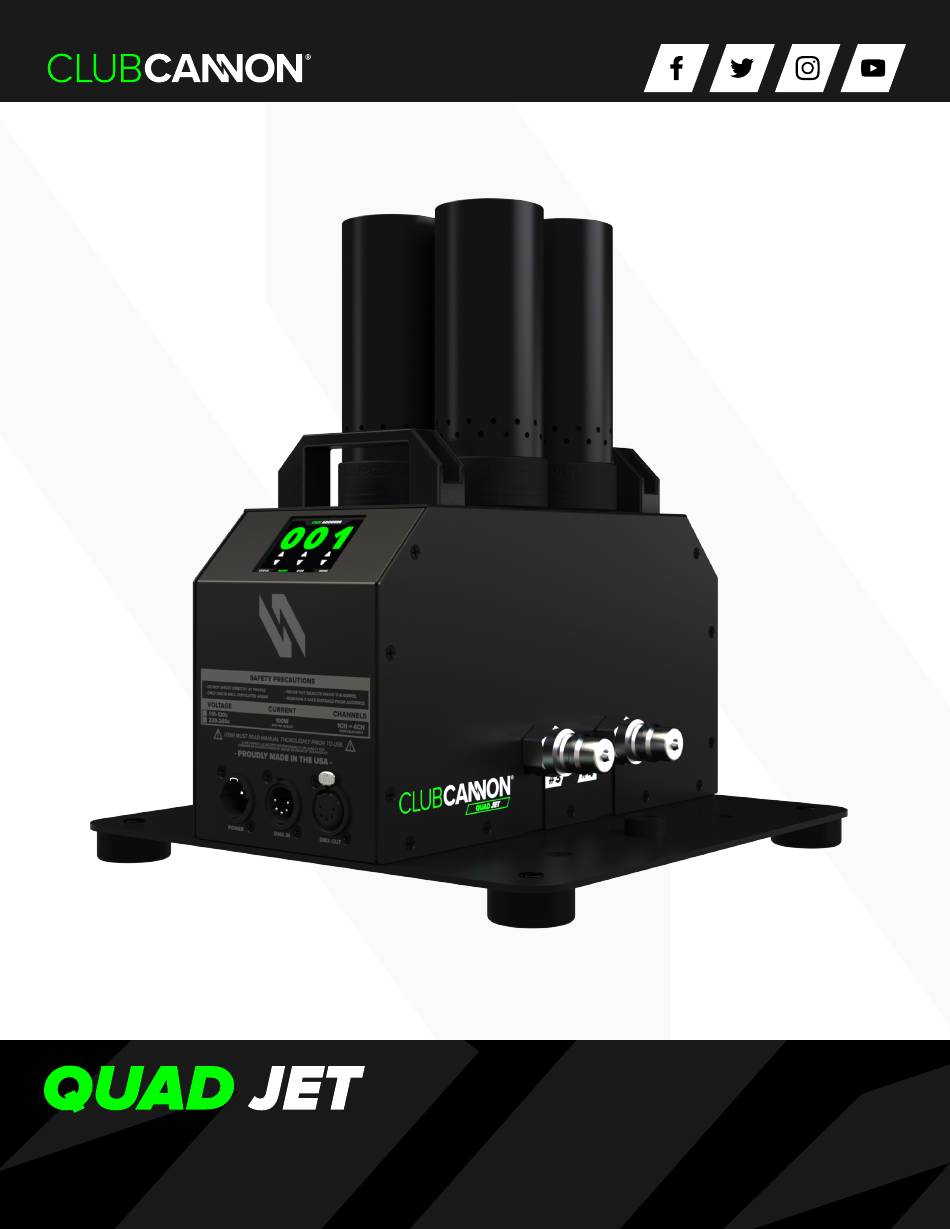

- Page 1 VERSION 1.0 User Manual AUG 2021...
-
Page 2: Table Of Contents
TABLE OF CONTENTS QUAD JET INTRO ................1 - OVERVIEW ................... 1 - FEATURES ..................1 INCLUDED ITEMS ................2 SAFETY GUIDE ................3 SAFETY GUIDE ................4 - SAFETY RADIUS ................4 - SAFE MOUNTING ................5 HARDWARE OVERVIEW ..............6 - UNIT REAR ...................6 HARDWARE SPECIFICATIONS .............7... -
Page 3: Quad Jet Intro
QUAD JET INTRO Congratulations on your purchase of the Quad Jet. This manual will provide an overview of the Quad Jet’s functions, capabilities, and instructions for proper operation. If you have questions outside the scope of this manual, feel free to contact us directly. -
Page 4: Included Items
INCLUDED ITEMS The following items are included with the purchase of each Quad Jet. If you need replacement items, contact Club Cannon, 888-804-8175 / info@clubcannon.com. QUAD JET TRUE1 CABLE 4 - CO2 HOSE Four nozzle Co2 Jet 6’ Edison to True1 cord CGA-320 x Quick Connect 20 - CO₂... - Page 5 SAFETY GUIDE DANGER WARNING NOTICE CAUTION This icon signifies that severe This icon signifies that severe This icon signifies that mild This icon signifies product bodily harm or death will bodily harm or death may to moderate injury may malfunction or damage may occur if instuctions are not occur if instructions are not occur if instuctions are not...
-
Page 6: Safety Guide
SAFETY RADIUS The Quad Jet was designed for use in arenas and/or large outdoor venues. With this in mind, the Quad Jet can produce a plume in upwards of 70FT/21M. Images below outline the necessary safety radius, which must be observed at all times. -
Page 7: Safe Mounting
SAFETY GUIDE SAFE MOUNTING TOTUM MOUNTING INVERTED MOUNTING HORIZONTAL MOUNTING GROUND PLACEMENT • Recommended use. Utilize the holes on the base plate to GROUND PLACEMENT fasten to a solid surface when necessary. • Horizontal mounting requires a solid mounting surface. •... -
Page 8: Hardware Overview
HARDWARE OVERVIEW UNIT REAR 4 x CLUB CANNON BARRELS WITH BUILT IN SILENCERS VENT HOLES VENT COVER 2.4 INCH LCD SLEEVE TOUCH SCREEN 4 x QUICK CONNECT INLETS INTERGRATED 1/2” NUT FOR CLAMP USE TRUE1 OUTPUT POWERCON INPUT HIGH GRIP... -
Page 9: Hardware Specifications
HARDWARE SPECIFICATIONS 8.25 4.75 11.75 11.75 8.25 WEIGHT: 21 LBs VOLTAGE: US - 110-220v AC 50-60hz 9.5 KGs EU - 220-240v AC 50-60hz DIMENSIONS: 11.75” x 11.75” x 13.125” CONSUMPTION: 125W MAX 298mm x 298mm x 333mm Approx 25W Per Nozzle. TRUSS MOUNTS: 1/2”-13 truss bolt required. -
Page 10: Co2 Requirements
CO₂, which comes from a non-siphon CO₂ tank, will not create the desired fog effect. The siphon tube feeds the Club Cannon product liquid from the bottom of the tank, while a standard CO₂ tank draws gas from the top of the tank (see illustration). -
Page 11: Co2 Setup
After attaching and tightening all fittings, turn on your CO₂ tank and check for any leaks. If a leak is present, cease use immediately and contact Club Cannon. Trigger the unit each time you want to release CO2. Note: After use, close the valve on the CO₂ tank. Clear the remaining gas through the product, depleting all pressure in the system. -
Page 12: Quick Start Guide
4 CH MODE CONNECT The last step is to attach a DMX controller like “The Button” or “ShoMaster” to control the Quad Jet. Note: DMX control is required for the Quad Jet to operate. STATUS MODE READY 4 CH ATTACH HOSES Follow the steps outlined in CO₂... -
Page 13: Home Screen
This page features quick access to setting the DMX address. The main menu can be accessed by tapping on the DMX address. This is the default screen that is shown when the Quad Jet is first powered on. TAP TO ENTER MENU... -
Page 14: Home States
HOME SCREEN HOME STATES STATUS NO DMX 4 CH MODE STATUS READY 4 CH MODE When no DMX is being received, When DMX is being received, the address will be displayed in the address will be displayed in red. green. STATUS READY 4 CH... -
Page 15: Purge Lines
PURGE LINES Line purging can be used as a convenience feature at the end of a show. To use this feature, DMX must be disconnected from the QuadJet. CHANNEL CHANNEL TRIGGERS 4 VALVES AS ONE. TRIGGERS 4 VALVES AS ONE. ACTIVE ACTIVE CHANNEL... -
Page 16: Device Troubleshooting
Unit does not power on • Supplying incorrect voltage will cause permanent damage. • If issue persists, contact Club Cannon directly. No user serviceable parts inside. If your issue is not listed, or the suggested solution did not solve the issue, contact Club Cannon. -
Page 17: Included Warranty
WARRANTY INCLUDED The Quad Jet includes a 1 year parts & labor warranty against manufacturer defects. Warranty does not cover damage caused by accident, misuse, abuse, alteration, or unauthorized repair. To make a warranty claim, contact Club Cannon directly. The Quad Jet is an electronic device, sensitive to moisture. To avoid risk of electronic shock, malfunction, or voided warranty, only use in dry environments. - Page 18 Page left blank intentionally.
-
Page 19: Terms & Conditions
When using the Products, make sure you are in an open field or a well-ventilated area and are at least fifteen (15) feet away from people or other living things. Never hold a Club Cannon® Product by the barrel, especially after it has been used as it becomes extremely cold. Once the Product is attached to the CO2 tank and the tank is turned on, the gas passing through the Product will be under pressure. -
Page 20: Contact Us
CONTACT 856 Ricardo Ct. San Luis Obispo, CA 93401 888-804-8175 info@clubcannon.com ● www.clubcannon.com © CLUB CANNON 2021...
