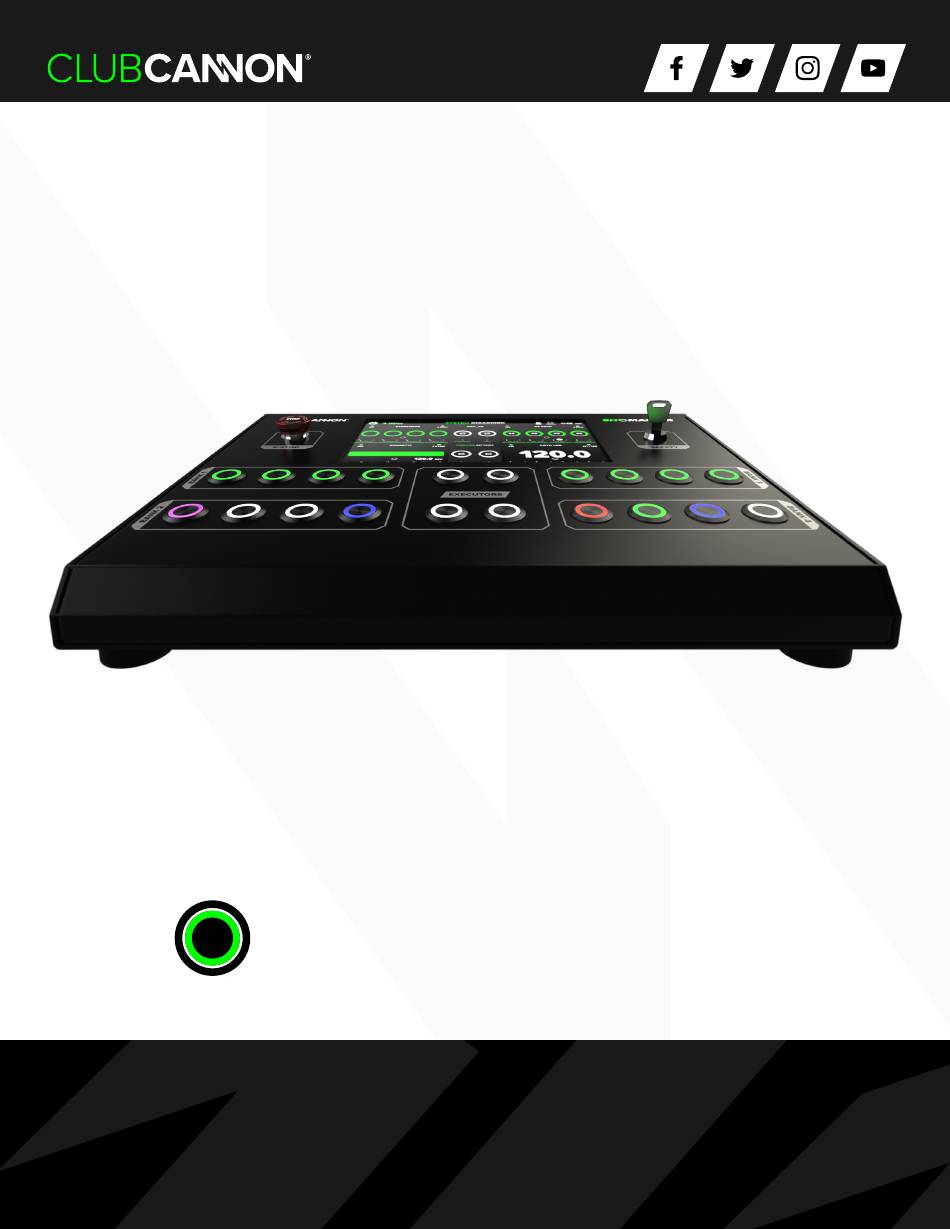

- Page 1 MASTER User Manual VERSION 1.0 SEPT 2021...
- Page 2 Congratulations on your purchase of the ShoMaster Special Effects Console. This manual will provide an overview of the ShoMaster functions, capabilities, and instructions for proper operation. If you have questions outside the scope of this manual, feel free to contact us directly.
- Page 3 INCLUDED ITEMS The following items are included with the purchase of each ShoMaster. If you need replacement items, contact Club Cannon, 888-804-8175 / info@clubcannon.com. SHOMASTER CONSOLE TRUE1 CABLE 2x SAFETY KEY Special Effects Console 6’ Edison to True1 cord Used for arming & disarming the ShoMaster Console.
-
Page 4: Table Of Contents
TABLE OF CONTENTS QUICK START GUIDE .................. 1 HARDWARE OVERVIEW .................2-3 HOME SCREEN ..................4-5 GLOBAL SETTINGS ..................6 BANK SETTINGS ..................7-8 BUTTON SETTINGS ..................8 BANK SETTINGS ..................9 - DISPLAY STYLES ................... 9 - NO TIMER / SEPARATE TIMERS ............9 - DAISY CHAINED TIMERS .............. -
Page 5: Quick Start Guide
QUICK START GUIDE BOOT SHOMASTER The ShoMaster accepts 110-240v AC. If you plan to utilize the AC Outputs, make sure the connected equipment’s voltage requirement matches the input voltage being sent to the ShoMaster. BACK MODES NAME DESCRIPTION CHANNELS KEY CH Select the mode(s) that match the equipment you plan to operate. -
Page 6: Hardware Overview
HARDWARE OVERVIEW CONSOLE FRONT EMERGENCY 10.1 INCH CAPACITIVE SAFETY STOP SWITCH TOUCH SCREEN KEY LOCK 16x CUE BUTTONS 4x EXECUTOR BUTTONS (RGB ASSIGNABLE) (RGB ASSIGNABLE) EMERGENCY STOP When pressed, all AC outputs are disabled & DMX values are set to 0. SAFETY KEY LOCK Key lock enables &... - Page 7 One full universe of optically isolated DMX output and input. - External DMX controller/console can; • Trigger AC outputs • Trigger SHOMASTER timers • Input starting channel can be offset Export and import save files from flash drive. Supports FAT, FAT16 & FAT32 drive formatting.
-
Page 8: Home Screen
HOME SCREEN This page features quick access to settings, bank modes, bank addresses, timers, executor settings, system lockout & more. When safety key is in the armed position, the console will be locked to this page, and the touch screen’s input will be disabled. “LOCK SYSTEM” button is used to disable the console when user is not present. - Page 9 HOME SCREEN STATUS SYSTEM SETTINGS KEY-LOCK STATUS DMX INPUT STATUS SYSTEM SYSTEM DISARMED DISARMED 1:15 1:15 LOCK LOCK SYSTEM SYSTEM SCREEN CONTROLS ENABLED SCREEN CONTROLS ENABLED DMX512 DMX512 STREAMERS STREAMERS DS CRYO DS CRYO FOH_FX FOH_FX 4 ZONE 4 ZONE 4 ZONE 4 ZONE SYSTEM LOCKOUT...
-
Page 10: Global Settings
This page will be referenced frequently throughout the manual. The Global Settings page is used to configure general settings of the ShoMaster. It also provides a path to access commonly used features like Device Patch, RDM Settings, Executor Settings, and Save Files. -
Page 11: Bank Settings
BANK SETTINGS The ShoMaster has 4 available banks, each of which can be customized. To access this page, tap the cog icon in respective bank (located on the home screen). Tank timer values can be calculated and set from the “TANK CALCULATOR”... -
Page 12: Bank Settings
BANK SETTINGS DS CRYO BUTTON SETTINGS MODE ADDRESS TANK CALCULATOR FOR THIS BANK SET STARTING ADDRESS Each cue button can be customized to display a different color & name. Bump (momentary) is the 20LB 50LB 75LB CLEAR 4 ZONE default cue function, but if desired “HOLD MODE” can be utilized for a latching cue. SECONDS TANKS BUTTON... -
Page 13: Display Styles
TANKS BUTTON SETTINGS BANK SETTINGS TAP ICON TO CHANGE COLOR JETS CURRENT DISPLAY STYLES JET 1 JET 2 JET 3 JET 4 ADD TO TIME ADD TO TIME Display styles can be selected for each bank. The applicable display style will depend on which mode and effects are being used on the specific bank. -
Page 14: Bank Settings
BANK SETTINGS TANK CALCULATOR Easily calculate the total amount of runtime of your CO2 tanks. The calculator factors in the number of jets and tanks, 1LB/Sec. Tapping on the “SECONDS” number will allow for custom time input for other FX. Tank times are not available for fog modes, even though the calculator is still displayed. -
Page 15: Mode Selection
MODE SELECTION The ShoMaster has 4 banks of control, with each bank being assigned a mode. These modes can be thought of as “fixtures” or “preset modes”. Currently there are a total of 8 “preset modes” and 4 custom modes. Custom modes are user configurable, with extensive options. -
Page 16: Multi Timer Modes
MODE SELECTION MULTI TIMER MODES BACK Multi timer modes have the ability to trigger multiple effects from the same bank. For example, 4 separate zones of CO2 jets can be used in a single bank of buttons with 4 separate timers. NAME DESCRIPTION CHANNELS... -
Page 17: Single Timer Modes
MODE SELECTION SINGLE TIMER MODES Single zone modes can be used in situations where all jets or effects are always triggered from the same group of tanks (or daisy chained jets, pulling from multiple tank pods). These modes display only one timer. BACK NAME DESCRIPTION... -
Page 18: Preset Modes
AC OUT, you will likely not want the output tied to the key lock switch. Checked box = key required for output. Unchecked box = key not required for output. In addition to the modes listed above, the ShoMaster also has 4x customizable modes, explained below. -
Page 19: Custom Modes
On the left side of the custom mode screen, user has several control options. By default, when configuring a custom mode, the ShoMaster will not actively send DMX output. If desired, user can toggle to LIVE, which will prompt a starting address be entered. This will enable DMX output in real time, starting at the entered DMX address. - Page 20 CUSTOM MODES SETTING VALUES When creating a custom mode, we recommend setting a function name to each channel. For example, if you are configuring a custom mode to control a CO2 Jet & LED, the channels would look like the below image.
- Page 21 CUSTOM MODES LIVE OUTPUT The LIVE OUTPUT feature is useful when user would like to preview or tweak the desired look before saving the cue. When the LIVE toggle is enabled, user will be prompted to enter a starting DMX address. This address should match the starting address of the product you are programming.
- Page 22 CUSTOM MODES MODE SETTINGS When setting up a custom mode, user will have several options available, including; • Number of channels (1 to 20) • Channel type (channel’s function) • Key Role (when checked, channel cannot be triggered unless key is in the “armed” position) •...
-
Page 23: Executor Setup
STREAMERS DS CR FOH_FX 4 ZONE EXECUTOR SETUP TIMERS INACTIVE Executors are a tool used to trigger multiple cues at once. There are a total of 4 executors, each of which SECONDS SECONDS have 2 available modes, GROUP & CHASE. Both the GROUP & CHASE modes need to be configured before use. -
Page 24: Executor Setup
EXECUTOR SETUP SETTINGS PANEL The display will show you the active executor that GROUP EXECUTOR EXECUTOR SETTINGS is being modified. We recommend naming both the CONFIGURE GROUPS & CHASES Group & Chase for easy identification. PRESS THE GROUP BUTTON YOU WOULD LIKE ACTIVE BUTTON GROUP EXECUTORS ARE ALWAYS ILLUMINATED WHITE. - Page 25 EXECUTOR SETUP GROUP SETUP GROUP EXECUTOR EXECUTOR SETTINGS CONFIGURE GROUPS & CHASES PRESS THE GROUP BUTTON YOU WOULD LIKE TO MODIFY. GROUP EXECUTORS ARE ALWAYS ILLUMINATED WHITE. PRESS ANY CUE BUTTONS TO INCLUDE IN THE GROUP. IF BUTTON LED IS OFF, IT IS NOT MAPPED TO THE CURRENT GROUP. IF BUTTON LED IS WHITE, IT IS MAPPED TO THE CURRENT GROUP.
- Page 26 EXECUTOR SETUP CHASE SETTINGS TOTAL STEPS CHASES ARE CONFIGURED USING A SERIES OF STEPS. EACH CHASE HAS A MINIMUM OF 1 STEP, MAX 20 STEPS. EACH STEP HAS AN INDIVIDUAL DURATION SETTING ON THE BUILDER PAGE. NUMBER OF LOOPS WITH LOOPS, THE CHASE CAN BE LOOPED FOR REPEATED PLAYBACK. WHEN THE BUTTON IS HELD DOWN, THE CHASE WILL RUN THIS NUMBER OF TIMES BEFORE AUTOMATICALLY DEACTIVATING.
- Page 27 SHOW BACKUP Backing up and loading show files has never been easier. The ShoMaster can save 10 shows internally, and 10 shows externally via USB. Shows can be loaded quickly from internal memory, or external USB drive. The extension for show files is .SHO To access saving, navigate to Global Settings >...
-
Page 28: Show Backup
UPDATE UPDATE CONTROLLER USB options will not be selectable until a drive is connected to the USB port on the ShoMaster. The SYSTEM UPDATE option will only be available if a valid update file is present on the USB Drive. -
Page 29: Dmx Input
DMX input status, and also allow DMX input to be disabled. In order for the incoming DMX to control the ShoMaster, DMX input must be turned on, and the key must be in the armed position. When DMX input is triggering cues, the timers will run, and the cue buttons may illuminate to indicate which cues are being triggered. -
Page 30: System Lock
SYSTEM LOCK System Lock is a feature that allows the ShoMaster to be passcode protected, similar to a smartphone. Useful when the operator needs to step away from the console, and doesn’t want to risk having any FX accidentally triggered. -
Page 31: Device Patch
DEVICE PATCH The Device Patch will perform all calculations to ensure that no DMX channels overlap between banks. The patch menu is a good starting place to calculate all banks starting addresses. User can also change modes directly from the Device Patch, streamlining the show setup. The Auto address feature will automatically parse the bank’s DMX addresses to the lowest available slot. - Page 32 IDENTIFYING FIXTURES, CHANGING MODES, and CHANGING ADDRESSES. Press DISCOVER FIXTURES to begin a discovery. If there is only one or a few fixtures connected to the SHOMASTER, discovery will be quick. The discovery method inherently becomes longer with each device that is within the RDM scope.
- Page 33 SETTINGS POST DISCOVERY USE ARROWS TO TAP TO IDENTIFY TAP TO CHANGE START SWITCH MODES ON FIXTURE ADDRESS OF FIXTURE SUPPORTED FIXTURES BACK DISCOVERY CURRENT PATCH DEVICE NAME FIXTURE MODE START BANK NAME START QUAD JET 4 CH LED JETS JET + LED DMX JET MKII DMX JET MKII...
-
Page 34: Device Troubleshooting
• Drive must not exceed 32GB in capacity. recognized • See instructions included with update files. Software update failed No user serviceable parts inside. If your issue is not listed or the suggested solution did not solve the issue, contact Club Cannon. - Page 35 CONSOLE SPECIFICATIONS 17.75” 13.40 0.64 WEIGHT: 10LB VOLTAGE: 110-240v AC 4.5KG 50-60hz DIMENSIONS: CONSUMPTION: 17.75” W x 13.75” L x 14” H 10W Standalone 197 MM x 349 mm x 356 MM Up to 10A w/ AC outputs REQUIRED FOR USE OF AC OUTPUTS RECOMMENDED AC OUTPUTS: Pelican 1560 - 20”...
-
Page 36: Page Left Blank Intentionally
Page left blank intentionally. -
Page 37: Safety Warning
Always fasten tanks to avoid tipping, rocking, or being tampered with. When feasible, keep tanks out of direct sunlight. ● ● In an emergency situation, utilize the ShoMaster’s integrated E-STOP. This will set all DMX channels to 0, and disable all of the AC Outputs. ● ●... -
Page 38: Contact Us
CONTACT 856 Ricardo Ct, San Luis Obispo, CA 93401 888-804-8175 info@clubcannon.com ● www.clubcannon.com © CLUB CANNON 2021...
