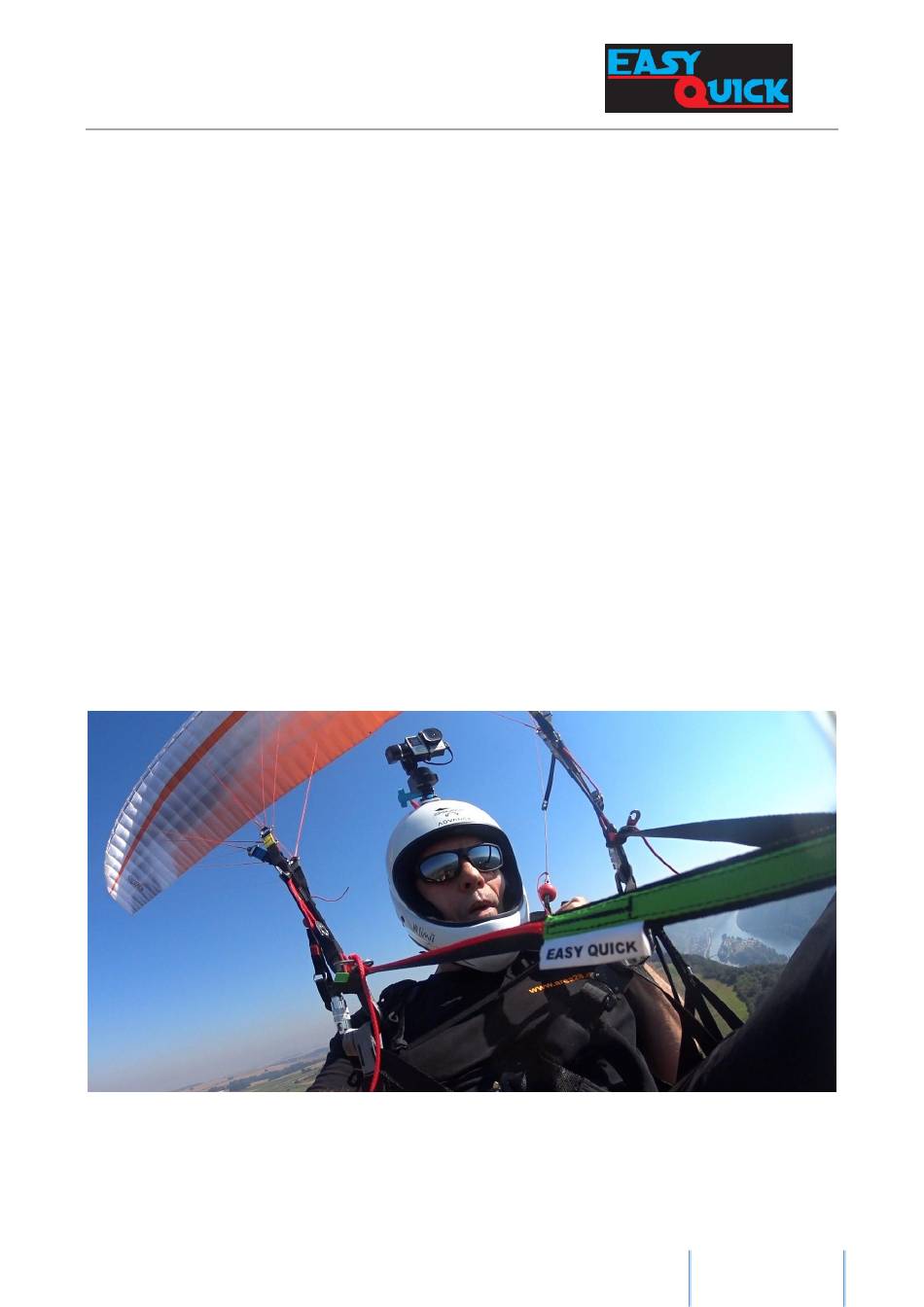

- Page 1 Manual Towline Release „Easy Quick T“ Version: 26.08.2015...
-
Page 2: Table Of Contents
2. Technical Data ............................3 3. Scope ................................3 4. Harness attachment ........................... 4 4.1. Attaching the Easy Quick to the harness carabiners................4 4.2 Pre-accelerator attachment ........................6 5. Towline attachment ............................ 7 6. Pre-flight check ............................9 7. -
Page 3: Manufacturer
1. Manufacturer Dietmar Mathes Pfirsichweg 37a D-86169 Augsburg Phone: +49 (0) 821-54371145 Mobile: +49 (0) 176- 45698513 Website: www.schleppklinke.de Mail: dietmar.mathes@web.de 2. Technical Data Type: single-stage, two-part quick release for paragliders with integrated towing adaptor Activation: sliding sleeve (clamping sleeve) Max. -
Page 4: Harness Attachment
4. Harness attachment 4.1. Attaching the Easy Quick to the harness carabiners. For security reasons, the “Easy Quick T“ towline release device can only be attached to the harness in the manner described in this document. Therefore, the loop of each Easy Quick strap, left and right, are wrapped around the outside of the main riser loop (left main riser loop shown in illustration 4.1) and connected to the carabiner. - Page 5 Easy Quick towline release as part of a pre-flight check (release check at ground level)!
-
Page 6: Pre-Accelerator Attachment
4.2 Pre-accelerator attachment After attachment of the Easy Quick towline release device to the main carabiners, the pre-accelerator lines are attached to the Inglefield clips (see illustration 4.3). Illustration 4.3: Pre-accelerator attachment The pre-acceleration has to be adjusted for each flight before first use. -
Page 7: Towline Attachment
5. Towline attachment The “Easy Quick T” system can be connected quickly and easily to the towline. By pulling back the locking sleeve the attachment lug is exposed. After threading the Easy Quick towline release line through the towline end fitting, hang the release line loop over the lug. - Page 8 Illustration 5.2: Release line attachment closed locking sleeve Illustration 5.3: Easy Quick release closed Version: 26.08.2015...
-
Page 9: Pre-Flight Check
3. Easy Quick locking sleeve is accessible without any obstruction. 7. Towline release. The “Easy Quick T” system is designed in such a way that it can be released on or off load. To do so, the locking sleeve must be pulled back towards the pilot. -
Page 10: Care And Maintenance
It is recommended to wear a full-face helmet to be protected from the towline recoil in case of a towline break. The use of the Easy Quick tow release is at your own risk. The manufacturer refuses any liability for direct or indirect damages including consequential damages which could arise from using the towline release. - Page 11 Notes _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ ________________________________________ Version: 26.08.2015...
