Summary of Contents for NETOGY UPS100-PLUS

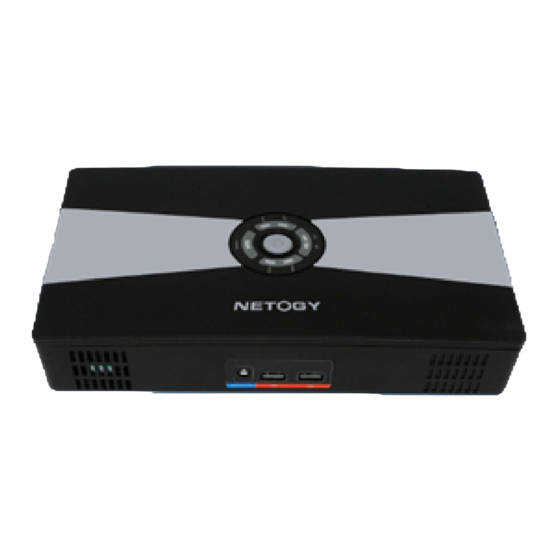

- Page 1 MINI 14400mAh DC UPS / POWER BANK UPS100-PLUS USER MANUAL Thank you for choosing our UPS. Before operating this unit, please read the USER MANUAL carefully to ensure that the best possible performance is obtained.
-
Page 2: Box Content
1. Box Content 1 x Multi-output power 1 x AC 1 x Y cable 2.5mm backup mini UPS unit power cable Male to Male (50cm) 1 x Straight cable 2.5mm 2 x Adapters (2.5mm 1 x User Manual Male to Male (1m) Female to 2.1mm Male) 2. - Page 3 BACK 19V 5A 9V / 12V 9V / 12V DC 12V / 5A Output 3A Output Voltage Switch Output Input 3. Features • Emergency uninterruptible power supply - perfect for load shedding. • Can be used as a Power Bank. •...
-
Page 4: Step 1: Connecting The Power Cable
STEP 1: Connecting the power cable Connect the one end of the provided AC/Mains Power Cable to an electrical outlet and the other end to the AC (Mains Power) Input of the UPS100-PLUS, labelled “INPUT 100-240Vac”. Electric Outlet INPUT 100-240V AC... - Page 5 STEP 3: Switching the UPS on Switch the UPS100-PLUS on by pressing and holding the ON/OFF power button for 2 to 3 seconds on the UPS. ON/OFF power button 5. Example Diagrams Electric Outlet Router Fibre ONT Laptop or 19V...
- Page 6 6. LED Explanation Description AC/Mains power on Green Maximum Output power exceeded - USB Status Yellow ports disabled AC/Mains power off - using battery Selector switch is set to 12V and a device Green is connected to the Yellow 9V/12V Output Selector switch is set to 9V and a device is Green connected to the Yellow 9V/12V Output...
-
Page 7: Troubleshooting
Physical Unit Dimension (mm) 253 x 146 x 45mm Net Weight (Kg) 0.7kg Environment Operating Temperature 0° - 40° C 20% - 90% Humidity Noise Level Less than 40dB Product specifications are subject to change without notice. To ensure the safety of transportation, the battery is not fully charged when leaving the factory. - Page 8 Keep the UPS out of reach of children and unauthorised persons. Device Support Information Device Support: +27 (0) 10 824 0049 Operating Hours: 08:00 – 17:00 (Mon – Thurs) 08:00 – 16:00 (Fri) www.netogy.co.za Copyright © Nology (Pty) Ltd | E&OE...
