Atomberg Ozeo Instruction Manual

WARNING
DO NOT use the fan regulator as the fan is operated using a remote.
Eliminate the regulator by using a direct connection from the switch to the fan.
SLEEP mode adds smart comfort, as the temperature drops over the night and if
you wish to auto-reduce the speed.
With TIMER mode, you can switch OFF/ON the fan automatically after set hours to
further save energy.
Remote key Function Description
Power ON /OFF Switches ON the fan
Switches OFF the fan,
1-5 Fan speed Gradual change of
control speed from low to high
B Boost mode Boost mode speed
Timer OFF Timer/ Fan automatically switches
•
Wakeup OFF/ ON after the set hours
Timer (1,2,3 & 6 Hrs). When timer
•
key is pressed for first time,
timer set for 1Hr. If timer for
•
1 Hr is already set and timer
key is pressed, then timer is
set for 2 Hr. Similarly, 3 and
6 Hr will set.
•
When timer for
6 Hr is already set and timer
key is pressed, it will disable
Timer.
Sleep Reduce speed When sleep key is pressed
•
of fan by 1 for first time, sleep mode is
enabled. Sleep Mode operates
for 4 Hr duration. After 2 Hr
time duration speed of fan is
reduced by 1 and after next
2 Hr time duration speed is
further reduced by 1. Afterwards,
the fan continues to run on a
reduced constant speed. Fan
speed will not reduce below
speed 1.
If sleep mode is already set
•
and sleep key is pressed, it will
disable sleep mode.
LED LED mode When LED key is pressed for
first time, it will turn ON LED.
If LED is ON and LED key is
pressed, it will turn OFF LED.
Sleep mode will not work if fan is off.
Note:

TROUBLESHOOTING

Your ceiling fan is designed to be longlasting with a strong body and well-tested
electronics, however if any problem arises, please refer to the guidelines shared.
Please contact a local electrician or service engineer if you need any help.
Problem Cause Solution
Fan does Fuse down / MCB Check fuse of the MCB on the mains.
not start shut off
Loose wire connection Check the wire connection and restore the
to fan or to the switch connection
on the panel
Fan still does not start Please contact the service number provided.
Regulator is connected It is recommended that the regulator should not
be connected to this ceiling fan and it is instead
to the fan
controlled using the remote provided with it.
290mm X 210mm: same size artwork
Problem Cause
Fan Bearing inside
making the housing
noise has problems
Fan blades are not
seated properly on
the motor
Shackle kit rattling
Canopy is touching
the body
LED status
LED fades OFF
Canopy is touching
LED fades OFF slowly
the ceiling
LED fades OFF
Fan is Nut holding motor
wobbling shaft and the down
rod is loose
LED fades OFF
Nut holding down
LED blinks
rod and shackle kit
Timer1 - 1 time
is loose
Timer2 - 2 times
Screws in shackle kit
Timer3 - 3 times
and the ceiling hook
Timer6 - 6 times
are loose
Timer Disable - LED
fades OFF slowly Fan blades are not
seated properly on
the motor
Fan blades are out
of balance
Sleep Mode Enable -
Restart/ Regulator not
LED fades OFF
speed bypassed
Sleep Mode Disable -
variation
LED fades OFF slowly
Blades have wrong
sweep

MAINTENANCE

Periodic cleaning of your ceiling fan is the only maintenance needed.
When cleaning, use only a soft lint-free cloth or brush to avoid scratching the
smooth paint finish. You can use moist cloth to remove stains if any. However, do
not use water directly. Abrasive cleaning agents are not required and should be
avoided to prevent damage to the outer finishing.
WARNING
LED mode enable - LED
Do not use water when cleaning your ceiling fan. It could damage the motor by
glows continuously
causing short-circuit and create the possibility of an electrical shock.
LED mode disable -
LED OFF
Do not bend the blades while cleaning. A bend in the blade may result in unstable
fixing and affect the air delivery.
ATOMBERG TECHNOLOGIES PVT LTD
Corporate office: Rupa Solitaire, Office No. 1205
Millenium Business Park, Mahape, Navi Mumbai 400 710.
Manufacturing unit: Plot No D -130 A & B, TTC Industrial Area
Shirawane, Navi Mumbai 400 706.
Solution
This ceiling fan is designed to be longlasting.
However, after many years of use the bearing
may wear off and may need to be replaced.
Make sure the blades are properly fastened to the
body. Loose connection may cause accidents.
Make sure that the screws and nuts are securely
fastened along with washer provided.
Make sure that the canopy and the wire that
connects the fan are not touching the body of
the motor.
Make sure that the canopy is not touching the
ceiling.
Securely fasten the nut and bolts along with
washers as per the instructions provided in this
manual.
Securely fasten the nut and bolts along with
washers as per the instructions provided in this
manual.
Securely fasten the nut and bolts along with
washers as per the instructions provided in this
manual.
A common mistake is fixing the blade in the
reverse direction. Please set it right and securely
fasten the screws.
Make sure that the blades are not bent during
cleaning. Also, interchanging them helps balance
the blades.
Make sure the regulator is eliminated from the
connection.
Check the sweep of blades with the fan sweep
before assembling.
®
OZEO
INSTRUCTION
MANUAL
IMPORTANT NOTE:
Read this manual carefully before installing or
®

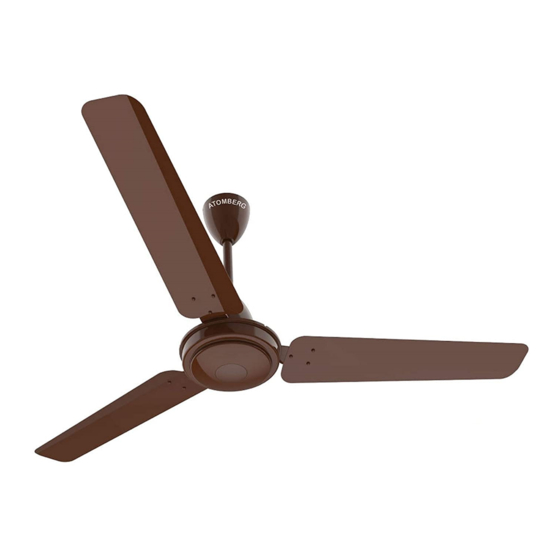

operating your new Atomberg OZEO Ceiling Fan.
Ensure you save this manual for future reference.
