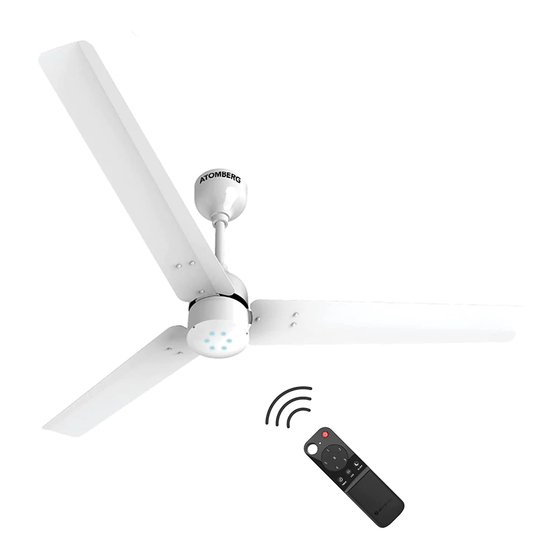

Atomberg RENESA Instruction Manual

WARNING
DO NOT use the fan regulator as the fan is operated using a remote.
Eliminate the regulator by using a direct connection from the switch to the fan.
SLEEP mode adds smart comfort, as the temperature drops over the night and if
you wish to auto-reduce the speed.
With TIMER mode, you can switch OFF or switch ON the fan automatically after
set hours to further save energy.
Remote key Function Description LED status
1 Speed 1 Sets the fan to speed 1 One LED will glow for 1 sec.
2 Speed 2 Sets the fan to speed 2 Two LED will glow for 1 sec.
3 Speed 3 Sets the fan to speed 3 Three LED will glow for 1 sec.
4 Speed 4 Sets the fan to speed 4 Four LED will glow for 1 sec.
5 Speed 5 Sets the fan to speed 5 Five LED will glow for 1 sec.
B Boost Speed Sets the fan to boost All LEDs blink thrice.
•
Timer OFF Timer/ Fan automatically Timer 1-One LED blinks twice.
Wakeup switches OFF/ON after the Timer 2-Two LEDs blink twice.
Timer set hours (1,2,3 & 6 Hrs). Timer 3 -Three LEDs blink twice.
• Number of LEDs suggest Timer 6 -All LEDs blink twice.
number of hours set. Timer Disable -Odd and Even
•
Press the Timer key 5 times, LEDs blink in a pattern thrice.
to disable Timer or once
after 6 Hr timer indication.
Sleep Reduce • Sleep mode works for Sleep Mode Enable - Four LEDs
speed of 4 Hours. Speed is reduced in square blink twice.
fan by 1 by 1 every 2 hours. Sleep Disable - Odd and Even
every 2 Afterwards, the fan LEDs blink in a pattern thrice.
hours for continues to run on a
4 hours reduced constant speed.
Fan speed will not reduce
below speed 1.
• If sleep mode is already
set and sleep key is pressed,
it will disable sleep mode.
LED LED ON/OFF Turn ON/OFF LEDs. All six LEDs will glow.
Note: Sleep mode will not work if fan is off.
CONTROL FAN SPEED WITHOUT REMOTE
The fan's main switch can be used to control its speed. Turn the fan's switch OFF
& ON repeatedly to set the fan to the desired speed. Delay between the toggling
between the OFF and ON buttons should be approximately 1 second. If toggling is
too fast or too slow, it will not work. While toggling, the LEDs will glow to indicate
the speed of the fan. Refer to the below table to control the fan using the switch.
Toggle (Turn
switch OFF Speed Descriptions
and ON)
1 time Previous Fan runs at the No indication
speed same speed
2 times Speed 1 Lowest speed 1 1 LED will glow and turn off
after 1 second.
3 times Speed 2 Speed 2 2 LEDs will glow and turn off
after 1 second.
4 times Speed 3 Medium speed 3 3 LEDs will glow and turn off
after 1 second.
5 times Speed 4 Speed 4 4 LEDs will glow and turn off
after 1 second.
6 times Speed 5 High speed 5 5 LEDs will glow and turn off
after 1 second.
7 times Boost Boost mode speed 6 LEDs will glow and turn off
after 1 second.
TROUBLESHOOTING
Your ceiling fan is designed to be longlasting with a strong body and well-tested
electronics, however if any problem arises, please refer to the guidelines shared.
Please contact a local electrician or service engineer if you need any help.
290mm X 210mm: same size artwork
Problem Cause
Fan does Fuse down / MCB shut off
not start
Loose wire connection to
fan or to the switch on the
panel
Fan still does not start
Regulator is connected to
the fan
Fan making Bearing inside the housing
noise has problems
Fan blades are not seated
properly on the motor
Shackle kit rattling
Fan is Nut holding motor shaft
wobbling and the down rod is loose
Nut holding down rod and
shackle kit is loose
Screws in shackle kit and
the ceiling hook are loose
Fan blades are not seated
properly on the motor
Fan blades are
out of balance
Restart/speed Regulator not bypassed
variation
Blades have wrong sweep
MAINTENANCE
Periodic cleaning of your ceiling fan is the only maintenance needed.
When cleaning, use only a soft lint-free cloth or brush to avoid scratching the
smooth paint finish. You can use moist cloth to remove stains if any. However, do
not use water directly. Abrasive cleaning agents are not required and should be
avoided to prevent damage to the outer finishing.
WARNING
LED status
Do not use water when cleaning your ceiling fan. It could damage the motor by
causing short-circuit and create the possibility of an electrical shock.
Do not bend the blades while cleaning. A bend in the blade may result in unstable
fixing and affect the air delivery.
ATOMBERG TECHNOLOGIES PVT LTD
Corporate office: Rupa Solitaire, Office No. 1205
Millenium Business Park, Mahape, Navi Mumbai 400 710.
Manufacturing unit: Plot No D -130 B, TTC Industrial Area
Shirawane, Navi Mumbai 400 706.
Solution
Check fuse of the MCB on the mains.
Check the wire connection and restore
the connection
Please contact the service number
provided.
CEILING FAN
It is recommended that the regulator
should not be connected to this ceiling
fan and it is instead controlled using
the remote provided with it.
This ceiling fan is designed to be
longlasting. However, after many years
of use the bearing may wear off and
may need to be replaced.
Make sure the blades are properly
fastened to the body. Loose connection
may cause accidents.
Make sure that the screws and nuts are
securely fastened along with washer
provided.
Securely fasten the nut and bolts along
with washers as per the instructions
provided in this manual.
Securely fasten the nut and bolts along
with washers as per the instructions
provided in this manual.
Securely fasten the nut and bolts along
with washers as per the instructions
provided in this manual.
A common mistake is fixing the blade in
the reverse direction. Please set it right
and securely fasten the screws.
Make sure that the blades are not bent
during cleaning. Also, interchanging
them helps balance the blades.
Make sure the regulator is eliminated
from the connection.
Check the sweep of blades with the fan
sweep before assembling.
INSTRUCTION
MANUAL
IMPORTANT NOTE:
Read this manual carefully before installing or
operating your new Atomberg RENESA Ceiling Fan.
Ensure you save this manual for future reference.
