YAMEE XL User Manual

Hide thumbs Also See for XL:

Advertisement

Quick Links

Yameebike.com
User Manual
Suitable for Yamee XL

Advertisement

loading
Need help?

Need help?

Do you have a question about the XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YAMEE XL

Summary of Contents for YAMEE XL

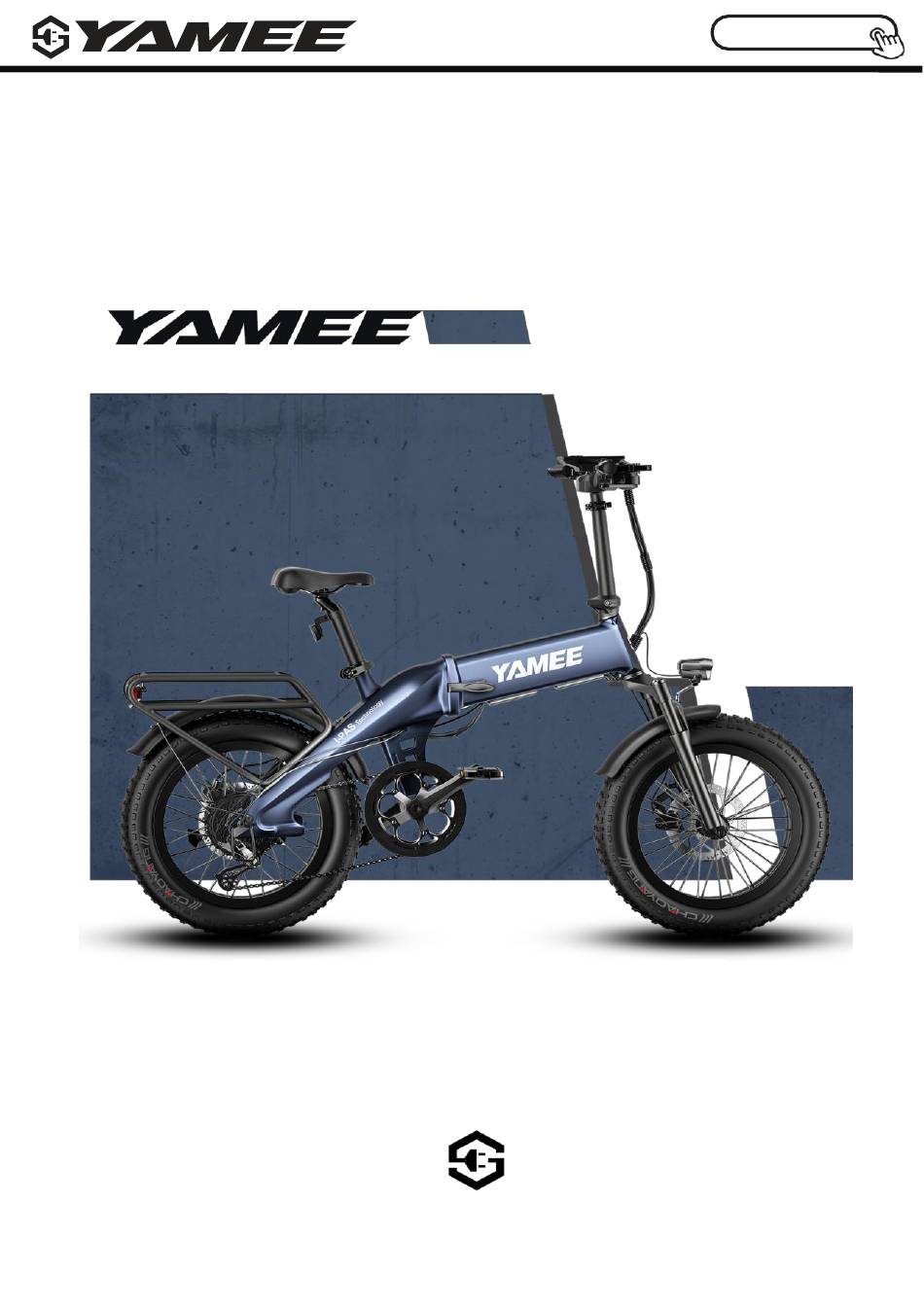

  • Page 1 Yameebike.com User Manual Suitable for Yamee XL...
  • Page 2 Yameebike.com...

  • Page 3: Table Of Contents

    Yameebike.com CONTENTS Part 1 Unboxing P 1-5 Part 2 Display Instruction P 6-12 Part 3 Common problems and Solutions P 13-15 Part 4 Use and Maintenance P 16-19 Part 5 After Sales and Warranty P 20-26...

  • Page 4: Part 1 Unboxing

    Yameebike.com Unboxing Part 1 The Yamee ebike come with 95% assembled. Only three steps to unfold: (1) Frame Unfolding Push the clamp to lock the frame solidly and make sure it is tight.
  • Page 5 Yameebike.com (2) Handlebar 1. Turn the hinge upward until the handlebar is fixed. 2. Push and lock the clasp. 3. Make sure the clasp is locked.
  • Page 6 Yameebike.com (3)Pedal Unfold Rotate the pedal up until the pedal is fully engaged. Fold To fold the pedal, push it from the front first, and then rotate it downward.
  • Page 7 Yameebike.com (4) Battery Removal and Charging When the charger light turns red, it means the battery is being charged; When the light turns green, it means the battery is fully charged. *Two ways to charge: 1. Remove the battery and charge. Insert the key and rotate until the battery is released, then pull the key out to remove the battery .
  • Page 8 Yameebike.com Transmission System 1.This function can only be adjusted while pedaling. 2. Depress this lever to shift to a higher gear. 3.Depress this lever to shift to a lower gear.

  • Page 9: Part 2 Display Instruction

    Yameebike.com Display Instruction Part 2 I Display Interface...
  • Page 10 Yameebike.com （1）Press the “i” button to display different information. 1.Miles traveled 2. Total miles traveled 3. Maximum speed 4. Average speed 5.Total traveled time...
  • Page 11 Yameebike.com （2）Driving Mode switching. 1. Eco Mode Activates at a slow speeds providing low acceleration ( Low energy consumption). 2.Normal Mode Activates at a normal speeds providing normal acceleration ( Normal energy consumption). 3.Sport Mode Activates at a high speeds providing high acceleration ( Higher energy consumption).
  • Page 12 Yameebike.com （3）Switching Walk-assistance Mode On/Off 1.Walk-assistance function may only be used when you walking the E-bike. 2.To activate the walk-assistance function, press the down-arrow button for 2 s. 3.The walk-assistance function will be switched off as soon as you release the button. （4）Assistance Level Selection 1.Press "+"...
  • Page 13 Yameebike.com II Introduction of common functions The following functions must restart the display after setting the instrument to take effect . Setting Access 1. press both the “+” button and the “-” button for 2s to access general settings menu. 2.
  • Page 14 Yameebike.com （2）Default Settings In case of the rider change the settings and then don`t remember the default settings, here are two images for reference. （3）Password Setting 1.This setting means power-on password setting when you turn on the display. 2 . After accessing the password settings, press the“+”or the“-”button to adjust the number and then press the“i”button to confirm digit one by one until the correct 4-digit password is completed.
  • Page 15 Yameebike.com (4)Cruise Control Cruise Control is to ride your bike at a constant speed. Press the“i” button to access the CRU setting. Press the“+”or“-”button to turn “off” into “on” to activate the Cruise Control. Press the throttle at a constant speed you want for 5s.

  • Page 16: Part 3 Common Problems And Solutions

    Yameebike.com Part 3 Common problems and solutions The battery cannot be charged, the display shows an abnormal battery power. Use a multimeter to check if the battery still has voltage. Check if the charger indicator is normal. (Red light means charging, green light means fully charged) The battery case is damaged, stop using the battery and contact us.
  • Page 17 Yameebike.com wires in front of the handlebar and see if it falls into the box. When an error code appears on the display. Error Code Definition Current Abnormality Throttle Abnormality Motor Abnormality Motor Hall Signal Abnormality Brake Abnormality Communication Abnormality ...
  • Page 18 Yameebike.com It appears that oil is leaking from the front fork. This is a normal phenomenon that occurs after a bicycle has been used for a period. Can people sit on the back seat? The maximum load of the back seat is 25kg. It is prohibited to sit on. Water leaks into the display.

  • Page 19: Part 4 Use And Maintenance

    Yameebike.com Use and Maintenance Part 4  Battery Maintenance  Fully charge the battery for the first use.  Do not use the battery in low power level.  Must use the specified charger for charging.  Do not charge the battery at high temperature (over 212 Fahrenheit/100°C).
  • Page 20 Yameebike.com  If it is a hydraulic brake, check regularly to see if there is any oil leakage.  Clean the brake regularly.  Motor Maintenance  Do not try to disassemble the motor.  If there areany problems with the motor, contact Rattan with a video.
  • Page 21 Yameebike.com Common failures and check  Problem Possible reason Remedy 1. Battery voltage is too low. Make sure the battery is  The speed adjuster 2. Speed adjusting handle connection fully charged doesn’t work or the may have become loose. Disconnect and ...
  • Page 22 Yameebike.com The indicating light Turn to the supplier for doesn’t turn green, The charger and the battery parameters adjustment or replace the the battery becomes don't match. seriously hot charger. 1. If your problem is not listed above. Contact the designated store 2.

  • Page 23: Part 5 After Sales And Warranty

    If you have any questions about our products, or would like to get the latest news and current deals from us, please feel free to follow us at: Website: www.yameebike.com Facebook: Yamee bike Instagram: Yamee ebike Service email： yameebike.com (Official Store) reibokservice@gmail.com (Amazon store)
  • Page 24 4. What is the shipping date? Yamee: Generally, we ship within 1-2 working days after you place an order. If this time is exceeded, please contact our customer service.
  • Page 25 During the service ordering process, you must notify us of any unauthorized modifications, or any repairs or replacements not performed by Yamee, that have been made to your product. We will not be responsible for any damage to the product that occurs during the repair process that is a result of any unauthorized modifications, repairs or replacements not performed by YAMEE.
  • Page 26 In most cases, we do not require you send the defective parts back to us. If applicable law requires Yamee to return a replaced item to you, you agree to pay Yamee the retail cost of the replacement item and...
  • Page 27 The replacement part will be accompanied by instructions on installation and any requirements for the return of the replaced part. Yamee reserves the right to decide if the labor costs relating to DIY Parts Service will be covered or not.
  • Page 28 Yameebike.com Yamee Bike Yamee bike Yamee bike +1 909 235 8465 info@yameebike.com yameebike.com...
