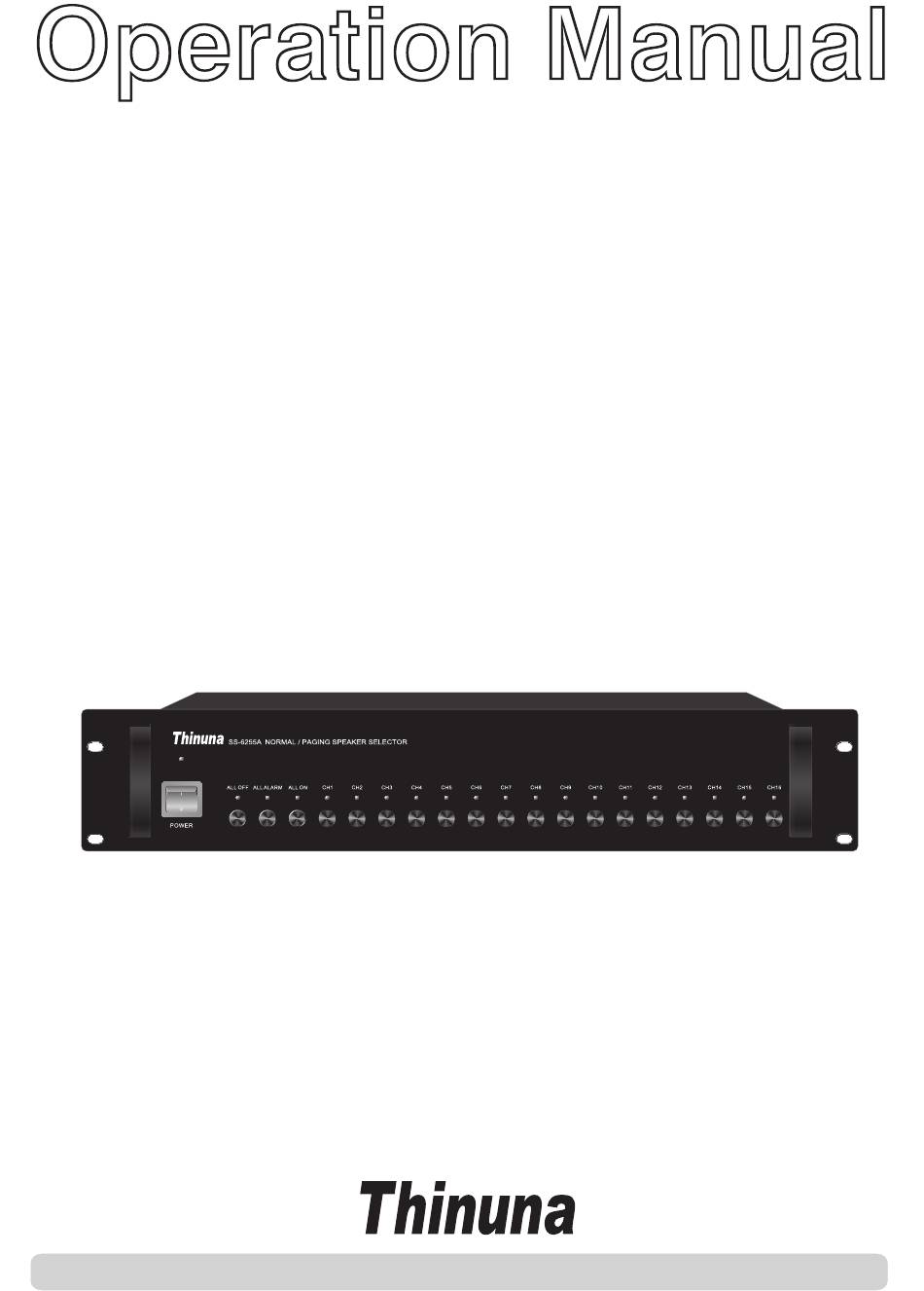

- Page 1 SS-6255A 16CH Normal/Paging Speaker Selector www.thinuna.com Version A...
-
Page 2: Table Of Contents
SS-6255A 16CH Normal/Paging Speaker Selector Contens Welcome................................... 1 Warning................................1 Installation Environment..............................2 Important Safety Instructions............................2 Features....................................3 Accessories..............................3 Front Panel..................................4 Real Panel..................................5 Specifications..................................6 Service.....................................7 Note....................................8 Note..................................9 www.thinuna.com Version A... -
Page 3: Welcome
We are sincerely trust these products will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right. Welcome to thinuna again, and thank you for becoming part of our worldwide extended family! Warning... -
Page 4: Installation Environment
Strong physical shocks to the unit may cause damage. Handle the unit with care. - Do not open the case or attempt repairs or modifications yourself This product contains no user-serviceable parts. Refer all maintenance to qualified Thinuna service personnel. Opening the case and/or tampering with internal circuitry voids the warranty. -
Page 5: Features
SS-6255A 16CH Normal/Paging Speaker Selector Features： * 16CH speaker selector with Normal /Paging amplifier input ； 4CH BGM amplifier input: A1(zone 1~4)，A2(zone 5~8）, A3(zone 9～12), A4(zone 13~16）; * 1 CH paging amplifier input: to zone 1～16; * 16 LED indicator show the status of mode: "Normal"mode: the LED lights to show the related zone is on... -
Page 6: Front Panel

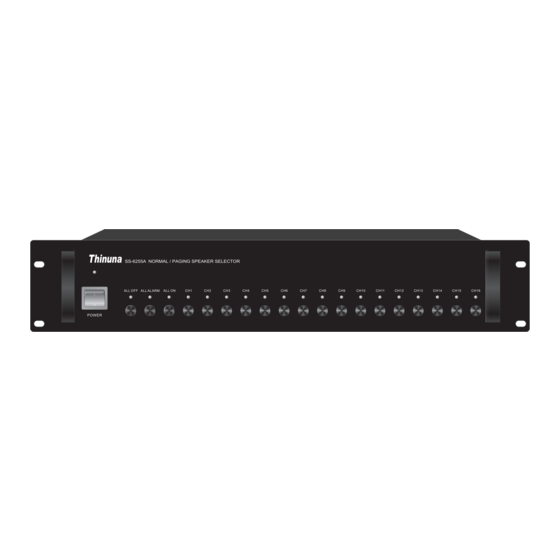

SS-6255A 16CH Normal/Paging Speaker Selector Front Panel Power LED Power On All Off All on All Paging On Zone Buttons and LED Note： * 16 LED indicator show the status of mode: - "Normal"mode: the LED lights to show the related zone is on;... -
Page 7: Real Panel
SS-6255A 16CH Normal/Paging Speaker Selector Rear Panel ALARM PAGING AMP2 AMP3 CH10 CH11 CH12 INPUT 485 INPUT 485 OUTPUT AMP1 AMP4 CH13 CH14 CH15 CH16 SN.: 1. RS-485 CONTROL PORT Connect to a Emergency panel or Alarm matrix to trigger a paing. -
Page 8: Specifications
SS-6255A 16CH Normal/Paging Speaker Selector Specifications Model No. SS-6255A BGM Amplifier Input 4CH，Max 2000W，each channel Paging Amplifier Input 1CH，Max 2000W Speaker Output 16CH，Max20A/150V，each channel Control RS-485 control in and control out power 220~240VAC，50/60Hz Power Consumption <45W Weight Temperature / Humidity 0°C~40°C， <95%... -
Page 9: Service
To obtain specific warranty information and available service locations contact Thinuna directly or the authorized Thinuna Distributor for your specific country or region. - Page 10 SS-6255A 16CH Normal/Paging Speaker Selector Note www.thinuna.com Page 8 Version A...
- Page 11 SS-6255A 16CH Normal/Paging Speaker Selector Note www.thinuna.com Page 9 Version A...
- Page 12 Notice: Thinuna Technology makes every effort to ensure the accuracy of information on this manual. The documents, graphics, and other information included in this manual may include technical inaccuracies, typographical, or other errors. Specifications are subject to change without notice.
