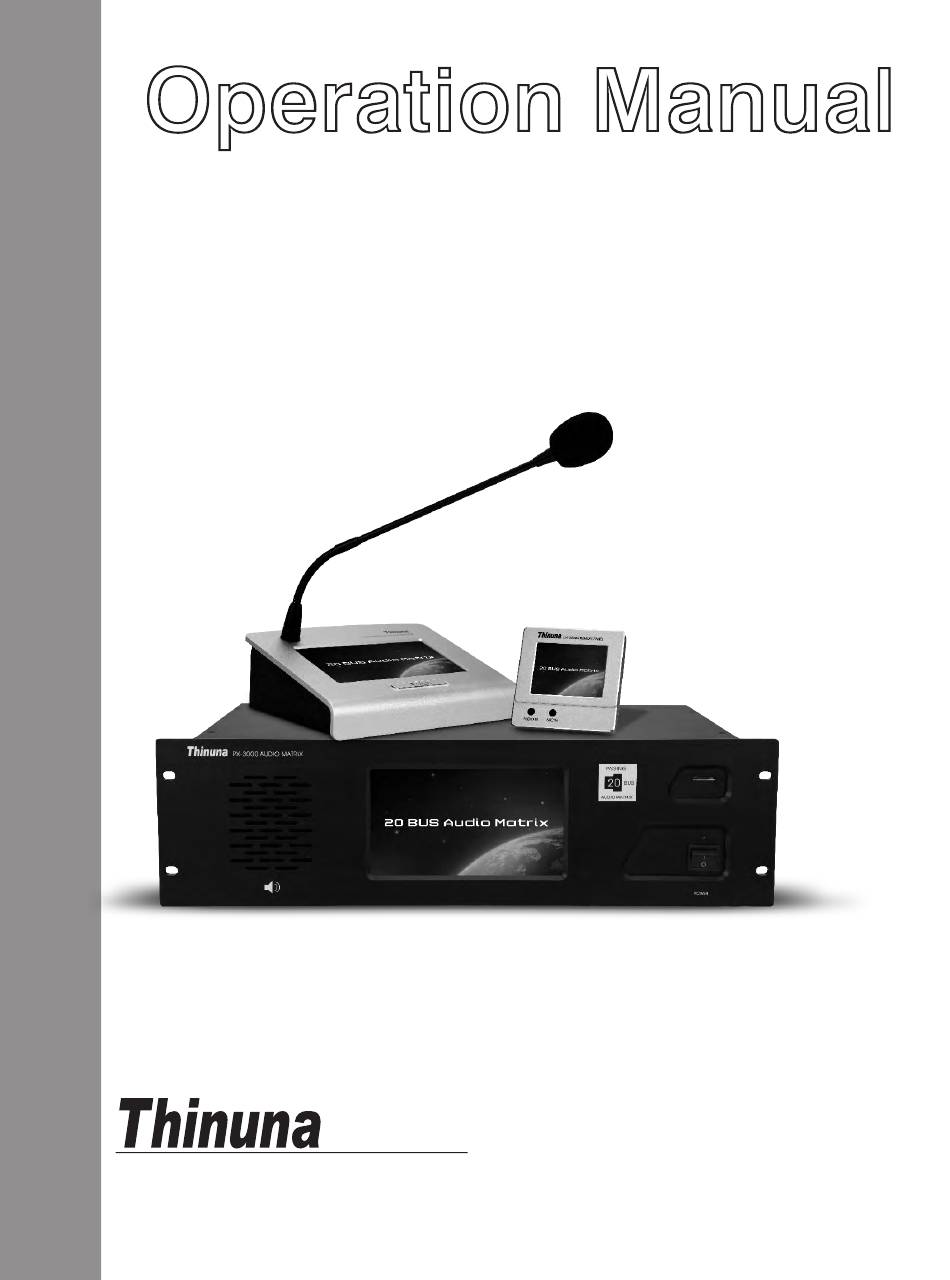

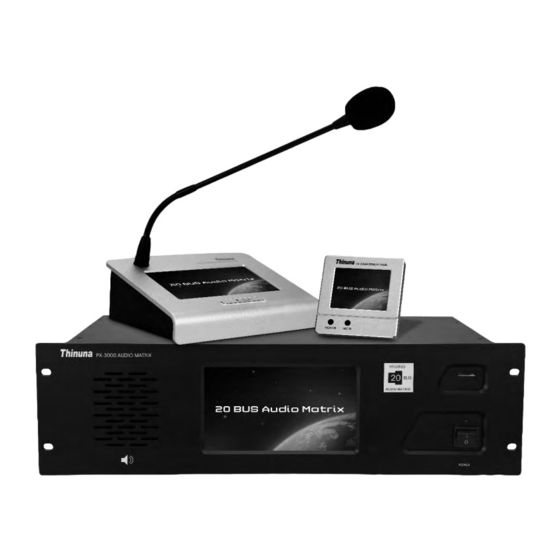

- Page 1 PX-3000 AUDIO MATRIX RM-3088 REMOTE MICROPHONE STATION LM-3088A REMOTE WALL PANEL Technology Innovative, Advanced, Reliable... version：1.1...
-
Page 3: Table Of Contents
Contens Welcome........................................1 Warning..........................................1 Installation........................................2 Import safety instructions..................................2 PX-3000 Audio Matrix Overview.........................................3 Front panel........................................4 Rear panel........................................5 Audio screen description................................... 7 Task screen description....................................9 Device screen description..................................10 Monitoring screen description................................1 1 Setting screen description..................................12 SD card playing screen description..............................14 RM-3088 Remote Microphone Station Front panel .........................................16... -
Page 4: Welcome
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. www.thinuna.com Page 1... -
Page 5: Installation
Always plug and unplug cables (including the AC mains power cord) by gripping the connector, not the cord. - Clear with a soft dry cloth Never use solvents such as benzine or paint thinner to clean the unit. Wipe clean with a soft, dry cloth. www.thinuna.com Page 2 Version A... -
Page 6: Overview
PX-3000 system can be applied on public address system which required multi channels audio streaming simultaneously. The PX-3000 is suitable for the system weather the application is big or small. This system can be used on the high building, hotel, bus station, entertainment venues, hospital, convention center, restaurant, school, etc. -
Page 7: Front Panel
-Max 32G, MP3 support any sampling rate Layer3 audio decoding. Micro SD1: for BGM or Built-in timer; Support FAT16 and FAT32 file system. 4. Power Switch and indicator -When the matrix power on, the LED on. When the matrix power off, the LED off. www.thinuna.com Page 4 Version A... -
Page 8: Rear Panel
7. External Timer Contact Input Port -Using this port to connect the external timer contact out and open above external timer audio signal. 8. External Timer Audio Signal Input Port -Using this port to connect the external timer audio signal. www.thinuna.com Page 5 Version A... - Page 9 21. Remote Wall Panel Input Port -0-8 pcs remote wall panel can be connected into each zone. Use the wall panel to select audio source, adjust volume, local mic/line audio input for each zone. www.thinuna.com Page 6 Version A...
-
Page 10: Audio Screen Description
5. Device Manu Button -Click this button can switch to the“Device”main screen. 6. Monitor Button -Click this button can switch to the“Monitor”main screen. 7. Set Manu Button -Click this button can switch to the“Set”main screen. www.thinuna.com Page 7 Version A... - Page 11 -Click this volume fader to change the volume for current zone. 13. Volume Up/Down Button -Click these two Up/Down button to add or reduce the volume for current zone. 14. Output Volume Indicator -These LED indicator will show the current output level dynamically. www.thinuna.com Page 8 Version A...
-
Page 12: Task Screen Description
Task Status Button Display the current task status and you can click this button to change the task status. Page Up/Down Button Click this button can heck all the task www.thinuna.com Page 9 Version A... -
Page 13: Device Screen Description
-Click this button can force check all the on line system devices. 3. Page button -Click this button can switch to another page screen. 4. Device Information Screen -Display all the device information in a group. www.thinuna.com Page 10 Version A... -
Page 14: Monitoring Screen Description
-Push the fader or click Up/Down button to add or reduce volume for current monitor channel . 6. Mute Button For Monitor Speaker -Click this button will mute the monitor speaker, click again will cancel the mute function. www.thinuna.com Page 11 Version A... -
Page 15: Setting Screen Description
-Click to set IP address, ID, choose the language and see the firmware version. When finished the setting, please click the save button to save the changes. 2. Input Gain Button -Click this button to set input gain for all input audio signal (See the picture below). www.thinuna.com Page 12 Version A... - Page 16 Click to change the different language or the touchscreen Firmware Version It show the current firmware version of the touchscreen Save Button When finished the setting, please click the save button to save the changes. www.thinuna.com Page 13 Version A...
-
Page 17: Sd Card Playing Screen Description
-Note: When only one song in a folder, just the “Play One”and “Repeat One” can be selected. when there are many songs in a folder, click the “Play” button to order play all the songs. www.thinuna.com Page 14 Version A... - Page 18 Audio Matrix Part 7. Current Folder Name -It shows the current folder name. 8. Folder Information -It shows all the folder and files in current Folder. 9. Page Up/Down Button Page Up Page Down Back to top www.thinuna.com Page 15 Version A...
-
Page 19: Front Panel
-Press this button to talk and press again to cancel (Push on / Push off mode). Pressing this button to talk and release this button to cancel (PTT mode: Push-to-talk) Each corresponding zone will display red or yellow paging status indicating that the zone is receiving an announcement. www.thinuna.com Page 16 Version A... -
Page 20: Rear Panel
Port1>2>3>4>5>6>7>8. The cable should be cat 5 or better twisted pair. (The RJ45 should be 568B type). Communications protocol: RS-485; Communication distance: max 1000 meters; Power: 24VDC; Audio: mono. 6. Reserved COM Port -Reseved com port for future use. www.thinuna.com Page 17 Version A... -
Page 21: Main Screen Description
Click this button to switch to the control screen. On the control screen, you can see and adjust the volume of every zone, and select the audio source for every zone. It is convenient remote control interface for the operator. www.thinuna.com Page 18 Version A... - Page 22 -Select all the zone which you want, and then press the physical talk button to page. Press the talk button again to cancel the page. Note: There are 8x16=128+4=132 zone buttons can be set by PC setup software. Please see the PC software part for details. www.thinuna.com Page 19 Version A...
-
Page 23: Sd Card Vod Screen Description
-Note: When only one song in a folder, just the “Play One”and “Repeat One” can be selected. when there are many songs in a folder, click the “Play” button to order play all the songs. www.thinuna.com Page 20 Version A... -
Page 24: Control Screen Description
-On this screen, you can control the volume and select the audio source for each zone. The operation will change with the matrix synchronously. 2. Matrix List -On the list, you can choose the matrix what you like and set the volume and audio source for each zone. www.thinuna.com Page 21 Version A... -
Page 25: Setting Screen Description
5. Backlight Setting Button -Click this button to set the screen backlight value. 6. Screen Saver Time Setting Button -Click this button to set the screen backlight time value. www.thinuna.com Page 22 Version A... - Page 26 -Push the fader or click Up/Down button to add or reduce the volume of master output audio. Note: all the volume should be set according to project status. Do not set the microphone volume to the minimum position to avoid no sound when doing a emergency paging. www.thinuna.com Page 23 Version A...
-
Page 27: Lm-3088A Remote Wall Panel Main Screen Description
7. Local Audio Input On/Off Button -Click this button to enable or disenable the local mic or line input. 8. Mute Button -Click this button will mute the volume for the related zone. Click again will regain the volume. www.thinuna.com Page 24 Version A... -
Page 28: Audio Select Screen Description
-Click this button will cancel all the selected audio source. You need to choose the audio source again when you cancel audio source. 5. Detailed Audio Source Screen -This screen shows the detailed audio input information when you click the matrix input or wall panel. www.thinuna.com Page 25 Version A... -
Page 29: Local Input Eq Screen Description
-Click the Up/Down button to add or reduce bass for local input. Setting Screen of Wall Panel Description On the set screen you can set the menu language and ID for current wall panel. 1.Language Switch Button -Click this button to change the menu language. www.thinuna.com Page 26 Version A... - Page 30 -When finished the ID address number selection, click this enter button to finish setting. Note: When first installation of the wall panel, you can enter number 51137 to download the data from matrix (Zone name, matrix input name, wall panel name etc.). www.thinuna.com Page 27 Version A...
-
Page 31: Bus Assistant Pc Setup Software
Operating PC should be meet he requirement s below: Windows XP/Windows 2000/Windows 7/Windows 8/Windows 10 Operating System: 2.4GHz Processor: Ram: Hard Drive: 10M/100M Network Card: 1024×768 Resolution: 1.2 Software Setup 1. Click the “20BUS Assistant setup.exe”, click “Next”. www.thinuna.com Page 28 Version A... - Page 32 20 Bus Assistant Setup Software Part 2. Change your installation folder and then click “next” to continue installation . www.thinuna.com Page 29 Version A...
- Page 33 Note: there are two password to login. One is the administrator password: admin . The administrator has all software permissions. Another is operator password: 123456 . The operator only has task configuration and setting operation. www.thinuna.com Page 30 Version A...
-
Page 34: Software Menu Description
System: click the system button will appear the windows as below. You can set the IP address of master matrix, change the administrator and operator password, choose menu language, change the login permission and check the software version. Connect: click this icon to connect the master matrix. www.thinuna.com Page 31 Version A... -
Page 35: Configuration Section Description
- Micro SD1(TF1) define windows: the TF1 card function on the front panel of master matrix can be set as background music or timer task. This choice will affect the plan config screen, please see the plan config part for detailed. www.thinuna.com Page 32 Version A... - Page 36 Move Up, click this button to move a zone which is chosen at present up in the list. ： Move Down, click this button to move a zone which is chosen at present down in the list. www.thinuna.com Page 33 Version A...
- Page 37 - Buttons assign operation: double click the zone in the available zones list windows will add the zone to RM keys windows. Similarly double click the assigned keys in the RM key window will delete the keys. Also you can click the cancel button to cancel all the zones which have been assigned. www.thinuna.com Page 34 Version A...
- Page 38 Similarly double click assigned zones in the selected zone windows will delete the zone. Also you can click the deselect button to delete all the zones which have been assigned. When finished all the contact input configuration click the “save and quit“. 2.6 Plan Task Config Screen www.thinuna.com Page 35 Version A...
- Page 39 Weekly cycle: set the time task with weekly cycle mode. Line input list: this windows will show the 8CH line inputs of master matrix. Available zone list: select the zones which you want to play the audio. www.thinuna.com Page 36 Version A...
-
Page 40: Setting Section Description
Volume setting includes matrix list and signal & port information. Double click the port which you want to adjust volume and will appear the new volume control windows as below. Then volume gain is from 0-20dB, the treble and bass EQ is from -5dB+5dB. www.thinuna.com Page 37 Version A... - Page 41 “no source”, it means that no audio source will be play to the zone. 3.3 Date Setting Windows On the date setting windows, you can modify the system time and then download time or upload time from master matrix. www.thinuna.com Page 38 Version A...
-
Page 42: Specification
<0.01% at 100Hz~10kHz >90dB Power Source DC24V, Provide from Audio matrix Power Consumption <2W Weight 0.2kg Dimensions 86(W) x 86(H) x 35(D) mm; Install bottom box Stander single 86 electrician bottom box (surface-mounted or flush-mounted) www.thinuna.com Page 39 Version A... -
Page 43: Block Diagram
Block diagram www.thinuna.com Page 40 Version A... -
Page 44: Application
Application www.thinuna.com Page 41 Version A... -
Page 45: Connections
Local Line Input Speaker Line 1 Speaker Line 2 Speaker Line 3 Speaker Line 4 Slaver Matrix 1 Local Microphone Local Line Input Speaker Line 9 Speaker Line 10 Speaker Line 11 Speaker Line 12 www.thinuna.com Page 42 Version A... -
Page 46: Quick Start Guide
And then you can set the proper volume for each zone on the control screen. The operation will change with the matrix synchronously. When finished paging, press the “Talk” button again to cancel the paging. www.thinuna.com Page 43 Version A... - Page 47 When finished paging, press the “Talk” button again to cancel the paging. Note: the emergency paging has the highest priority in the PA system. When a emergency paging is activating, the control output port will output a contact closure to activate a third party device. www.thinuna.com Page 44 Version A...
-
Page 48: Connection Of Phoenix Connector
Straight screwdriver insert the wire. Step 2: Tight the screw of terminal. Tight loosen Terminal screws Dismountable connector Earth Cold Shielding wire Remark Suggest for the Straight screwdriver: Blade width for 3mm Blade shape of screwdriver: www.thinuna.com Page 45 Version A... -
Page 49: Connection Of Volume Controller Override
3 Wire Volume Control Override Matrix Volume Control Override Terminal Blocks 3 Wire Volume Controller External 24VDC Power Supply Unit 4 Wire Volume Control Override Matrix Volume Control Override Terminal Blocks Amplifier Output Terminal Blocks 4 Wire Volume Controller www.thinuna.com Page 46 Version A... -
Page 50: Service
To obtain specific warranty information and available service locations contact us directly or the authorized distributor for your specific country or region. www.thinuna.com Page 47 Version A... - Page 52 Notice: Thinuna Technology makes every effort to ensure the accuracy of information on this manual. The documents, graphics, and other information included in this manual may include technical inaccuracies, typographical, or other errors. Specifications are subject to change without notice.
