Finer Form FF-TB011384 User Manual

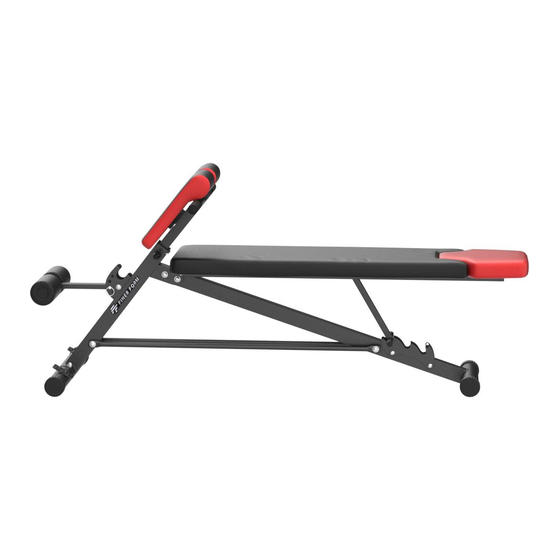

Multi-functional weight bench
Hide thumbs Also See for FF-TB011384:

Advertisement

Quick Links

Download this manual
Please Read User Manual Before
Assembling and Using the Bench
SKU: FF-TB011384

Advertisement

loading
Need help?

Need help?

Do you have a question about the FF-TB011384 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Finer Form FF-TB011384

Summary of Contents for Finer Form FF-TB011384

  • Page 1 Please Read User Manual Before Assembling and Using the Bench SKU: FF-TB011384...
  • Page 2 Thank You! Before we get started, we want to thank you for choosing Finer Form for your new exercise bench. We know you have many choices for at-home exercise equipment, so thank you for joining so many others and choosing us!
  • Page 3 The Maximum Weight Capacity for this product is 400 lbs. Only one person should use this piece of equipment at one time.
  • Page 4 Head Pad (5) Handle Bar (11) Back Pad (4) Support Frame (6) Support Pad (7) Main Frame (1) Front Upright Frame (8) Leg Press Frame (10) Adjustment Frame (3) Back Pad Support Tube (2) Connecting Rod (12) Front Base Tube (9)

  • Page 5: Part List

    PART LIST Part 1 Main Frame x1 Part 2 Back Pad Support Tube x2 Part 4 Part 3 Adjustment Frame x1 Back Pad x1 Part 6 Part 5 Head Pad x1 Support Frame x1 Part 8 Part 7 Front Upright Frame x1 Support Pad x2 Part 10 Part 9...

  • Page 6: Hardware List

    HARDWARE LIST Part 16 Part 13 Part 14 Part 15 Internal Hex Cap Carriage Bolt M8*60 x2 Arc Washer x2 Cap Nut M8 x2 Screw M10*70 x2 Part 20 Part 17 Part 18 Part 19 Internal Hex Cap Internal Hex Cap Flat Washer D8 x10 Flat Washer D10 x12 Screw M10*60 x1...
  • Page 7 ASSEMBLY INSTRUCTIONS Step 1 Main Frame (1) Leg Press Frame (10) Front Upright Frame (8) Front Base Tube (9) A) Fix the Front Base Tube (9) to the Front Upright Frame (8) with Carriage Bolts (13), Arc Washers (14) and Cap Nuts (15). B) Connect the Front Upright Frame (8) and the Main Frame (1) with Internal Hex Cap Screws (16), Flat Washers (20) and Nylon Lock Nuts (22).
  • Page 8 Step 2 Head Pad (5) Back Pad (4) Back Pad Support Tube (2) Adjustment Frame (3) A) Attach the Back Pad Support Tubes (2) to the Main Frame (1) with Nylon Lock Nuts (22) and Flat Washers (20). Please note that the holes on the sides of the Back Pad Support Tubes (2) need to face inside.
  • Page 9 Step 3 Connecting Rod (12) Connecting Rod (12) Fix the Connecting Rods (12) to the two sides of the Main Frame (1) and the Front Upright Frame (8) with Internal Hex Cap Screws (21), Plugs (25), Flat Washers (20) and Nylon Lock Nuts (22). Step 4 Support Pad (7) Fix the Support Pads (7) to the Support...
  • Page 10 Step 5 Handle Bar (11) A) Loosen the Adjustment Knob (24), Insert the Support Frame (6) into the opening of the Front Upright Frame (8). Find a desired position and tighten the Adjustment Knob (24), B) Insert the Handle Bars (11) to the Support Frame (6). Congratulations.

  • Page 11: Limited Warranty

    This warranty is limited to the non-commercial use of Finer Form products purchased in the United States. Finer Form will not be liable for any loss or damage, including incidental or consequential damages of any kind, whether based upon warranty, contract or negligence, and arising in connection with the sale, use or repair of the product.
