Summary of Contents for Master Gardner S-90

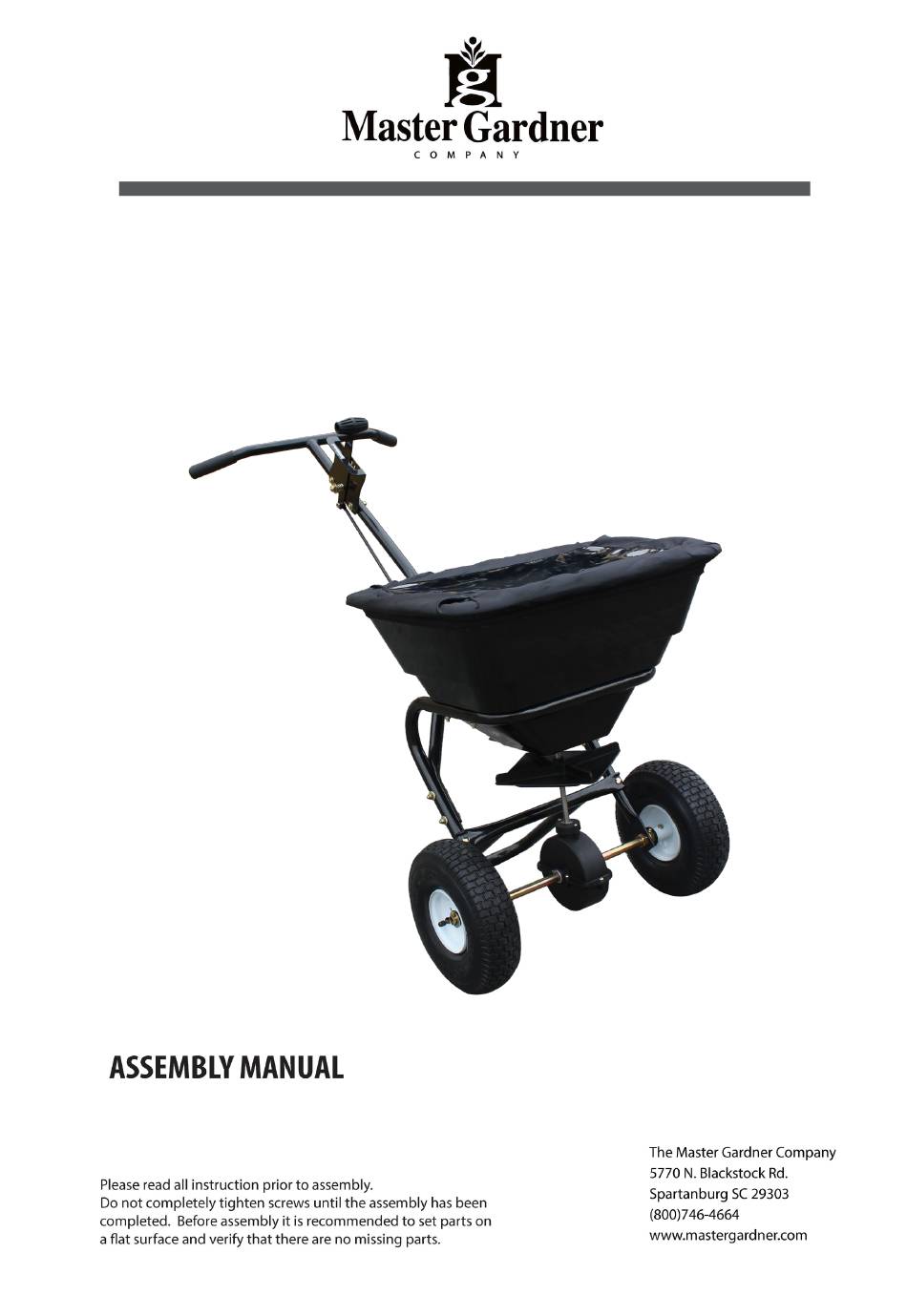

- Page 1 90 lb. CAPACITY BROADCAST SPREADER Model S-90 REV060717 BS0900...
-
Page 2: Table Of Contents
Table of Contents General Warnings and Rules ................. 3 Hazard Signal Word Definitions................4 Component & Hardware ..................5 Assembly Instructions ..................... 6 Operation Instructions ..................7, 8 Spreading Instructions ..................9, 10 Maintenance and Storage ..................11 Specification ......................11 Parts Drawing &... -
Page 3: General Warnings And Rules
GENERAL WARNINGS READ and UNDERSTAND this manual completely before using Push Spreader. Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the push spreader could result in serious injury to the operator or bystanders. Operation Warnings ... -
Page 4: Hazard Signal Word Definitions
Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury. -
Page 5: Component & Hardware
COMPONENT PARTS - 5 -... -
Page 6: Assembly Instructions
Assembly Instructions STEP 1: Installing the Support Leg 1. Attach the support leg (#29) to the installation tube assembly (#14) using square neck bolt M6x40 (#28), camber washer (#21) and nylon lock nut M6 (#13). 2. Attach the left and right support tube (#27) to the installation tube assembly (#14) using square neck bolt M6x40 (#28), camber washer (#21) and nylon lock nut M6 (#13). -
Page 7: Operation Instructions
Operation Instructions WARNING Before using the push spreader, review the instructions below and safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders. USING YOUR SPREADER 1. Inspect your spreader before each use. Make sure the wheels turn easily, and the gearbox moves when the spreader is pushed. - Page 8 Operation Instructions ADJUSTING THE FLOW CAUTION The spreader settings are guidelines only. The spreader should be calibrated prior to application to ensure accuracy. If you have a Push Spreader or Tow Spreader the settings are based on a walking speed of under 3MPH or towing speed of 5MPH.
-
Page 9: Spreading Instructions
Spreading Instructions CALCULATING AMOUNT OF MATERIAL NEEDED To calculate the amount of fertilizer you will need to cover your lawn, divide the coverage amount listed on the label by the weight of the fertilizer bag. For example a 10LB. bag of fertilizer with coverage of 10,000 square feet will distribute 1LB. - Page 10 Spreading Instructions ADDITIONAL SPREADER SETTING INSTRUCTIONS For materials that DO NOT use a typical 5,000 Sq. Ft, 10,000 Sq. Ft. & 15,000 Sq. Ft. coverage value. To obtain the proper spreader settings follow the steps below: 1) Find the total weight in lbs. of the product from the product label on the bag of material. 2) Find the coverage amount in square feet that the product is rated for from the product label on the bag of material.
-
Page 11: Maintenance And Storage
Maintenance and Storage WARNING Improper maintenance and storage of the push spreader may void your warranty. MAINTENANCE After each use clean material out of hopper and off of the impeller. • Rinse/dry inside and outside of the spreader after each use. •... -
Page 12: Parts Drawing & Parts List
Parts Drawing & Parts List - 12 -... - Page 13 Parts Drawing & Parts List Drawing No. Ref# Description Hopper NB03-00001-HO Nylon Washer BS125T-00009 Inner Hex Screw M6x40 9104-06040-BXG Open Type Blind Rivet M5x13 9504-05013-YH Flat Washer Ø5 9301-05000-BXG Open Type Blind Rivet M5x8 9504-05008-YH Revolving Shaft Sleeve N512-00009 Fixed Adjustable Plate BS125T-00001-PG Active Adjustable Plate BS125T-00002-PG...
- Page 14 BS090T-00001 Hex Bolt M6x20 9101-06020-CD Thank You for purchasing the S-90 Master Gardner Spreader. Please do not return this to the store and If you have any issues or questions, please call us at (864) 574-7868 or (800) 746-4664. The Master Gardner Company 5770 North Blackstock Rd.
