Master Gardner S-100 Assembly Manual

100 lb. capacity broadcast spreader
Hide thumbs

Advertisement

Quick Links

Download this manual

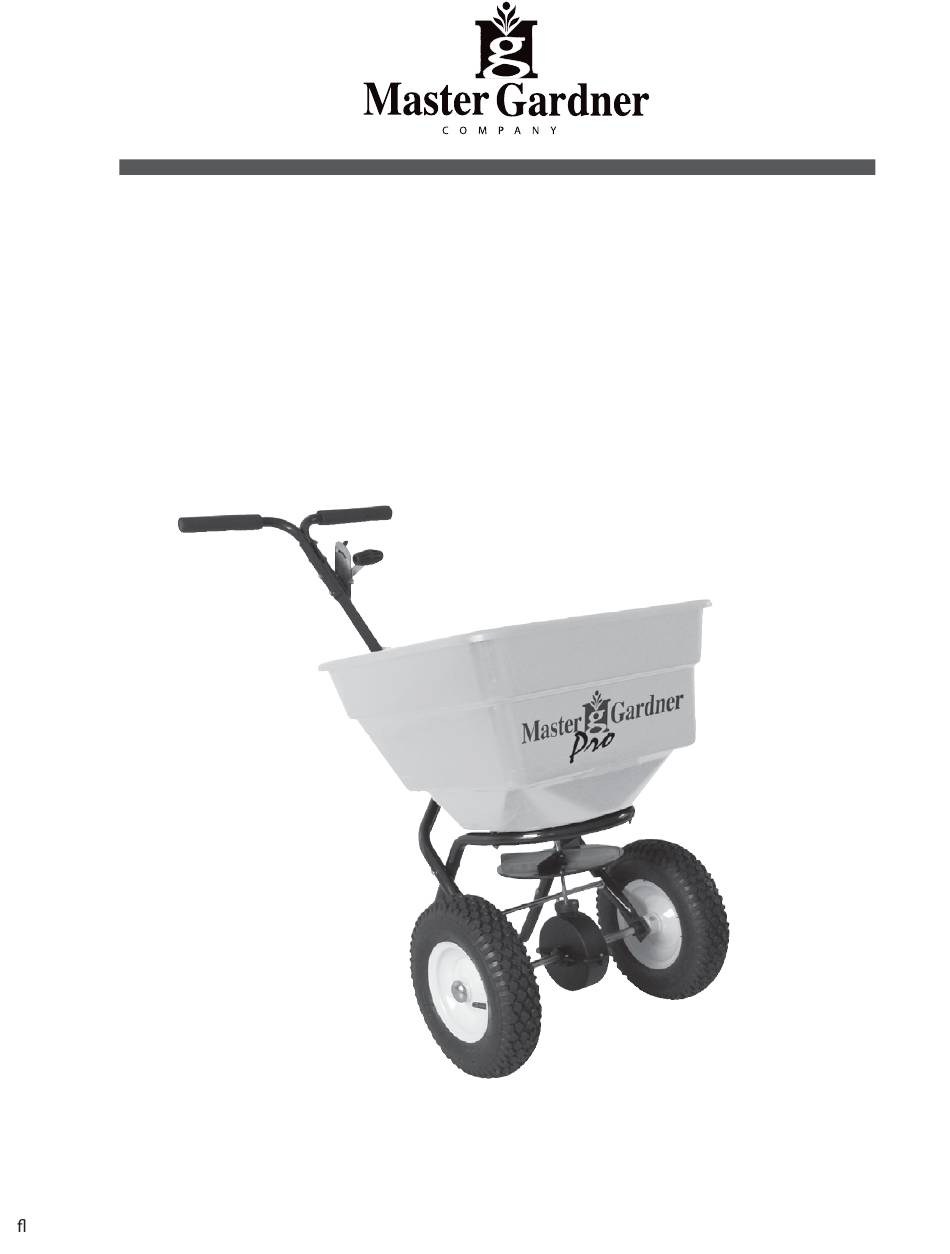

100 lb. CAPACITY
BROADCAST SPREADER
ASSEMBLY MANUAL
Model S-100
Please read all instruction prior to assembly.
Do not completely tighten screws until the assembly has been
completed. Before assembly it is recommended to set parts on
a at surface and verify that there are no missing parts.
The Master Gardner Company
5770 N. Blackstock Rd.
Spartanburg SC 29303
(800)746-4664
www.mastergardner.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Master Gardner S-100

Summary of Contents for Master Gardner S-100

  • Page 1 100 lb. CAPACITY BROADCAST SPREADER ASSEMBLY MANUAL Model S-100 The Master Gardner Company 5770 N. Blackstock Rd. Please read all instruction prior to assembly. Spartanburg SC 29303 Do not completely tighten screws until the assembly has been (800)746-4664 completed. Before assembly it is recommended to set parts on www.mastergardner.com...
  • Page 2 Remove and identify loose parts from carton and bag. Rain Cover Rain Cover...
  • Page 3 STEP 1: Install impeller onto the Gear Box & Axle Assembly. Insert Screw M4x20 through impeller then through Gear Box Axle. STEP 2: Install Wheel Assembly Frame on each side of the Gear Box Axle. Make sure the hole on Axle of Gear Box is to be on the right side when assembly as shown.
  • Page 4 STEP 3: Insert Inner Axle Bushing into Outer Axle Bushing and make sure they are tight neatly. Install right Tire Assembly to right Axle using bolt M5x45 and lock nut M5, and then install the Cap onto right Axle using a wooden or rubber hammer. Now install left Tire Assembly to left Axle, put a flat washer Ø16 and install the Cap onto left Axle using a wooden or rubber hammer.
  • Page 5 STEP 4: Put the Middle Connecting Handle between two Lower Handles of Wheel Frame Assembly, and then attach the Pivot & Bracket Assembly to the Lower Handles of Wheel Frame Assembly using bolts M6x55 and Lock Nuts M6. NOW GO BACK AND TIGHTEN ALL NUTS AND BOLTS STARTING WITH FIRST STEP.
  • Page 6 STEP 6: Install the Hopper onto Hopper Frame Assembly using bolts M6x45, lock nuts M6 and big washer Ø6.
  • Page 7 STEP7: (1) Push the handle to the lowest position. (2) Insert the upper end of Control Rod into the hole of Adjustable Handle. (3) Take off one of nuts from threaded pole and insert the threaded pole into the hole of Pivot & Bracket.(4) Then put on the nut again. (5) Insert the threaded pole of Adjustable Pole B into the hole of Adjustable Plate with a Flat Washer Ø6, and then put the lock nut M6 and Flat Washer Ø6.
  • Page 8 STEP 8: ADJUSTABLE. When you finished all above steps, if you find the three big holes at the bottom of hopper just match the three holes of adjustable plate. You don't need to do the following steps. If they are not match neatly, you may need to do the following steps. (1)Push the handle to the lowest position <downwards>.

  • Page 9: Parts Drawing

    PARTS DRAWING...

  • Page 10: Parts List

    PARTS LIST Ref# Description Qty Ref# Description Handle Spacer Shut off plate Carriage Bolt M6x25 Big Flat Washer Ø4 Teeth Lock Washer Ø8 Screw M4x12 Gauge & Lever Assembly Hopper Assembly Frame Adjustable Handle Pole Frame Brace Adjustable Handle A Hex Bolt M6X50 Adjustable Handle B Hex Bolt M6X35...
  • Page 11 Spreading Instructions CALCULATING AMOUNT OF MATERIAL NEEDED To calculate the amount of fertilizer you will need to cover your lawn, divide the coverage amount listed on the label by the weight of the fertilizer bag. For example a 10LB. bag of fertilizer with coverage of 10,000 square feet will distribute 1LB.
