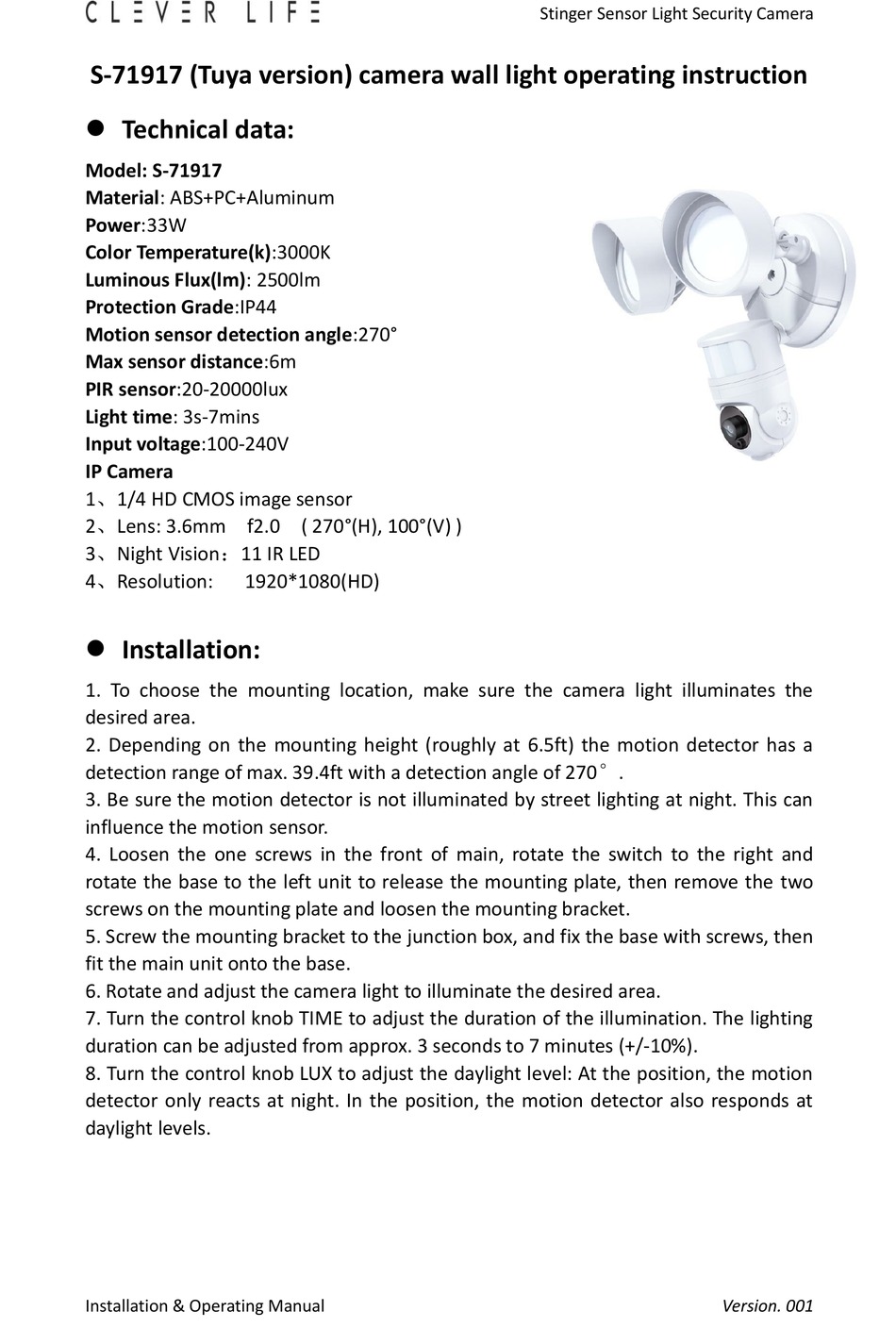

S-71917 (Tuya version) camera wall light operating instruction
⚫ Technical data:
Model: S-71917
Material: ABS+PC+Aluminum
Power:33W
Color Temperature(k):3000K
Luminous Flux(lm): 2500lm
Protection Grade:IP44
Motion sensor detection angle:270°
Max sensor distance:6m
PIR sensor:20-20000lux
Light time: 3s-7mins
Input voltage:100-240V
IP Camera
1、1/4 HD CMOS image sensor
2、Lens: 3.6mm f2.0 ( 270°(H), 100°(V) )
3、Night Vision：11 IR LED
4、Resolution: 1920*1080(HD)
⚫ Installation:
1. To choose the mounting location, make sure the camera light illuminates the
desired area.
2. Depending on the mounting height (roughly at 6.5ft) the motion detector has a
detection range of max. 39.4ft with a detection angle of 270°.
3. Be sure the motion detector is not illuminated by street lighting at night. This can
influence the motion sensor.
4. Loosen the one screws in the front of main, rotate the switch to the right and
rotate the base to the left unit to release the mounting plate, then remove the two
screws on the mounting plate and loosen the mounting bracket.
5. Screw the mounting bracket to the junction box, and fix the base with screws, then
fit the main unit onto the base.
6. Rotate and adjust the camera light to illuminate the desired area.
7. Turn the control knob TIME to adjust the duration of the illumination. The lighting
duration can be adjusted from approx. 3 seconds to 7 minutes (+/-10%).
8. Turn the control knob LUX to adjust the daylight level: At the position, the motion
detector only reacts at night. In the position, the motion detector also responds at
daylight levels.
