Clever Life Tuya Operating Instruction

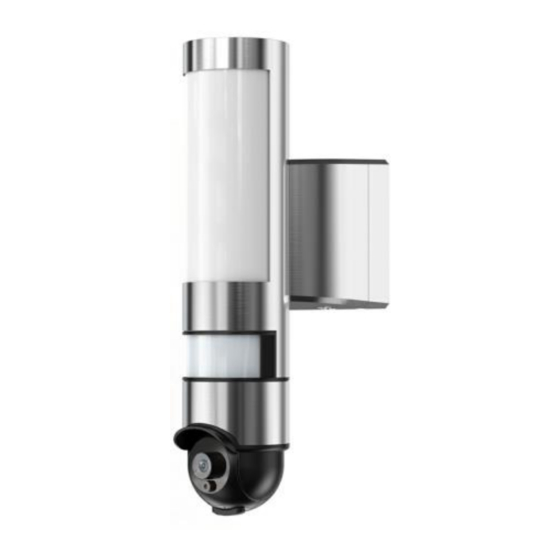

Shield Sensor Light Security Camera

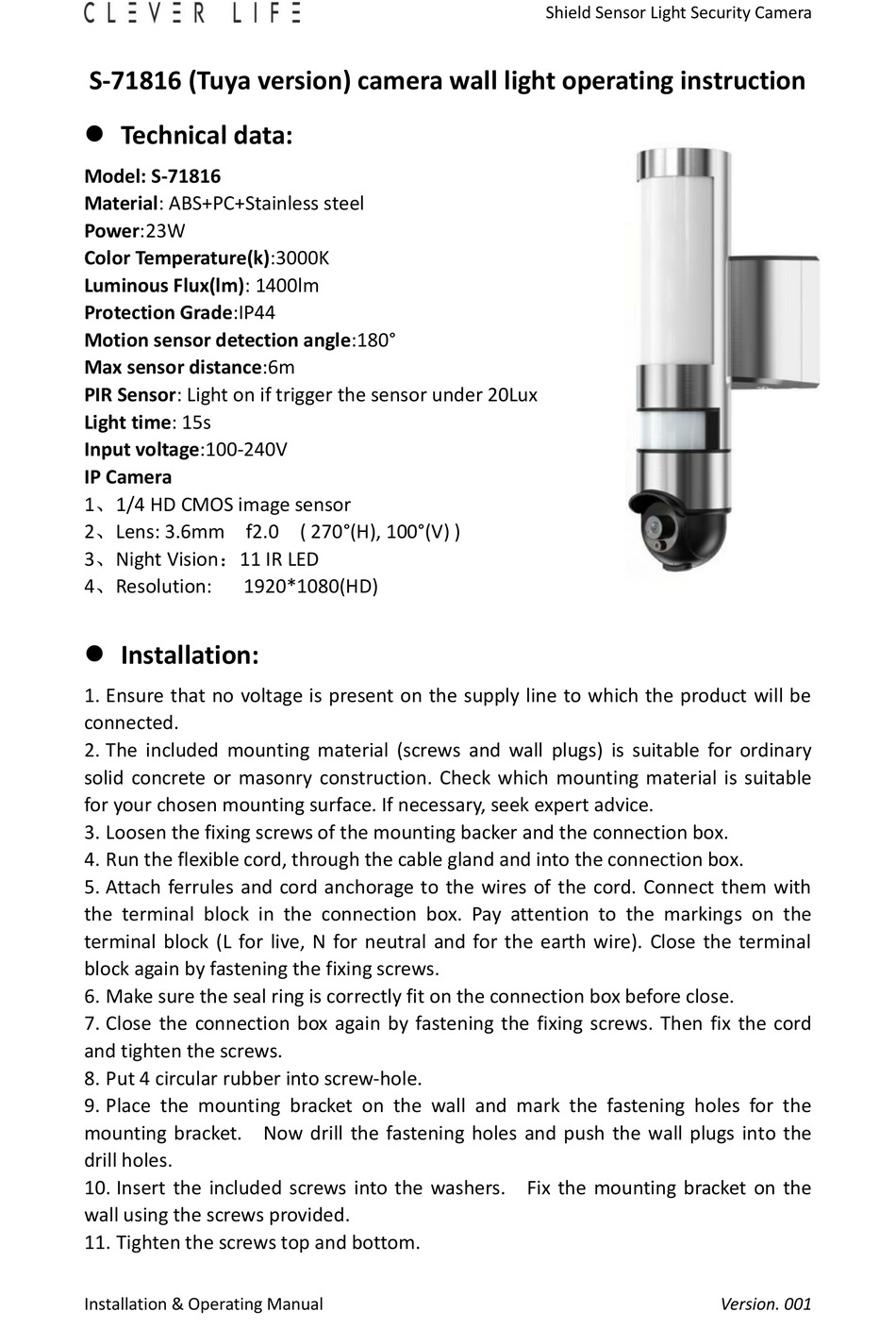

S-71816 (Tuya version) camera wall light operating instruction
⚫ Technical data:
Model: S-71816
Material: ABS+PC+Stainless steel
Power:23W
Color Temperature(k):3000K
Luminous Flux(lm): 1400lm
Protection Grade:IP44
Motion sensor detection angle:180°
Max sensor distance:6m
PIR Sensor: Light on if trigger the sensor under 20Lux
Light time: 15s
Input voltage:100-240V
IP Camera
1、1/4 HD CMOS image sensor
2、Lens: 3.6mm f2.0 ( 270°(H), 100°(V) )
3、Night Vision：11 IR LED
4、Resolution: 1920*1080(HD)
⚫ Installation:
1. Ensure that no voltage is present on the supply line to which the product will be
connected.
2. The included mounting material (screws and wall plugs) is suitable for ordinary
solid concrete or masonry construction. Check which mounting material is suitable
for your chosen mounting surface. If necessary, seek expert advice.
3. Loosen the fixing screws of the mounting backer and the connection box.
4. Run the flexible cord, through the cable gland and into the connection box.
5. Attach ferrules and cord anchorage to the wires of the cord. Connect them with
the terminal block in the connection box. Pay attention to the markings on the
terminal block (L for live, N for neutral and for the earth wire). Close the terminal
block again by fastening the fixing screws.
6. Make sure the seal ring is correctly fit on the connection box before close.
7. Close the connection box again by fastening the fixing screws. Then fix the cord
and tighten the screws.
8. Put 4 circular rubber into screw-hole.
9. Place the mounting bracket on the wall and mark the fastening holes for the
mounting bracket. Now drill the fastening holes and push the wall plugs into the
drill holes.
10. Insert the included screws into the washers. Fix the mounting bracket on the
wall using the screws provided.
11. Tighten the screws top and bottom.
Installation & Operating Manual Version. 001
