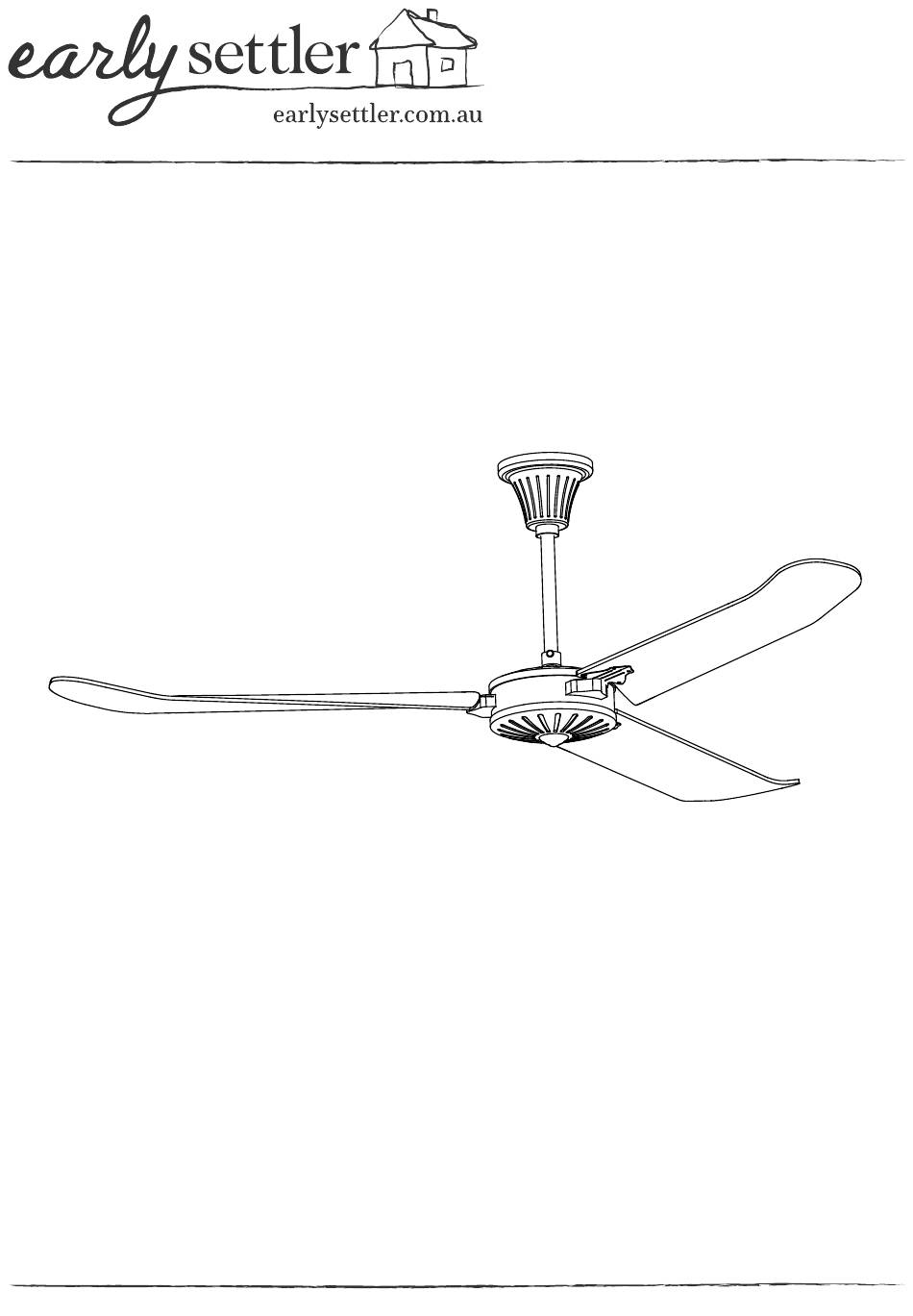

- Page 1 Palm Cover Fan Palm Cove SKU 90009749 90009749 ML-51-01 Visit earlysettler.com.au or call 1300 653 969 to contact our customer service team. 1 / 13...
- Page 2 1. Tur Downrod Canopy installation 2. En Blade Assembly 3. En 6. Attaching an accessory light kit 4. Th 6. Ce Wall 10. Trouble shooting 7. Do 8. Do 9. Wh Electrical Shock Warning :There are no DIY servceable parts contained in 10.
- Page 3 1. Turn off power before assembly & disassembly. To avoid electrical shock, connect earth / ground wire first, followed by neutral wire and active wire last. For disassembly, disconnect active wire first, followed by neutral wire and ground / earth wire last. 2.
- Page 4 LIGHT Downrod(8 inches&20 Wall Control 1 set Blade 3 pcs inches)1pc 12 p Blade holder screw 9 pcs Hexagonal nut 12 pcs Round metal washer 9 pcs Paper washer 12 pcs Spring washer 9 pcs Spring washer 12 pcs Visit earlysettler.com.au or call 1300 653 969 to contact our customer service team. 4 / 13...
- Page 5 1) This fan attach 8&12&20 inches downrod pre-assembled. Select right downrod according to the height of ceiling. 2) The fan has been pre-assembled with 12 inches downrod and canopy. 3) Exchange an extension downrod. a. Loosen the canopy screw to slide canopy and remove the downrod screws and downrod pin screw to remove the standard downrod from the motor housing.
-
Page 6: Blade Assembly
. Blade Assembly 1) Use the 3 blade screws and washers to secure the blade to blade holder. 2) Now put the blade holder onto the extended motor central housing and use the 3 blade holder screws and washers to secure the blade holder to the motor housing. - Page 7 Fig1: Motor Housing Green-yellow Blue Decorative Cap Fig2: light Assembly Kit Screw Lampholder Cord Cover Screw Bulb Glass Fig3: Fig4: Blue Green-Yellow Visit earlysettler.com.au or call 1300 653 969 to contact our customer service team. 7 / 13...
- Page 8 Wiring diagram of mounting bracket terminal & wall control terminal. GREEN/YELLOW EARTH ORANGE BLUE SUPPLY NEUTRAL BROWN ACTIVE WALL TERMINAL BLOCK CONTROL MOUNTING TERMINAL BRACKET BLOCK MOTOR WALL CONTROL LIGHT WIRE 1) Put the hanger ball into hanger bracket, turn the down rod until the groove of the hanger ball locates into the lugs of hanger ball plate (in hanger bracket).
- Page 9 2) Slide canopy up and over the hanger bracket. When in position tighten the canopy screw onto downrod. Visit earlysettler.com.au or call 1300 653 969 to contact our customer service team. 9 / 13...
- Page 10 Wall OFF: turn off the fan high speed MED: medium speed LOW: low speed LIGHT: turn on/off the light LIGHT Visit earlysettler.com.au or call 1300 653 969 to contact our customer service team. 10 / 13...
-
Page 11: Important Points To Remember
Ceiling Fan Wall-Mounted Control Installation Instruction IMPORTANT POINTS TO REMEMBER: 1. Please read this instruction and save it for further use. 2. Please note that all fixed wiring appliances should be installed by a qualified electrician. 3. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box or circuit panel before wiring. -
Page 12: Troubleshooting
TROUBLE SHOOTING: BALAN A balanc WARNING: over tim CEILING FAN MUST BE SWITCHED OFF AND ISOLATED BEFORE COMMENCING ANY TROUBLE SHOOTING NOISE: When it WOBBLE / BALANCE: and freq Please note that all ceiling fans are not the same, even fans of the change same model, some may move more or less than others. -
Page 13: Balancing Kit
BALANCING KIT: A balancing kit may be required to balance the ceiling fan at some stage if it becomes unbalanced over time. Please refer to the instruc tions contained with the balancing kit for details of how to use. NOISE: When it is quiet, especially at night, you may hear occasional small noises.
