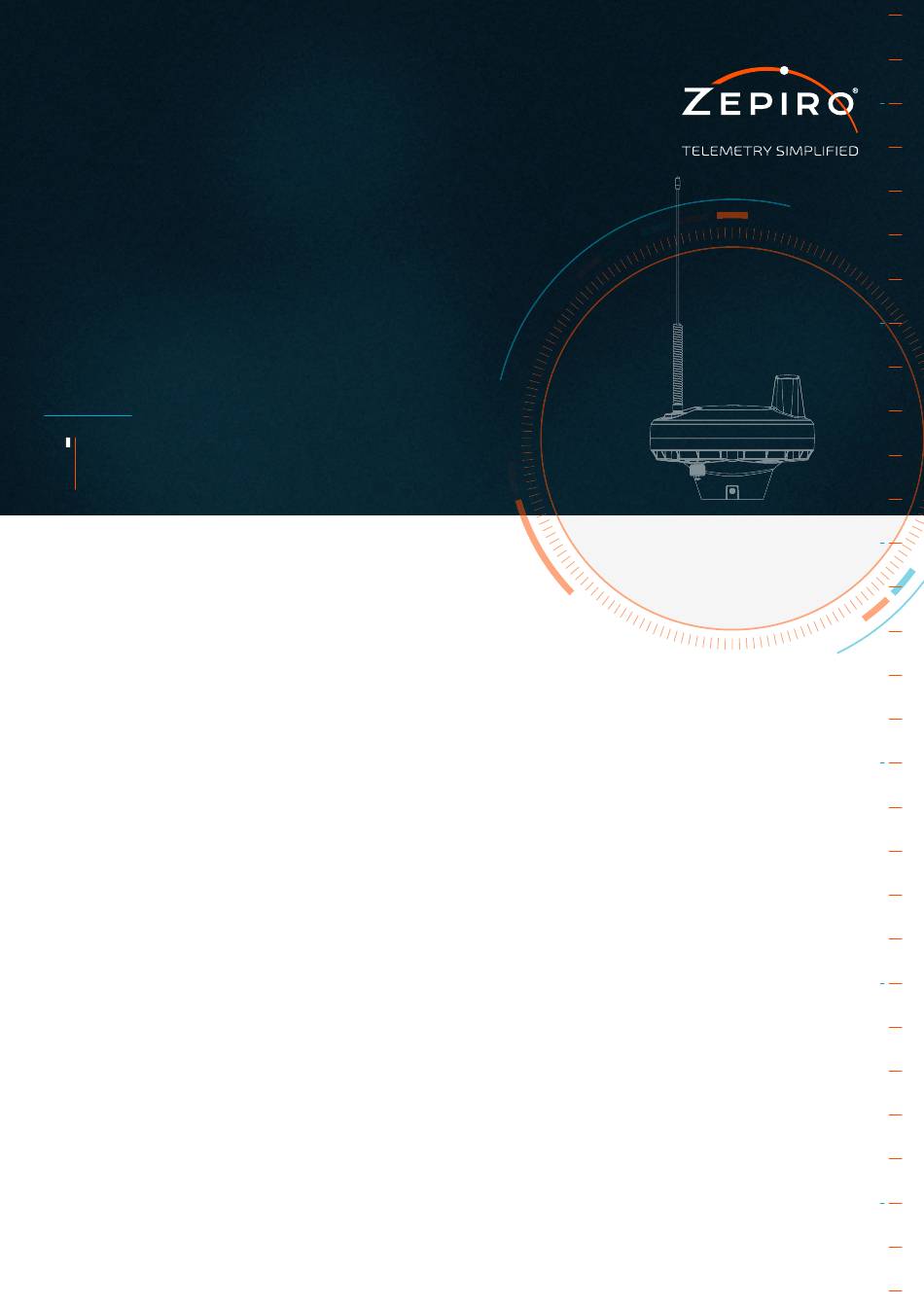

D
O
FL1
2
®
Product
Manual
Version 1.1
May 2021
© Zepiro

Advertisement

Table of Contents
loading

Related Manuals for ZEPIRO D2O FL1

Summary of Contents for ZEPIRO D2O FL1

  • Page 1 ® Product Manual Version 1.1 May 2021 © Zepiro...
  • Page 2 Zepiro does not assume any liability arising out of the application or any use of any product or circuit described herein; neither does it convey licence under its patent rights or the rights of others.

  • Page 3: Table Of Contents

    4-PIN M12 TO USB-A CABLE 8-PIN M12 INTERFACE CABLE 5. D2O FL1 PROGRAMMING INTRODUCTION PRE-PROGRAMMING CHECKLIST CONNECTING TO A COMPUTER START-UP SEQUENCE SERIAL TERMINAL SETTINGS VT100 TERMINAL EMULATION OPTION CORE OPERATION PROGRAMMING DISCONNECTING FROM A COMPUTER D2O FL1 Product Manual - iii...
  • Page 4 6. SERIAL COMMANDS INTRODUCTION COMMAND LIST COMMAND DETAILS 7. SPECIFICATIONS TECHNICAL SPECIFICATIONS REGULATORY & RADIATION INFORMATION PRODUCT DIMENSIONS 8. TROUBLESHOOTING OPERATIONAL TROUBLESHOOTING SERIAL TERMINAL TROUBLESHOOTING iv - D2O FL1 Product Manual...

  • Page 5: The Zepiro D2O Fl1

    The D2O FL1 records hourly flow totals and data messages are created and queued for satellite transmission periodically throughout the day, each containing up to 7 hourly measurements. Messages are sent via a low-earth orbit satellite network back to a terrestrial ground station.

  • Page 6: In The Box

    IN THE BOX The D2O FL1 is provided with the following items: Zepiro D2O FL1 Unit D2O Antenna with securing 8-Pin M12 Interface Cable M4 Grub Screw 1.4 ACCESSORY ITEMS The following item is available separately: 4-Pin M12 To USB-A Cable D2O UNIT FEATURE IDENTIFICATION 1.

  • Page 7: Other Tools Required

    2.0mm Allen Key, or Other 2.0mm Hex Drive A 2.0mm Allen Key or other Hex Drive is needed to fasten the Antenna’s Hex Head Grub Screw, which is used to secure the Antenna to the Antenna Base. D2O FL1 Product Manual - 3...

  • Page 8: Data Guide

    Data is optimised for transmission through the satellite network, and is then uncompressed and formatted for analysis by the Zepiro servers before being presented for end use. The following tables indicate the data that will be transmitted at various times during the D2O deployment.

  • Page 9: Notifications Data

    Reports on faults (Wire Fault, Temperature, Sensor, Failure, Other), including the time that the first fault type was recorded, the elapsed time from first fault to most recent fault, the types of fault recorded and the total number of faults recorded (of any type). D2O FL1 Product Manual - 5...

  • Page 10: Installation

    D2O’s position on earth. Having a clear line of sight to as much of the sky as possible, and in all directions, will minimise the risk of missed transmission opportunities. 6 - D2O FL1 Product Manual...

  • Page 11: Site Selection

    Placing the D2O unit in any of the above situations may restrict, or prohibit, successful transmissions. Ideally the D2O should have a clear view of the sky in all directions from 10° above the horizon. D2O FL1 Product Manual - 7...
  • Page 12 D2O has been placed on a taller mast allowing for a wider view of the sky. Now the overlap of the unobstructed angles (dark segments) has increased to cover almost all of the ideal angles (lighter segments). 8 - D2O FL1 Product Manual...

  • Page 13: Minimum Clearance

    Base thread and prevents the Antenna from being unscrewed by hand. For Fill head with epoxy scenarios where tamper prevention or evidence is require then the Grub Screw for tamper protection head can be epoxy filled. D2O FL1 Product Manual - 9...

  • Page 14: D2O Interface Cable Attachment

    D2O. For example if used in an area with livestock the device should be higher than the livestock could reach. If prone to vandalism the D2O should be high enough to deter interference and may require additional protection mechanisms. 10 - D2O FL1 Product Manual...

  • Page 15: Mast Mounting

    D2O will have a loose fit. Mounting For scenarios where tamper prevention or evidence is required then the Hex Device Head Grub Screw’s head can be epoxy filled. IMPROVED FIXING D2O FL1 Product Manual - 11...

  • Page 16: Wiring Guide

    There are 2 interfaces available on the D2O FL1. The 8-Pin M12 Connector, located centrally, is the interface port that connects to the flow meter. The 4-Pin M12 Connector is used to connect the D2O FL1 to a computer via the 4-Pin M12 to USB-A Cable during the commissioning process.
  • Page 17 It is recommended to keep a 2,000mm distance to these sources: SOURCES OF INTERFERENCE JUNCTION (OPTIONAL) 1,000mm Minimum 2,000mm+ Preferable FLOW METER Keep cable length short and avoid parrallelism with power sources D2O FL1 Product Manual - 13...

  • Page 18: D2O Fl1 Programming

    M12 to USB-A Cable in-between the D2O and a Computer, ensure that the Computer’s USB Port is capable of providing at least a 500mA supply. The D2O unit is now being powered by the USB connection and will commence its start-up sequence. TO COMPUTER 14 - D2O FL1 Product Manual...

  • Page 19: Start-Up Sequence

    6. In the event the D2O re-enters sleep mode, indicated by a GOODBYE message on the screen, press the Enter key repeatedly until the unit wakes and a Chevron > is once again displayed D2O FL1 Product Manual - 15...

  • Page 20: Vt100 Terminal Emulation Option

    5.7 CORE OPERATION PROGRAMMING The following procedure ensures that the core parameters for the normal operation of the D2O FL1 are set, and that it will enter a normal operating mode once complete. Use the CLI complete the following, pressing the Enter key after each line, noting the text entered is case sensitive: 1.

  • Page 21: Disconnecting From A Computer

    The 4-Pin M12 to USB-A Cable should be kept and stored safely for future use. IMPORTANT NOTE: Ensure the D2O’s Battery Power has been enabled through the CLI before leaving the D2O for its normal operation. No samples or transmissions will occur if the Battery Power is off. D2O FL1 Product Manual - 17...

  • Page 22: Serial Commands

    Accepts (A) or Discards (D) changes made to Admin Restricted settings of acq and inp commands when administrator access has been enabled. Parameter F restores all modified parameters to their factory defaults. report Displays a Commissioning Report of all key parameters currently set on the D2O. 18 - D2O FL1 Product Manual...
  • Page 23 SC <1000 to 50000> <pw> Resets the battery capacity after replacement. Requires battery pack capacity to be entered as well as a special password provided by Zepiro. Please contact your dealer for assistance Time Parameters COMMAND SYNTAX DETAILS...

  • Page 24: Command Details

    Using this command will generate a notification message type, advising of the login, that will be sent via the Zepiro servers. Example: Using the default password to allow administration access. OK message displayed when successful.
  • Page 25 The returned date and time formats are: Day - Month - Year Hour : Minute : Second in Greenwich Mean Time (GMT). Example: Report with example data for a D2O FL1. report COMMISSIONING REPORT SYSTEM...
  • Page 26 Note: This value is also periodically transmitted as part of the system diagnostics data. Example: sys -L 22 - D2O FL1 Product Manual...
  • Page 27 The first parameter Requires battery pack capacity to be entered in milliamp hours (mAh) in a range between 1000 mAh to 50000 mAh. The second parameter is a special permissions code generated on request by Zepiro. This process cannot be completed without a new factory supplied battery kit. Please contact your Zepiro dealer for assistance.
  • Page 28 This is an Admin Restricted command and cannot be set until the admin command has been executed. Example: Scenario where the D2O synchronisation time needs to align with midnight in the local time zone for Brisbane, Australia (GMT +10:00). acq -t 10 24 - D2O FL1 Product Manual...
  • Page 29 While this is the next opportunity it does not guarantee a successful transmission will occur. Factors such as physical obstructions, interference or inclement weather can prevent a successful transmission from occurring. Example: msg -g Thursday 07-01-2021 11:54:22 D2O FL1 Product Manual - 25...
  • Page 30 Resets the total accumulated pulse counter to zero. Enter CLEAR at <confirm> to avoid accidental use. This is an Admin Restricted command and cannot be set until the admin command has been executed. Example: inp -z CLEAR 26 - D2O FL1 Product Manual...

  • Page 31: Specifications

    Human Exposure) standard 2014 for General Public Exposure. A minimum of 9 centimetres separation between the device and the user and all other persons should be maintained WARNING: Changes or modifications to this device not expressly approved by Zepiro could void the user’s authority to operate this equipment...

  • Page 32: Product Dimensions

    7.3 PRODUCT DIMENSIONS 117.5mm 161mm 28 - D2O FL1 Product Manual...

  • Page 33: Troubleshooting

    • Check the D2O is clean and securely installed, that there are no obvious signs of damage or bending to the Antenna, and that the Antenna has a clean and secure attachment to the Antenna Base • If problems persist please contact your support representative for more detailed assistance D2O FL1 Product Manual - 29...

  • Page 34: Serial Terminal Troubleshooting

    • Once a Chevron > is shown, type help into the Serial Terminal software to see a full list Require a list of all available CLI commands of available CLI commands 30 - D2O FL1 Product Manual...
  • Page 35 NOTES D2O FL1 Product Manual - 31...
  • Page 36 SUPPORT & CONTACT Technical advice and resources including manuals, user instructions and datasheets are all available from the zepiro.tech website. For direct product support please contact your local distributor or a Zepiro representative. zepiro zepiro.tech © Zepiro 2020 - 2021...
