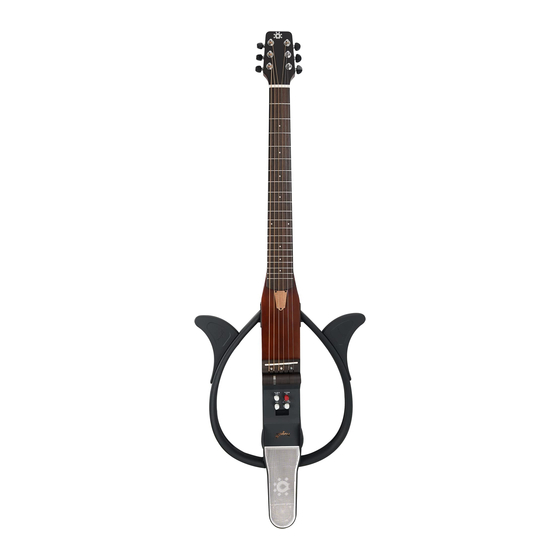

Summary of Contents for Mogabi MSG 580AC-100

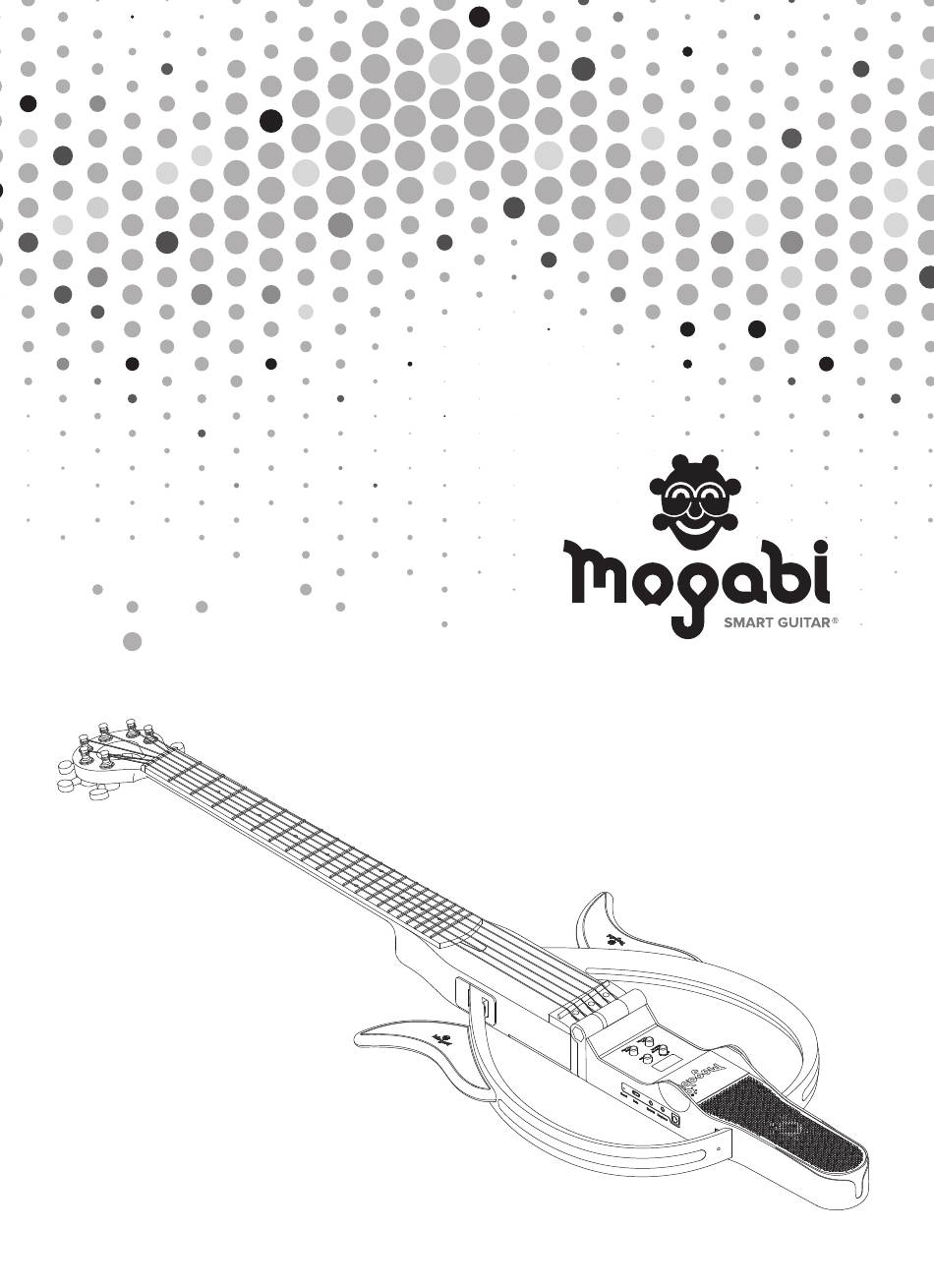

- Page 1 User’s Manual Steel Strings Model MSG 580AC-100 Nylon Strings Model MSG 580CL-100...
-
Page 2: Table Of Contents
There are plenty of guitar brands out there and thank you for choosing MOGABI Smart Guitar. You have made an excellent choice as it is a portable convenient smart guitar that replaces the existing guitar soundbox with a speaker and incorporates the latest modern IT technology. MOGABI Guitar is equipped with a variety of features such as recording and mixing, and also uses advanced high-quality sensors to reproduce very natural and full resonance tone of the guitar. -
Page 3: Specifications
Specifications Model Name MSG 580AC-100 (Acoustic) MSG 580CL-100 (Classic) Color Black (100BK), White (100WH), Red (100RD), Gold (100GD), Blue (100BL), Wood (100WD) Size 703 x 84 x 88mm (when carrying) 1065 x 320 x 45mm (when rest frame is attached) Weight Approx. -
Page 4: Safety Precautions
If a liquid such as water leaks into the product, immediately turn off the power and ask an authorized MOGABI A/S center to inspect the instrument. •Do not plugin or unplug with wet hands. There is a risk of electric shock. - Page 5 TV or gologist. radio. •When carrying, please carry in a MOGABI backpack •Do not install this instrument in an unstable environment. or attach a machine-head cover. It may hit others The main body may fall, causing a malfunction or unintentionally or caught on clothes.
-
Page 6: Main Body / Accessories
Main Body / Accessory Please check if all of the below accessories are inside the package. Guitar body (Neck, Audio Box) Rest frame 1 set (2ea) Peak 4ea (random) Neck Soft bag Charger Audio box C to C data charging cable 4mm hexagon wrench Instruction manual Product Warranty... -
Page 7: Name Of Parts
Name of Parts Front Back Machine Head Neck String Strap Pin (Additional Purchase) Truss Rod Cap Rest Frame Horn Pre-Amp Saddle Piezo Pickup Bridge Hinge Lock Shaft Control Knob Mainboard OLED Display Rest Frame Strap Pin (Additional Purchase) Speaker... -
Page 8: External Device Connection Terminal
•Exchange the data by connecting a mobile phone with C-Type external device connection terminal •Please do not connect a C-Type charger other than the dedicated charger •Update the firmware to the latest version on the Mogabi website (www.mogabi.net). •You may use various functions through Mogabi mobile application. -
Page 9: Control Panel / Knob
Control Panel / Knob ➎ ➊ Main Volume/ Power •Press the power shortly to turn the power on. •To adjust the volume, rotate the knob. •Adjust the volume level according to the performing condition as it is set to level 6 from the factory setting. -
Page 10: Rest Frame Assembly
Rest Frame Assembly ➊ ➋ ➌ ➍ ➊ Raise the hinge lock device and press to the UNLOCK position. ➋ Check the locking device and unfold the neck part and audio box. ➌ Press the locking device down to the LOCK position. ➍... -
Page 11: Rest Frame Disassembly
Rest Frame Disassembly ➊ ➋ ➌ ➍ ➊ Remove the upper and lower rest frames by pulling them towards the audio box. ➋ Raise the hinge lock device and press it to the UNLOCK position. ➌ Check the locking device and fold the neck and audio box. ➍... -
Page 12: Power On / Playing
------ Power On / Playing Power On / Off •Press the power knob(1) shortly to turn it on. •Power off by pressing the power knob(1) over 2 seconds. •The firmware version is displayed when the power is turning off. Playing •When the power is on, automatically in the guitar mode status. - Page 13 •Once pairing is complete, there is no need to perform pairing again. •Please refer to the manual regarding B/T devices pairing. •MOGABI Smart Guitar is active only in B/T mode and Mix mode. Listening to Music with Speakers •Turn the mode knob(2) and select the B/T mode.
- Page 14 Using Reverb/ Recording The recording level is fixed at a certain level regardless of the B/T playback volume. It is possible to record even at volume 0. When recording begins and finishes, a short beep sounds once and the beep is not recorded. A single recorded file can be recorded for up to 45 minutes.
-
Page 15: Using Recorded Sound Sources
•When No.05 is deleted among files No.01-10, the number of the next recorded file is No.11 and it is saved in location 05, where No.05 was saved. •It is possible to move and copy the recorded file saved in an external device back to MOGABI guitar, but some external WAV files may not be supported. -
Page 16: Playing In Silent Mode
Playing in Silent Mode Using Earphones •Check whether it is in guitar mode or mix mode. •Connect earphones, turn the volume knob (1) to set the proper volume and play the guitar. •Even if you record in earphone mode, the original sound of the performance is recorded at an appropriate volume. -
Page 17: Firmware Upgrade
Firmware Upgrade Please upgrade the firmware regularly to improve the functionality of the MOGABI guitar. Firmware upgrade available on the official MOGABI website. Please follow the instruction below. (www.mogabi.net) 1. Visit the official MOGABI website and download the firmware upgrade program. -
Page 18: Truss Rod Adjustment
Truss Rod Adjustment (Only Acoustic Model) Convex Concave In the case of severe convex In the case of severe concave •If the neck is bent, adjust the truss rod to correct the neck. •The truss rod of this product is adjusted using a 4mm hexagon wrench. •The bend of the neck supposes to be slightly concave. -
Page 19: Before Requesting Service
•If this problem is not resolved, contact the service center. •Battery Warranty Period - MOGABI Smart Guitar's battery(2,600mAh) life is more than one year, but the warranty period is 6 months to prevent excessive use by consumers, and after 6 months, repairs are charged in principle. - Page 20 Manual Development ©ZIM Corporation Published 01/2021 The contents of this manual are based on the latest specifications as of the publication date. To download the latest manual, please visit www.mogabi.net...
