Features
Power supply: RX 4.5V (AA1.5V x 3),TX 3V(AAA1.5 x 2)
Transmission range:200m（inroom 150m）.
Frequency: 433.92MHz ±150KHz Tolerance
Alarm mode：Music 48
Matching method: learning coding
Villas, hotels, apartments, office buildings, elderly and child care
Applications:
Dongguan i-chime electronic co.，ltd

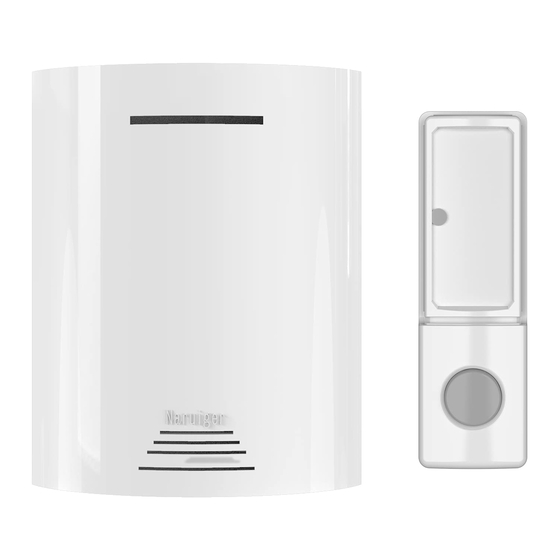

RG-120T
RG-120R
RG-120-EN Manual
DC doorbell
RG-120T
2010-2021
V-1.01
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RG-120T and is the answer not in the manual?

Questions and answers

Related Manuals for Naruiger RG-120T

Summary of Contents for Naruiger RG-120T

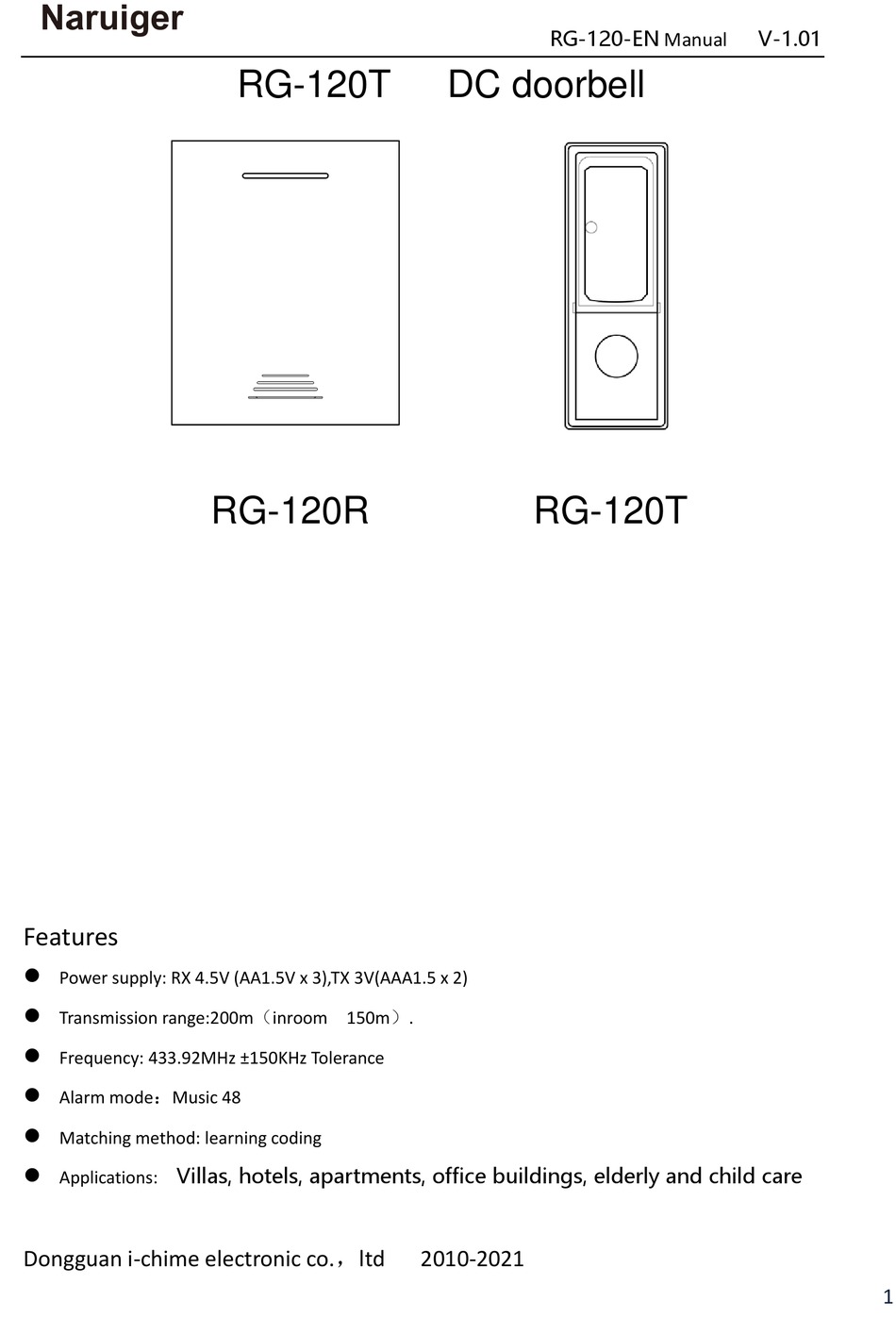

  • Page 1 RG-120-EN Manual V-1.01 RG-120T DC doorbell RG-120R RG-120T Features  Power supply: RX 4.5V (AA1.5V x 3),TX 3V(AAA1.5 x 2)  Transmission range:200m（inroom 150m）.  Frequency: 433.92MHz ±150KHz Tolerance  Alarm mode：Music 48  Matching method: learning coding Villas, hotels, apartments, office buildings, elderly and child care ...
  • Page 2 RG-120-EN Manual V-1.01 Important  information   Take the time to read this user manual before using this control switch module    Recycling your old device Your device is designed and manufactured with high quality materials and components that can be recycled and reused. ...
  • Page 3 RG-120-EN Manual V-1.01 1.RG-001 Function diagram Dongguan i-chime electronic co.，ltd 2010-2021...

  • Page 4: Installation And Configuration

    Open the RG-120R battery box, install AA1.5V×3, and then open the RG-120T remote control battery box (rear cover) to install AAA1.5Vx2 batteries. .There is a notch on the top of the push button. Use the included screwdriver to pry up slightly.
  • Page 5 RG-120-EN Manual V-1.01 The transparent cover can be removed and a business card can be inserted to let visitors know that this is the doorbell of your home ,Fully show your personality Dongguan i-chime electronic co.，ltd 2010-2021...
  • Page 6 RG-120-EN Manual V-1.01 The transmitter button can be installed with double-sided stickers or screws (included). The transmitter button adopts an awning design, which is rainproof Note: Please install the transmitter button one meter above the ground; Don’t install the transmitter button directly on the iron door, but on the wall next to it, so as not to affect the distance of the remote control.
  • Page 7 RG-120-EN Manual V-1.01 Reconfiguration of RG-120T and RG-120R。 Important note: The new factory RG-120T/R wireless doorbell transceiver has been configured, so there is no need to re-configure. You can skip this step. 2.2.1 Reconfiguration of RG-120T/R 2.2.1.1 After installing the battery, press and hold the CODE button of...
  • Page 8 After installing the battery, press and hold the CODE button of the RG-120R for 5 seconds, the receiver LED indicator flashes (once per second), the receiver enters the waiting configuration state, and then quickly press the second RG-120T button ,to configure with the receiver. When the RG-120R LED indicator is off, the Dongguan i-chime electronic co.，ltd...
  • Page 9 RG-120-EN Manual V-1.01 second transmitter configuration is completed . Repeat this step to complete the third transmitter button Dongguan i-chime electronic co.，ltd 2010-2021...
  • Page 10 2.3.RG-120T/R low voltage reminder If the RG-120T is not working, when the indicator light of the RG-001R flashes (twice in 5 seconds), the receiver battery needs to be replaced.
  • Page 11 RG-120-EN Manual V-1.01 3 . Application Villas, hotels, apartments Dongguan i-chime electronic co.，ltd 2010-2021...
  • Page 12 RG-120-EN Manual V-1.01 office buildings Dongguan i-chime electronic co.，ltd 2010-2021...

  • Page 13: Technical Details

    4. Technical Details Manufacturer NARUIGER Part Number RG-120T & RG-120R Item Weighjt RG-120R:64g, RG-120T:46g Dimensions RX:1000*80*27mm, TX:90*30*223mm Item moder number RG-120T & RG-120R Frequency 433.92MHz ±150KHz Tolerance Power Supply RX:4.5V(AAA 1.5V*3 ),TX: 3V(AA 1.5V*2) Matching Method Learning coding Sound source 48 types MODE ON/OFF;...
  • Page 14 RG-120-EN Manual V-1.01 FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
