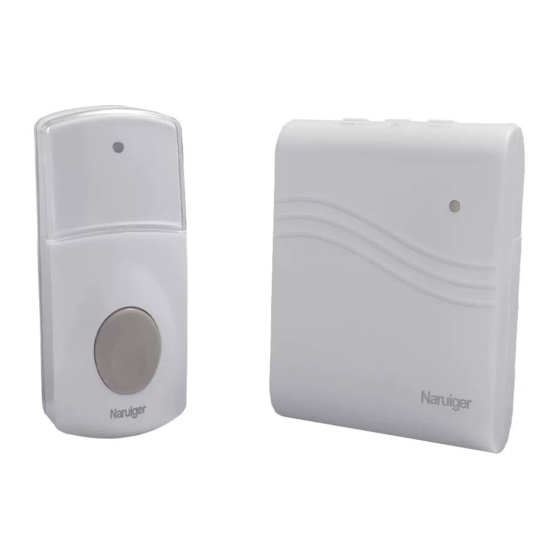

RG-001R
Features
Power supply: RX 4.5V (AA1.5V x 3),TX 12V 23A
Transmission range:200m（inroom 150m）.
Frequency: 433.92MHz ±150KHz Tolerance
Alarm mode：Music 16
Matching method: learning coding
Villas, hotels, apartments, office buildings, elderly and child care
Applications:
Dongguan i-chime electronic co.，ltd
RG-001T/R Belt DC doorbell
RG-001T
2010-2021
RG-001T/R-US Manual
V-1.01
1
Advertisement
Related Manuals for Naruiger RG-001T
Summary of Contents for Naruiger RG-001T

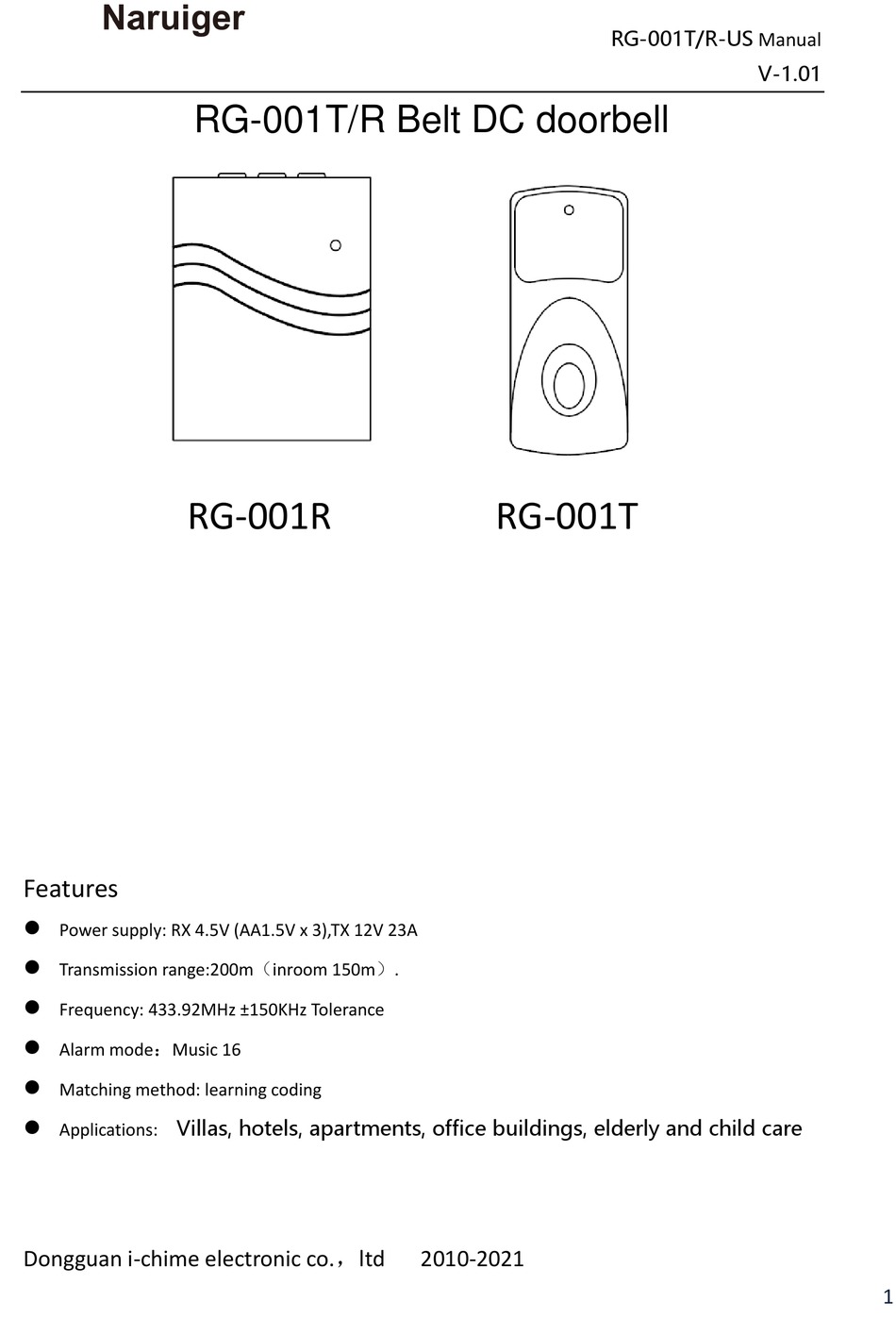

- Page 1 RG-001T/R-US Manual V-1.01 RG-001T/R Belt DC doorbell RG-001R RG-001T Features Power supply: RX 4.5V (AA1.5V x 3),TX 12V 23A Transmission range:200m（inroom 150m）. Frequency: 433.92MHz ±150KHz Tolerance Alarm mode：Music 16 Matching method: learning coding Villas, hotels, apartments, office buildings, elderly and child care Applications: Dongguan i-chime electronic co.，ltd...
- Page 2 RG-001T/R-US Manual V-1.01 Important information Take the time to read this user manual before using this control switch module Recycling your old device Your device is designed and manufactured with high quality materials and components that can be recycled and reused.
-
Page 3: Function Diagram
RG-001T/R-US Manual V-1.01 1.RG-001T/R Function diagram Dongguan i-chime electronic co.，ltd 2010-2021... -
Page 4: Installation And Configuration
RG-001T/R-US Manual V-1.01 2 .Installation and configuration first time to use 2.1． Open the RG-001R battery box, install AA1.5V×3, and then open the RG-001 T control battery box (rear cover) to install 23A 12V batteries. Dongguan i-chime electronic co.，ltd 2010-2021... - Page 5 RG-001T/R-US Manual V-1.01 2.2 Fixed to the wall Can be fixed on the wall with the included screws or double-sided stickers. Note: Please install the transmitter button one meter above the ground; Don’t install the transmitter button directly on the iron door, but on the wall next to it, so as not to affect the distance of the remote control;...
- Page 6 ,Fully show your personality Reconfiguration of RG-001 receiver and transmitter。 Important note: The new factory RG-001T/R wireless doorbell transceiver has been configured, so there is no need to re-configure, you can skip this step.
- Page 7 CODE button of the second RG-001 receiver (5 seconds), the receiver LED indicator flashes (once per second), the receiver enters the waiting configuration state, and then quickly press the RG-001T Button to configure with the receiver. When the RG-001R LED indicator is off, the second receiver configuration is complete.
- Page 8 RG-001 to send Button to configure with the receiver. When the RG-001R LED indicator is off, the second receiver configuration is complete. Repeat this step to complete the third transmitter button. 2.4.4 Reconfiguration of RG-001T/R， Dongguan i-chime electronic co.，ltd 2010-2021...
- Page 9 V-1.01 Change music Open the back cover (battery box) of the RG-001T, and change the music every time you press the button on the PCB, There are 16 types of music. （When the song selection button is pressed for the first time, the original music will be played, and when it is pressed again, it will switch to the next song.）...
- Page 10 RG-001T/R-US Manual V-1.01 3 . Application Villas, hotels, apartments office buildings elderly and child care Dongguan i-chime electronic co.，ltd 2010-2021...
-
Page 11: Technical Details
4. Technical Details Manufacturer NARUIGER Part Number RG-001T & RG-001R Item Weighjt RG-001R:64g, RG-001T:40g Dimensions RX:66*89*28mm, TX:39*89.5*23mm Item moder number RG-001T & RG-001R Frequency 433.92MHz ±150KHz Tolerance Power Supply RX:4.5V(AAA 1.5V*3 ), TX:12V 23A Matching Method Learning coding Sound source 16 types... - Page 12 RG-001T/R-US Manual V-1.01 FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
