Summary of Contents for ID Tech VersaKey IDKA-2331

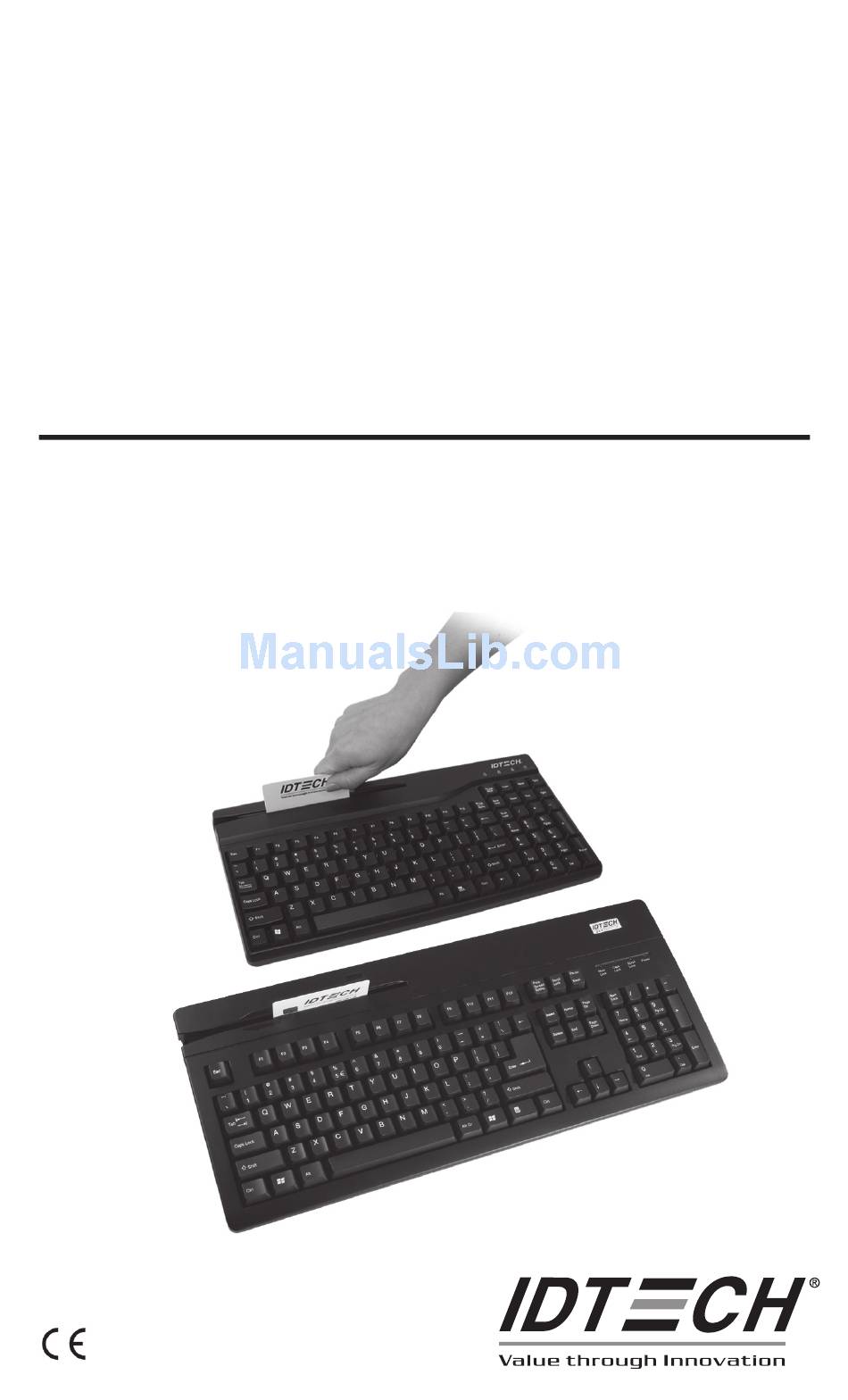

- Page 1 VersaKey Standard & Compact Series POS Keyboard Quickstart Manual...
-
Page 3: Fcc Warning Statement
FCC WARNING STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: Limited Warranty
LIMITED WARRANTY ID TECH warrants to the original purchaser for a period of 36 months from the date of invoice that this product is in good working order and free from defects in mate- rial and workmanship under normal use and service. ID TECH’s obligation under... -
Page 5: Table Of Contents
Table of Contents Section 1. Introduction Section 2. Installation & Operation Section 3. Reader Confi guration Section 4. Specifi cation Keyboard Section 5. Specifi cation Reader Section 6. Trouble Shooting Appendix A. Magnetic Stripe Default Settings Appendix B. Connector Pin Assignments Appendix C. -
Page 6: Section 1. Introduction
Section 1 INTRODUCTION ID TECH VersaKey POS Keyboards provide data entry primary for POS and security applications. Two sires are available, compact and full size. The VersaKey Compact is in compact 14” x 7” form factor, full-function keyboard with 103 key layout. The full-size keyboard is a standard 18.5” x 8” form factor. -
Page 7: Section 2. Installation & Operation
INSTALLATION & OPERATION The VersaKey keyboard always has a single communication cable equipped with either a USB or a PS/2 cable connection. Both the keyboard scan codes and reader data are always transmitted through this single communication cable. Computers typically have only one PS/2 (standard keyboard connec- tion);... -
Page 8: Section 3. Reader Confi Guration
The added characters form either a prefi x or a suffi x to the formatted MagStripe data. To support the reader’s formatting capability, ID TECH provides an easy to use confi guration utility, Magswipe Software. Confi guration settings can also enable the reader to work with the host system communication port settings;... -
Page 9: Section 4. Specifi Cation Keyboard
Section 4 SPECIFICATION KEYBOARD MECHANCIAL Keyswitch Total Travel Operating Force Keyboard Housing Color Size Material Cable Information Jacket Material Length PC Connector Drop Vibration Operating Temperature Storage Temperature ELECTRICAL Power Requirement Industry Requirements RELIABILITY Operating Life ESD Immunity MTBF 4.0 ± 0.5 mm 50 ±... -
Page 10: Section 5. Specifi Cation Reader
Track 1 & 2 or Track 1, 2 & 3 ISO 7810 and 7811-1 through -6 cards. Reads AAMVA driver license cards. Decoded track data sent through Keyboard communications cable. Default card data output format or customized data output format is programmable through PC confi... -
Page 11: Section 6. Trouble Shooting
(such as Windows Notepad) is open and selected during the test. The keyboard does not function with the computer. If the power indicator LED is off, the keyboard may not be fully connected to the computer. Check the connections. Check that the computer power is on. -
Page 12: Appendix A. Magnetic Stripe Default Settings
Default Value High High 2 ms 2 ms Any Track Any Track ID TECH Format (See Appendix C) ID TECH Format (See Appendix C) See Appendix C See Appendix C Enable Enable Decoding in Both Directions Decoding in Both Directions... -
Page 13: Appendix C. Magnetic Stripe Data Output Format
Appendix C MAGNETIC STRIPE DATA OUTPUT FORMAT The Reader is shipped from the factory with the following magnetic stripe default settings already programmed: Magnetic Track Basic Data Output Format Track 1: <SS1><T1 Data><ES><TS> Track 2: <SS2><T2 Data><ES><TS> Track 3: <SS3><T3 Data><ES><Terminator> where: SS1(start sentinel track 1) = % SS2(start sentinel track 2) = ;... -
Page 14: Appendix D. Keyboard Layout
Appendix D KEYBOARD LAYOUTS North American Typical Format Standard Full Size Compact Size... - Page 16 ID TECH 10721 Walker Street Cypress, California 90630 (714) 761-6368 www.idtechproducts.com 80074502-001 Rev D R10/07...
