MANUAL
™
Overview • Use • Care & Storage • Troubleshooting • Repair

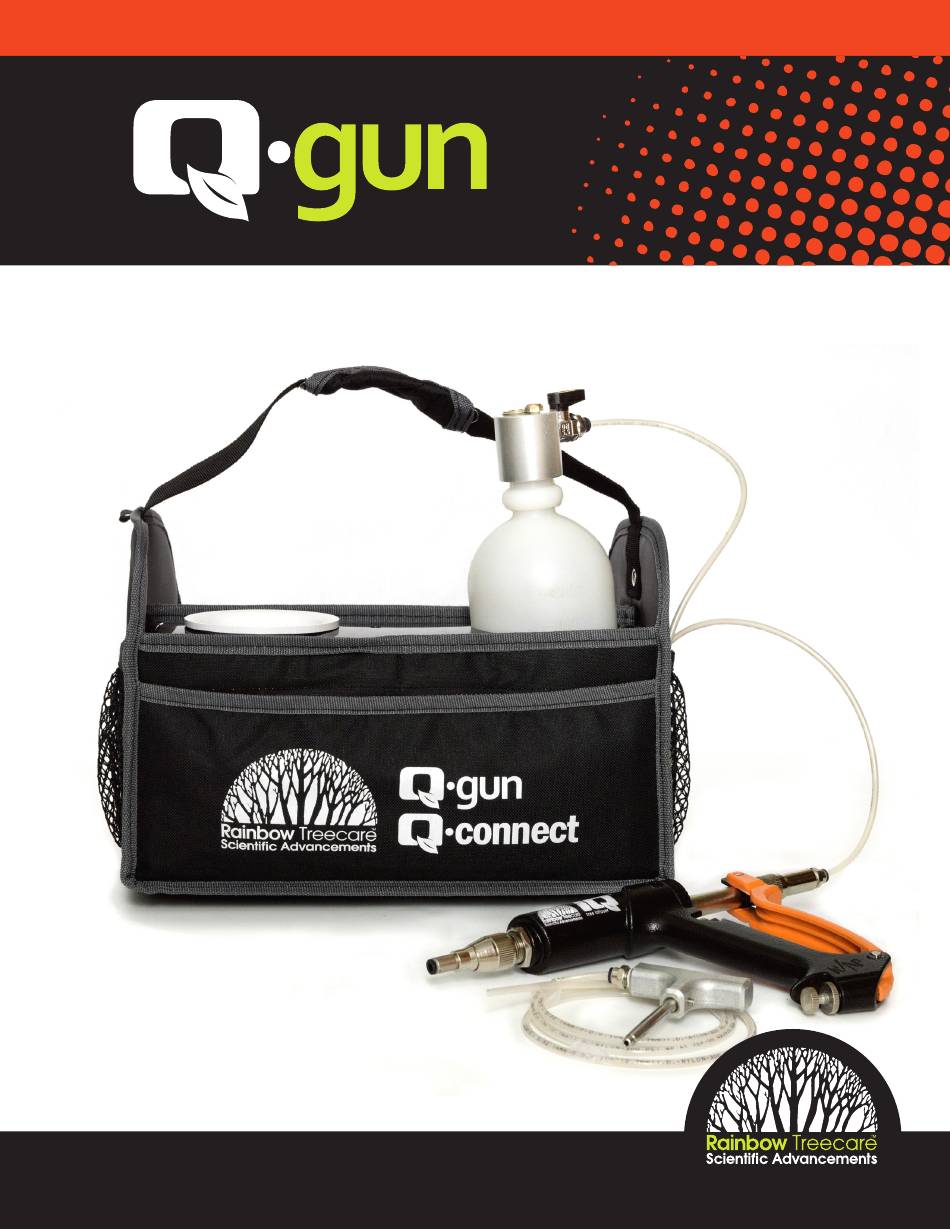

The Q-gun is designed to allow tree injection treatments to be performed quickly, safely, and accurately.
Be certain to read ALL instructions before use. Refer to the appropriate product guide and product label
for dosage and mixing instructions.
1-877-272-6747
For tech support and protocols call
www.treecarescience.com
info@treecarescience.com
•
Patent Pending
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Rainbow Treecare Q-gun
- Page 1 Overview • Use • Care & Storage • Troubleshooting • Repair The Q-gun is designed to allow tree injection treatments to be performed quickly, safely, and accurately. Be certain to read ALL instructions before use. Refer to the appropriate product guide and product label for dosage and mixing instructions.
-
Page 2: Table Of Contents
PHASE 2 - PRIMING PHASE 3 - INJECTING PHASE 4 - PURGING PHASE 5 - CLEANING GENERAL CARE & STORAGE APPROVED PRODUCTS LIST TROUBLESHOOTING MAINTENANCE & REPAIR TAKING APART/PUTTING TOGETHER THE Q-GUN FIELD REPAIR INSTRUCTIONS 10-12 877-272-6747 For tech support and protocols call... -
Page 3: Q-Gun Overview
Bottle with Cap Assembly Manual Injection Tee You Will Need: 5/32” Tubing Electric Drill - 18v Recommended 15/64” High Helix Drill Bits DBH Measuring Tape Bottle Holster Proper PPE (Refer to product label) Carrying Bag & Insert Q-gun Field Repair Kit (Recommended) -
Page 4: Instructions For Use
Move the handle to the desired position and 4 ml to 0 ml. DBH. tighten both dials. Release the handle. PRIMING Secure the bottle in the Q-gun belt holster, bottle stand, or carrying bag. Fill the bottle with product. 877-272-6747 For tech support and protocols call... -
Page 5: Phase 3 - Injecting
open Ensure that the bottle cap is securely threaded on the bottle and the tubing is connected from the bottle to the gun, Open the main valve on the bottle cap. and the gun to the injection tee. ‘Open’ = parallel to the tube Squeeze the handle to draw product into the gun Insert the injection tip into the bottle chamber. -
Page 6: Phase 4 - Purging
Replace drill bits every 5-10 trees. A sharp drill bit should produce “pig tails”. PURGING Purging empties the Q-gun system of fluid. Follow these steps at the end of the day, when changing products, and after cleaning the Q-gun. Hold the bottle cap so the end of the dip tube is above Unscrew the bottle cap from the product bottle. -
Page 7: Phase 2 - Priming
Cleaning Solution ONE PART TWO PARTS Fill the empty q-gun bottle 1/3 to 1/2 way with a dilute isopropyl alcohol cleaning solution. To make a cleaning solution, mix ONE (1) part 70% isopropyl alcohol to TWO (2) parts water. Repeat Phase II. -
Page 8: General Care & Storage
Purge all fluid from the lines after each use and prior to changing products. • Clean out your Q-gun daily after use with a 1:2 solution of 70% isopropyl alcohol and water. • It is recommended to run water through the unit after the cleaning solution, and allow the lines to dry completely before storage. -
Page 9: Troubleshooting
TROUBLESHOOTING Refer to the table below to troubleshoot the Q-gun. Call our Technical Support at 1-877-272-6747 for additional assistance. SYMPTOM POSSIBLE PROBLEM SOLUTION Verify that both front and rear check valves are installed correctly - springs Incorrect check valve orientation should face forward, in the direction of flow. -
Page 10: Maintenance & Repair
TROUBLESHOOTING MAINTENANCE & REPAIR Basic Maintenance 1. Purge all fluid from lines after use. 2. Clean: Run cleaning solution through the unit after each use. » Always clean the unit with an isopropyl alcohol-based cleaning solution. 1 part 70% isopropyl alcohol to 2 parts water »... -
Page 11: Taking Apart/Putting Together The Q-Gun
• Replace valve cores with springs facing forward (toward the tip of the gun). Apply NJ Phillips lubricant to O-rings (black nozzle O-ring and 2 blue O-rings). Reassembly Q-gun and store in a clean, dry place. TAKING APART/PUTTING TOGETHER THE Q-GUN 1. -
Page 12: Field Repair Instructions
FIELD REPAIR INSTRUCTIONS REPLACING SET SCREWS/TIGHTENING TIPS screw Use wrench to tighten the tip. Avoid over-tightening. NOTE: If a threaded part will not turn in Re-tighten the set screw. Avoid over- Loosen the set screw with flat one direction, give it a slight turn in the tightening and stripping the screw. - Page 13 REPLACING THE DUCKBILL VALVE Brass Valve Plug Rubber Grommet Metal Shim Retaining Ring Duckbill Valve Main Bottle Valve X-Ring Use a coin or bottle top key Remove the rubber Remove the duckbill (Field Repair Kit) to unscrew grommet, metal shim, valve and replace it with Hose Barb the brass valve plug.
- Page 14 (springs should point in the direction of flow). LUBRICATING O-RINGS Twist plunger cap counter-clockwise to release Loosen tension screw on Q-gun handle to relax plunger piston from cylinder. completely. Blue O-ring Green Felt Gasket...
- Page 15 1-877-272-6747 For tech support and protocols call www.treecarescience.com info@treecarescience.com •...
- Page 16 OUR GUARANTEE Our products and services are guaranteed to give 100% satisfaction in every way - service, performance, quality, and value. If you are ever dissatisfied, in any way, please contact us so that we can address whatever concern you have. Our goal is your complete satisfaction.
