Introduction
This manual describes the installation and connection of the product and also describes how to
use the product. Mounting and installing of the Octopus Series LEDs may only be executed by
certified service personnel. Please read and understand this manual completely before using the
product. Only use the product as specified in this manual.
2

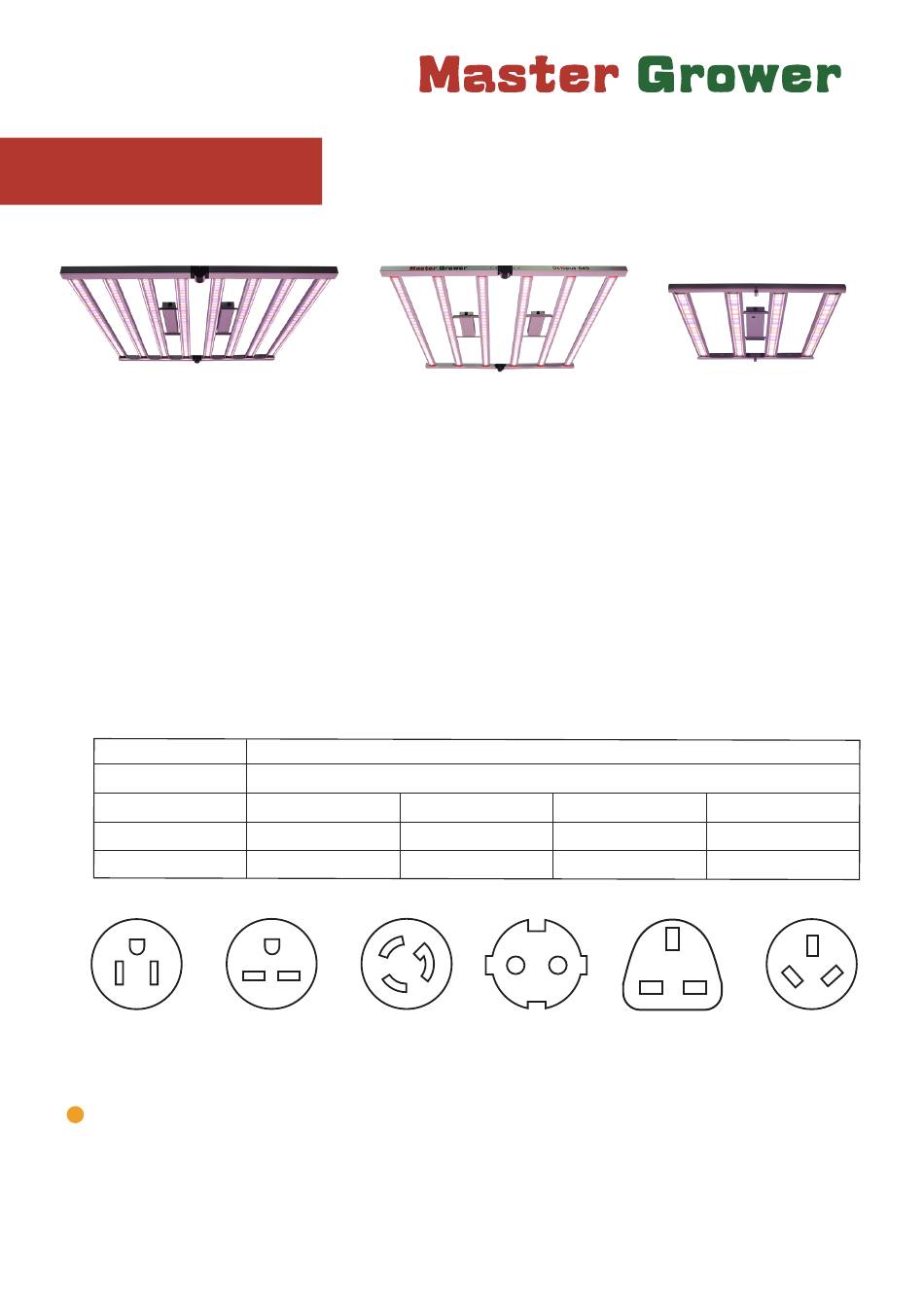

Product Information & Specifications
2.1
General Information
Product Name
Manufacturer
Version
Plug Type
Input Voltage
US 5-15P
US 6-15P
!
Note:
Other types of plug are also available, please check with our sales engineers directly.

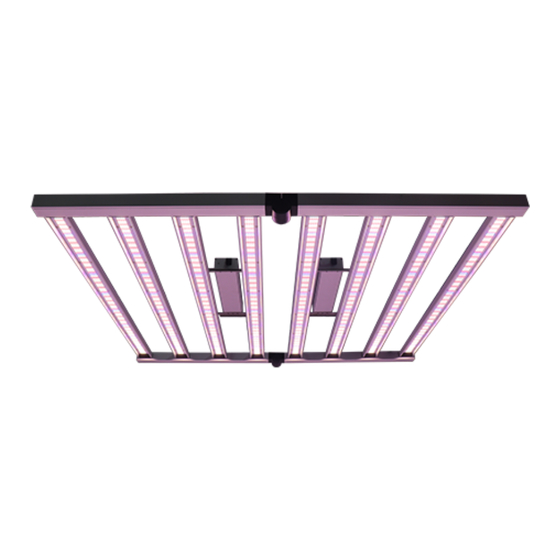

800W/640W/200W LED Grow Lights
Octopus 640
Octopus Series LED Grow Lights
Shenzhen VANQ Technology Co., Ltd.
US
US plug 120-277V
120-277VAC
US L7-15P
EU
UK
EU plug 230V
UK plug 240V
100-230VAC
100-240VAC
EU plug 230V
Octopus 200
AUS
AUS/NZS plug 240V
100-240VAC
UK plug 240V
AUS/NZS
plug 240V
TM
