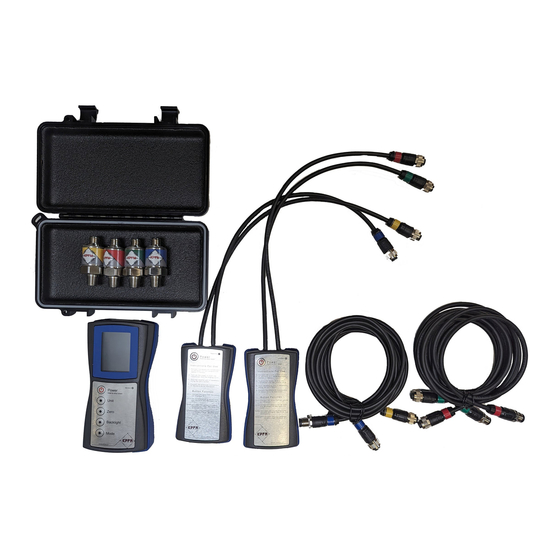

- Page 1 X2 & X4 PRESSURE GUAGE KITS USERS MANUAL...
- Page 2 • If the Product is exposed to overpressure or sudden physical shock (such as a drop), examine the Product for damage that can cause a safety concern. If necessary, return the Product to KPFM for evaluation. • Always apply thread seal tape or liquid to the threads of the gauge.
- Page 3 or inject itself into the blood stream. Causing injury or death • While the transducers are rated for 10000psi most test fittings are not. Check if the fittings you are using are appropriate for the pressures being tested Component list 1.
- Page 4 the signal to the receiver. • Readings are taken every half second, converted to psi, and transmitted. • In that half second cycle there are 11 readings taken, the 2 high and 2 low are dropped, and the remaining 5 are averaged for maximum stability . •...
- Page 5 Maximum values as well. Backlight: Changes the backlight • on the LCD screen between High, Medium, and Low Receiver Displays X2 Kit Receiver Display 1. Battery level indicator for receiver unit 2. Battery level indicator for transmitter unit 3. Signal strength indicator 4.
- Page 6 X4 Kit Receiver Display 1. Battery level indicator for receiver unit 2. Battery level indicator for transmitter unit 3. Signal strength indicator 4. Current readings 5. Mode indicator area 6. Current unit display Set up and use • When connecting and disconnecting components always depressurize the system first. •...
- Page 7 • The frequency for recalibration varies with the application and the users requirements. • KPFM’s preference is to have the gauges recalibrated every three years. • NIST traceable testing and setup can be done on request for an additional charge.
- Page 8 Size: • Receiver 210x100x32mm • Transmitter 147x89x24mm Weight: • Receiver 285g • Transmitter 210g • Total kit weight including fittings and batteries for the X2 Kit is 3.6kg and the X4 Kit is 5.5KG kpfm.info@gmail.com Contact KPFM at or 1-250-462-0042...
