- Page 1 Electric Bike User Manual Power Brings Joy...
-
Page 2: Table Of Contents
Table of Contents Table of Contents EBC-S18 &&&&I& &&&&&1/$-.2.-(*.0"+ &&&&J EBC-S05 &&&&& &&&& EBC-S07B &&&&& 12/&'(34#.5" &&&& !" &&&& EBC-S07D &&&& &&&& EBC-S03 &&&&&,).;."7 &&&& &&&&&3(+.-&<(."*$"("-$ EBC-S04 &&&& !& &&&& "' Product Detail Images &&&& "! Assembly Instructions &&&& ""... - Page 3 What is Included in the Box? Keys E Bike Charging Cable Battery Tool Box Manual...

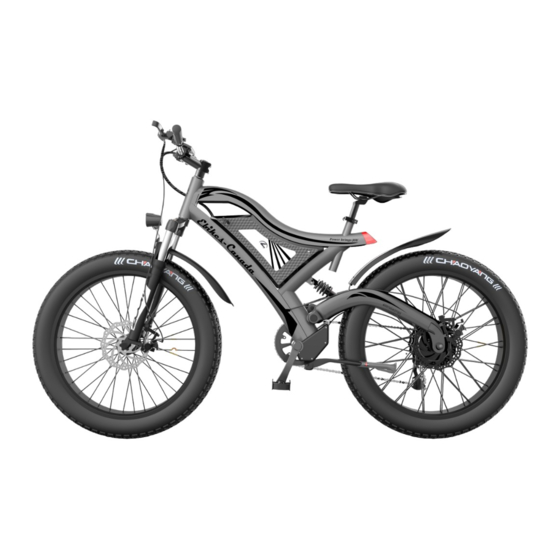

- Page 4 EBC-S18...

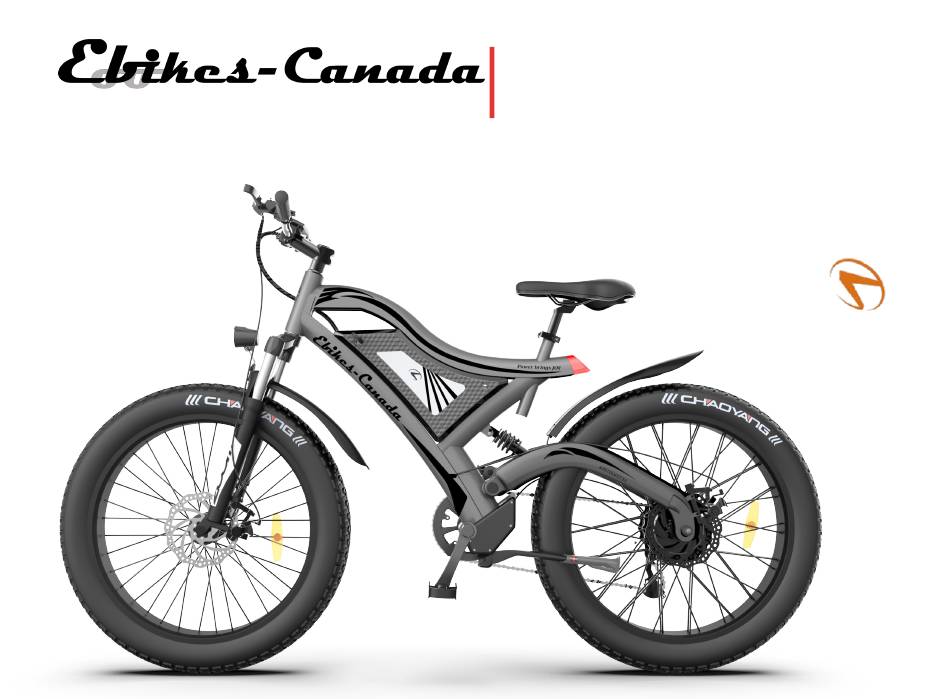

- Page 5 EBC-S18 Product Specifications Battery 48V 10.4 Ah Li-ion battery Motor 500W Bafang rear hub motor Controller 48V 22A Charge Time 4-6 hours Max Speed 45 km/h Range Distance 55-75 km Front & rear disc brakes Brakes Lights Front & rear lights...
-
Page 6: Ebc-S05
EBC-S05... - Page 7 EBC-S05 Product Specifications Battery 48V 10.4 Ah Li-ion battery Motor 500 W Bafang rear hub motor Controller 48V 22 A Charge Time 4-6 hours Max Speed 45 km/h Range Distance 55-75 km Front & rear disc brakes Brakes Lights Front & rear lights Display SW900 LCD Fork...
-
Page 8: Ebc-S07B
EBC-S07-B... - Page 9 EBC-S07-B Product Specifications Frame 6061 aluminum alloy Battery 48V 13Ah Li-Ion battery Motor 500W Bafang rear hub motor Controller 48V 22A Charge Time 4-6 hours Max Speed 45 km/h Range Distance 60-90 km Brakes Front & rear disc brakes Lights Front light &...
-
Page 10: Ebc-S07D
EBC-S07-D EBC-S07-D... - Page 11 EBC-S07-D Product Specifications Frame 6061 aluminum alloy Battery 48V 13 Ah Li-ion battery Motor 500W Bafang rear Hub motor Controller 48V 22A Charge Time 4-6 hours Max Speed 45 km/h Range Distance 65-90 km Brakes Front & rear disc brakes Lights Front light &...
-
Page 12: Ebc-S03
EBC-S03... - Page 13 EBC-S03 Product Specifications Frame 6061 aluminum alloy Battery 36V 10.4 Ah Li-Ion battery Motor 350W Bafang rear hub motor Controller 36V 15A Charge Time 6-8 hours Max Speed 40 km/h Range Distance 60-80 km Front & rear disc brakes Brakes Lights Front light &...
-
Page 14: Ebc-S04
EBC-S04... - Page 15 EBC-S04 Product Specifications Frame 6061 aluminum alloy Battery 36V 10.4 Ah Li-Ion battery Motor 350W Bafang rear hub motor Controller 36V 15A Charge Time 4-6 hours Max Speed 40 km/h Range Distance 60-80 km Front & rear disc brakes Brakes Lights Front light &...
-
Page 17: Assembly Instructions
Assembly Instructions INTRUCTIONS Open carton. Remove small accessories box and set aside. Remove bike from carton, place on a soft surface to avoid scratches. Cut zip ties attaching front wheel and set aside. Remove protective foam and remaining zip ties. Open your accessories package and remove your tool kit. -
Page 18: Routine Checks
Routine Checks To Ensure Your Safety, Make the Following Functional Checks Before Driving: 1. Test brake system, throttle, and power system. 2. Inflate tires to the pressure indicated on them. Usually around 30 psi. 3. Check front wheel lug-nuts, securely tighten before every ride. 4. -
Page 19: Battery Charging
Battery Charging Charging Methods Charge the battery while it is attached to the e bike, or detach the battery from the ebike and charge separately. Please follow the best practices listed below for charging your battery and extending your battery lifespan. With Battery Removed 1. - Page 20 About Charging With Battery Attached to Bike 1. Turn off the battery and LCD display, remove key Charging Interface 2. Rotate and pull rubber charging socket to expose charging port 3. Insert input plug into battery first, then plug into 120V wall outlet ** Avoid overcharging - Do not leave on charger for more than 24 hours ** Duration of Charging 1.
-
Page 21: C8G Recap About Charging
Recap About Charging Recap of Important Charging Information Avoid overcharging - do not leave on charger for more than 24 hours. with wet hands or metallic objects. 3. Do not charge the battery in an inverted position. If you do, you risk drastically reducing its lifespan. -
Page 22: Driving
Driving How to Start the e Bike: Insert key and turn it to the ON position. At this point, the charge indicator light will turn on, indicating that the bike is powered on. Press mode to select the pedal assist power level PAS 1 = 20 % motor &... -
Page 23: Safe Driving Tips
Safe Driving Tips Important Tips While Driving: 1. To reduce battery consumption, and protect the motor lifespan, you should use the pedals during initial start-ups and climbs. 2. Maintain a proper tire pressure based on what is marked on it. Low pressure tires will require more power to drive and decrease speed. 3. -
Page 24: Basic Maintenance
Basic Maintenance For a safe driving experience, please keep your bike in optimal riding condition, regular maintenance should be performed. Regular Self-Checks 1. Tightening front wheel lug-nut, test for correct tire rotation and alignment. 2. Maintain an appropriate tire pressure at all times (as indicated on the side of the tires). 3. -
Page 25: Diagnose And Troubleshooting
Diagnose and Troubleshooting Most Common Solutions Possible Causes Symptoms (1) Insufficient battery power (1) Charge the battery (2) Faulty connections (2) Clean the connections It does not work (3) Key in wrong position (3) Turn the key into the correct position (1) Insufficient battery power (1) Charge the battery Irregular acceleration... -
Page 26: Recommended Torque Values For Threaded Fasteners
Recommended Torque Values for Threaded Fasteners Parts Torque Required(Nm) Handlebar 18-20 Handlebar stem 18-20 Saddle 18-20 Seat pillar 18-20 Front wheel 16-25 Rear wheel 25-35 Bottom bracket 35-55... -
Page 27: Controller Operating System
LCD Display & Controller Operating System... -
Page 28: Faq
What is the distance I can go on a single charge? There are many variables that impact how far you will be able to travel on a single charge like wind, hills, payload, level of power assist, and rider size, but the range is typically between 35-70 km. When you pedal, you extend your range. - Page 29 How many charges will my battery last for? The lithium-ion battery cells will provide roughly 800 “full” charge cycles before a replacement is recommended. A full charge cycle is considered one complete discharge, so if you only discharge the battery halfway before recharging, your battery will last for 1600 charges! Does the battery have a memory effect? No, the battery has no memory effect meaning you can charge your battery after each and every use, even if you just...
- Page 30 Users should take extra care ensuring that they operate within the law and check their local regulations on peak power (500 Watts per axle in Canada) and top speeds (normally 32 km/h in Canada). Ebikes-Canada brand e bikes will have motors that are rated at a maximum 500 Watts and are programmed at the factory to a maximum speed of 32 Kph as per current Canadian legislation.
- Page 31 The average e bike weighs 25 kg (55 lbs) out of the box including the battery. Full sized 26” fat tire e-bikes can weight from 30 kg (65 lbs) up to 33kg (72 lbs). The weight for each Ebikes-Canada model is listed in the product specifications section of our online user manual.
- Page 32 How many gears does the ebike have and why does it have gears if it is electric? The e bike has a thumb shift Shimano 7-speed gearing system. Although we find that users rarely change gears because the electric motor takes away all the strain, it is still useful to have gears whenever you decide to pedal while cruising or trying to get more exercise or extend your range.
- Page 33 WARRANTY AND REPAIR Can I replace or add parts to the ebike? If you require replacement parts check with your local bike experts or reach out to us if you have any questions about compatibility Adding unapproved after market parts may void the warranty. The motor and controller were programmed to work together and perfectly balance energy loads, adding additional parts (depending on their nature) may cause conflict with this balance.
