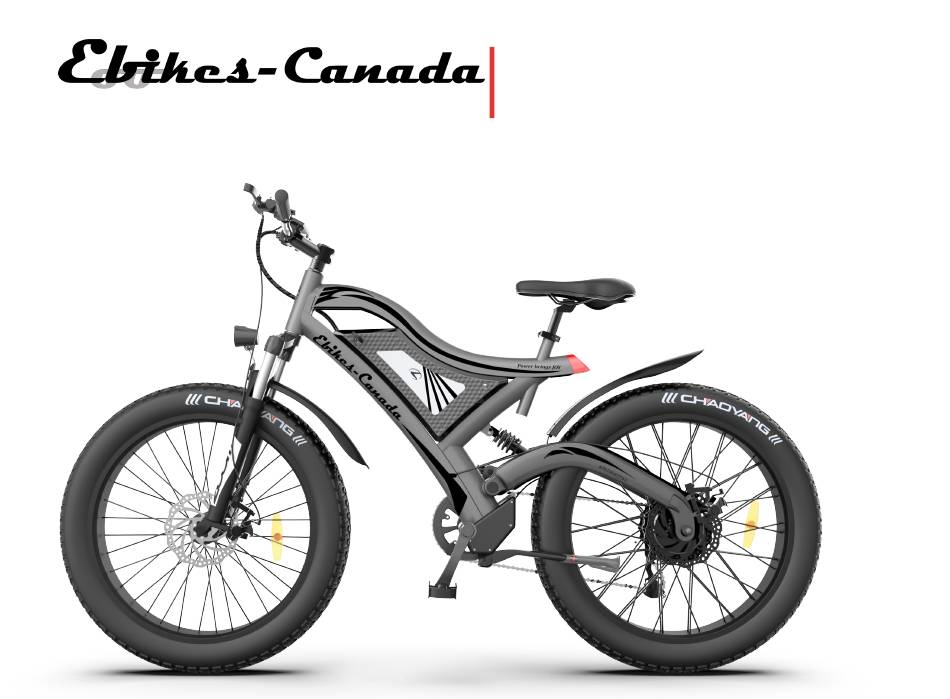

- Page 1 EBike User Manual...
-
Page 2: Table Of Contents
Table of Contents Table of Contents &&&&I& Product Photos &&&&&1/$-.2.-(*.0"+ &&&&J EBC-S03 &&&&& &&&& EBC-S04 &&&&& 12/&'(34#.5" &&&& !" &&&& EBC-S05 &&&& EBC-S07B &&&&&,).;."7 &&&& &&&&&3(+.-&<(."*$"("-$ EBC-S07D &&&& !& &&&& "' EBC - S18 &&&& "! Assembly instructions &&&& ""... -
Page 4: Ebc-S03
EBC-S03... - Page 5 EBC-S03 Frame 6061 Aluminum Alloy Battery 36V 14 AH Li-Ion Battery (504 Wh) Motor 350 Watt Bafang Rear Hub Motor Controller 36V 15A Charge Time 6-8 Hours Max Speed 32-38 Km/h (Unlocked) 45-90 Km Range Distance Front & Rear Disc Brake...
-
Page 6: Ebc-S04
EBC-S04... - Page 7 EBC-S04 Frame 6061 Aluminum Alloy Battery 36V 14 AH Li-Ion Battery (504 Wh) Motor 350 Watt Bafang Rear Hub Motor Controller 36V 15A Charge Time 4-6 Hours Max Speed 32-38 Km/h (Unlocked) Range Distance 45-90 Km Front & Rear Disc Brakes Brake Light Front &...
-
Page 8: Ebc-S05
EBC-S05... - Page 9 EBC-S05 Frame 6061 Aluminum Alloy Battery Battery 48V 15 AH Li-ion battery (720 Wh) Motor 500 Watt Bafang Rear Hub Motor Controller 48V 22 A Charge Time 4-6 Hours 40-45 Km/h (Unlocked) Max Speed Range Distance 45-90 Km Brake Front & Rear Disc Brakes Light Front &...
-
Page 10: Ebc-S07B
EBC-S07B... - Page 11 EBC-S07B Frame 6061 Aluminum Alloy Battery 48V 13AH Li-Ion Battery (624 Wh) Motor 500 Watt Bafang Rear Hub Motor Controller 48V 22A Charge Time 4-6 Hours Speed 40-45 Km/h (Unlocked) Range Distance 40-80 Km Front & Rear Disc Brakes Brake Light Front &...
-
Page 12: Ebc-S07D
EBC-S07D... - Page 13 EBC-S07D Frame 6061 Aluminum Alloy Battery 48V 13 Ah Lithium Ion Battery (624 Wh) Motor 500 Watt Rear Bafang Hub Motor Controller 48V 22A Charge Time 4-6 hours Max Speed 40-45 Km/h (Unlocked) Range Distance 40-80 Km Front & Rear Disc Brakes Brake Light Front &...
-
Page 14: Ebc-S18
EBC-S18... - Page 15 EBC-S18 Frame 6061 Aluminum Alloy Battery 48V 15 AH Li-ion Battery (720 Wh) Motor 500 Watt Bafang Rear Hub Motor Controller 48V 22A Charge Time 4-6 Hours Max Speed 40-45 Km/h (Unlocked) Range Distance 35-70 Km Brake Front & Rear Disc Brakes Light Front &...
-
Page 16: Assembly Instructions
Assembly Instructions INTRUCTIONS Open carton. Remove small accessories box and set aside. Remove bike from carton, place on a soft surface to avoid scratches. Cut zip ties securing the front wheel to the frame and set aside. Remove the protective foam and remaining zip ties. Open your accessories package and take out your tool kit. -
Page 17: Routine Checks
Routine Checks To ensure your safety, make the following functional checks before driving: Before you turn on the power 1. Check for rubbing brakes pads and adjust as needed. Check that the brake levers return to the neutral disengaged position when released. Check that the throttle is free flowing and returns to it’s off position when released. -
Page 18: Battery Charging
Battery Charging Charging Methods You can charge the battery while it is attached to the bike, or detach the battery from the bike frame and charge it separately. Please follow the best practice guidelines listed below for charging your battery and extend the life of your battery. With Battery Removed 1. -
Page 19: About Charging
About Charging Charging Guidelines * When the input and output terminal are connected, the red indicator light of the charger will turn on, showing that the battery is being charged. * 10 to 12 hours should be spent charging the battery before your first ride regardless of light colour. After the first charge, when the indication light of the charger turns green it will mean your battery is charged. -
Page 20: Driving
Driving Important Tips While Driving: 1. To reduce consumption, increase autonomy, and extend the motor life span, try to use the pedals during initial startups and climbs. 2. Maintain a 30 PSI tire pressure or as indicated on your tire wall. Low pressure will influence ease of use and decrease speed. 3. - Page 21 Driving How to Start Up the Bike: For the S05 and S18 series, insert key and turn it to the ON position. The displaynwill turn on, indicating that the bike is powered on. Top left is indicating the battery power Bottom left is indicating the PAS pedal assist level Level 0 = Thats 100% all you Level 1 = 20% motor 80% you...
-
Page 22: Basic Maintenance
Basic Maintenance For a safe driving experience, please keep your bike in optimal riding condition, regular maintenance should be performed. Regular Self-Checks 1. Tightening front wheel lug-nut, test for correct tire free rotation and wheel alignment. 2. Maintain a tire pressure of 30 PSI (or PSI as specified on your tire wall) at all times. 3. -
Page 23: Diagnose And Troubleshoot
Diagnose and Troubleshoot Most Common Solutions Symptoms Possible Causes (1) Insufficient battery power (1) Charge the battery (2) Faulty connections (2) Clean the connections It does not work (3) Key in wrong position (3) Turn the key into the correct position (1) Insufficient battery power (1) Charge the battery Irregular acceleration... -
Page 24: Recommended Torque Values For Threaded Fasteners
Recommended Torque Values for Threaded Fasteners Parts Torque Required(N.M) Handlebar 18-20 Handlebar-stem 18-20 Saddle 18-20 Seat-pillar 18-20 Front Wheel 16-25 Rear Wheel 25-35 Bottom Bracket Parts 35-55... -
Page 25: Controller Operating System
LCD Display & Controller Operating System... -
Page 26: Faq
What is the distance I can go on a single charge? There are many variables that impact how far you will be able to travel on a single charge like wind, hills, payload, and level of power assist, and rider size, but the range is typically between 35-45 to 70-90 Km. When you pedal you Extend your range. - Page 27 How many charges will my battery last for? The lithium-ion battery cells will provide approximately 800 “complete” charge cycles before a replacement is recommended. A complete charge cycle is considered one complete discharge, so if you only discharge the battery halfway before recharging, it would mean you can recharge 1600 times.
- Page 28 Users should take extra care ensuring that check and follow their local regulations on peak power (normally 500 Watts per Axle in Canada) and top speeds (normally 32 Kph in Canada). Ebikes-Canada brand ebikes are all under 500 Watt per axle Unless clearly stated in the product title and description.
- Page 29 What is the weight limit? The recommended weight limit for our 48V 500W ebikes is 300 lbs or roughly 140 kg including rider and gear. The recommended weight limit for our 48V 500W ebikes is 240 lbs or roughly 110 kg including rider and gear. Can I put a rear rack on it? Most of our ebikes already come with rear racks.
- Page 30 How many gears does the ebike have and why does it have gears if it is electric? The ebike has a thumb shift Shimano 7-speed gearing system. We find that users rarely change gears because the electric motor takes away all the strain, but it is still useful to have gears whenever you decide to pedal while cruising, or trying to get more exercise, or extend your range.
- Page 31 WARRANTY AND REPAIR Can I replace or add parts to the ebike? If you require replacement parts check with your local bike experts or reach out to us if you have any questions about compatibility Adding unapproved after market parts may void the warranty. The motor and controller were programmed to work together and perfectly balance the energy loads, adding additional parts may cause conflict with this balance.
- Page 32 www.Ebikes-Canada.com...
