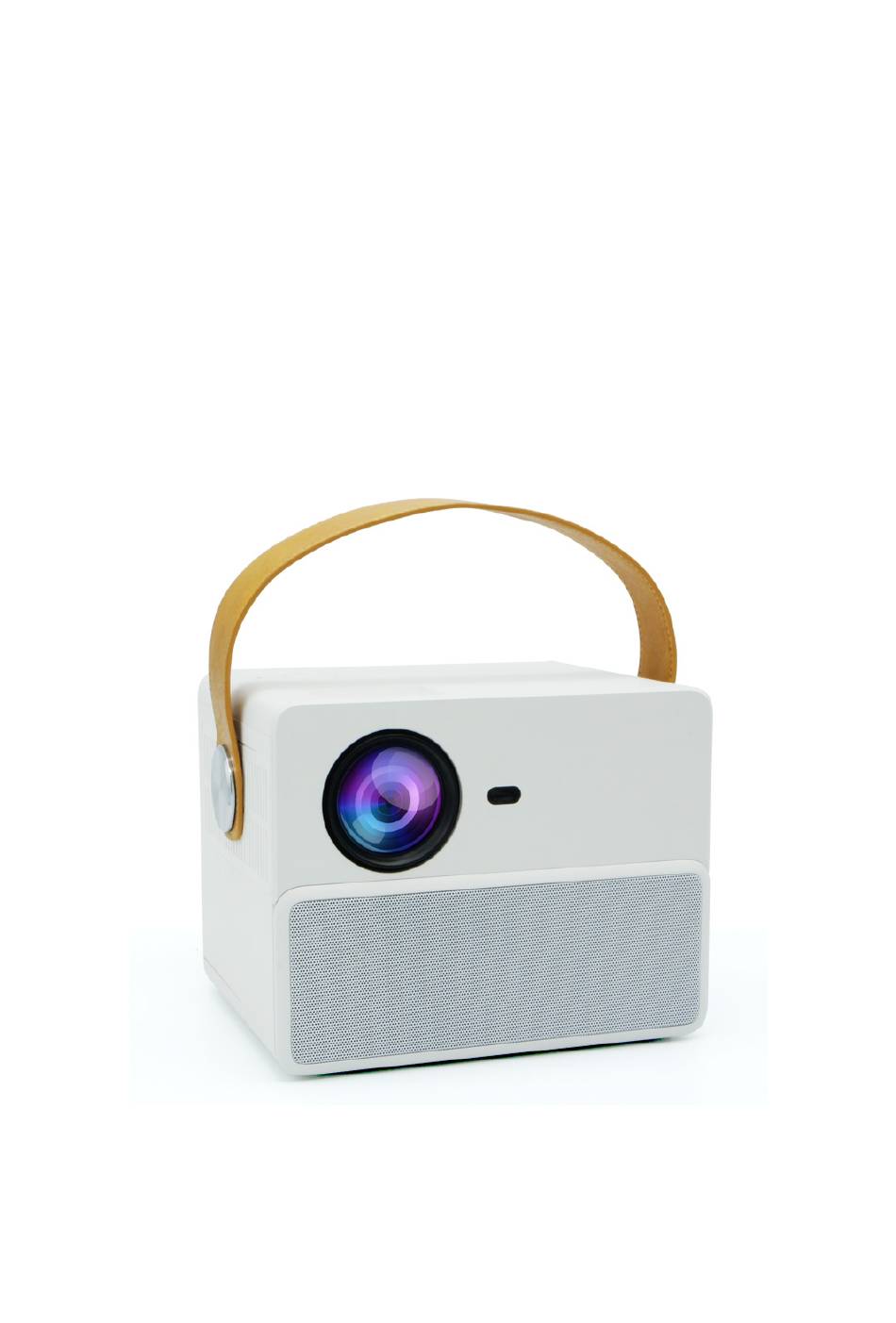

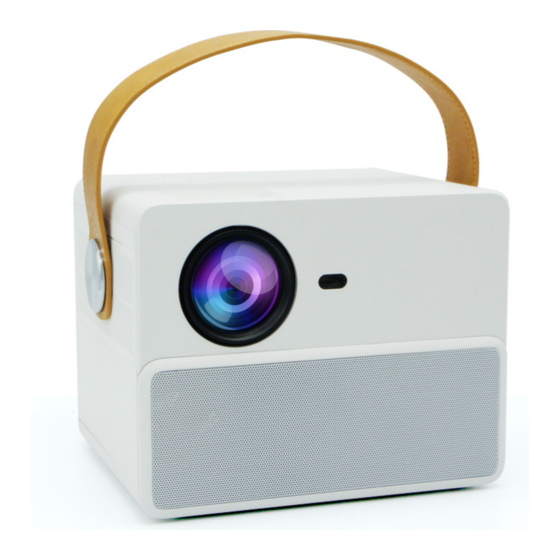

- Page 1 ※ Quick User Guide Mini Smart Home Theater...
-
Page 2: Safety Precautions
Safety Precautions Before using the product, please read the instruction manual ● carefully and keep it in a safe place in case of urgent use. Please use the machine carefully, and do not drop or hit it at ● high altitude to avoid damage to the original machine. Put on the lens protection cap after use to avoid scratches. -
Page 3: List Of Accessories
List of accessories Projector ×1 Remote control ×1 HDMI cable ×1 Avline ×1 Instruction ×1 Power cord ×1... - Page 4 Catalog Appearance and function description---------------------1 Device connection instructions------------------------------2 Projection screen debugging----------------------------------3 Device connection instructions------------------------------- 5 Bluetooth connection operation ----------------------------- 7 Multi-screen interactive instructions-------------------------8 Support file format and projection distance and size ---- 14 Product Warranty Card-------------------------------------- 15...
-
Page 5: Appearance And Function Description
Appearance and function description 1. Top view Focus knob Trapezoid correction knob On/Off button return key Indicator light Navigation + OK menu Source key Volume down Volume up Mute button... - Page 6 2. Rear view TF card port Speaker port AV cable port HMDI port USB port VGA port IR remote control receiving window...
- Page 7 Projection screen debugging ● When the image of the screen is blurred (Figure 1), it is recommended to adjust the focus knob until the image is clear. ● When the image is distorted in vertical trapezoid (Figure 2), it is recommended to adjust the keystone correction knob until the screen is vertical ●...
- Page 8 Keep the projector horizontal Figure 3 Picture rotation Let the projector lens face the Figure 4 The size of the curtain vertically two ends are inconsistent...
- Page 9 Device connection instructions Notebook/ Computer headset DVD Blu-ray player Phone VCD / DVD player Speaker HDMI cable laptop VGA cable U disk card AV cable ※: Represents the signal flow direction The yellow end of the AV cable is the video signal, white is left channel, red is right channel.
- Page 10 Video AV Multi-screen Bluetooth TF card HMDI SETUP Click the remote control signal or the S button of the projector, select the signal channel shown above, then connect the relevant playback device. 1. Select the video AV, you can connect the VCD or DVD by connecting the AV cable.
- Page 11 Bluetooth connection operation Select the Bluetooth connection of the projector, enter the interface below, open the Bluetooth of the mobile phone , search for the "projectorBT" signal of the projector, match it, and the projector will give a voice prompt when the match is successful.
- Page 12 Multi-screen interactive connection instructions Our projector's mobile wireless connection feature has two connectivity channels, the Android phone connection channel and the Apple phone connection channel. Wireless same-screen channel selection: Android phone connection select Sansr connection (interface as MIRACAST) Apple phone connection select Apple Connection Channel Connection (interface as IOS Display) Video push channel selection: both Android phones and Apple phones are unified...
- Page 13 1: Apple Wired Connection Operation 1.1 Switch channels (Android and Apple channels switch by double- clicking confirmation key) appear in the following interface. 1.2 Plug in the data line, connect apple phone, if the data lineis no problem, there will be a pop window of the trust device, be sure to choose trust, click after waiting for about 1 second will achieve the same screen.
- Page 14 3： Android Wired same screen Enter the channel interface. (There are only two icons in the interface) 3.2 Connect the data cable, open the developer option for yourphone, and then click on the USB debug option. Note: The Developer Options for different phones are opened differently, if you need to, please go online to find out how to open the Developer Options for your model.
- Page 15 4: Android Wireless Same Screen Double-click key to switch small board mode, enter the following interface (the interface only has two icons) 4.2 Open your phone WIFI, connect to any network, then enter the phone settings, click "More link means"-"wireless display", and then select connect your projector, wait 1 second to achieve the same screen.
- Page 16 5.wireless video push operation of Android&Apple 5.1 Push function uses three target interfaces 5.2 Turn on the phone's WIFI, connect to the LOLLIPOP-819686 device, and enter the password 12345678. The device name will change according to different machine, but all start with LOLL, and the password is 12345678.
- Page 17 5.4 Enter the WIFI setting interface and select WiFi AP. Click Scan,enter to find WIFI in your home andEnter the password and click "Connect" . 5.5 When the projection interface becomes the following picture, it means that the connection is successful (the same WIFI only needs to be connected once) 5.6 Click on any APPs that support projection,choose the video you like,click the projection button and enjoy your...
-
Page 18: Projection Distance And Size
Support file format Audio MP3/WMA/ASF/OGG/ACC/WAV file picture JPEG/BMP/PNG file 3GP(H.263,MPEG4)/AVl(XVID,DIVX,H.264)/ M K V ( X V I D , H . 2 6 4 , D I V X ) / F L V ( F L V 1 ) / video MOV(H.264)/MP4(MPEG4,AVC)/MEP(MEPG1)/ file... - Page 19 WARRANY CARD （Mr./Miss） ______________________________________ Customer's name _________________________________________ Custaact phone Customer's _________________________________________ address _________________________________________ _________________________________________ Store's name _________________________________________ Store's address _________________________________________ Date of purchase...
- Page 20 ※ Product warranty policy description 1.Within 7 days from the date of purchase, failures caused by improper use or man-made causes are determined to be failures caused by product components. You can enjoy the return service with valid purchase bills and valid three-guarantee certificates. 2.
