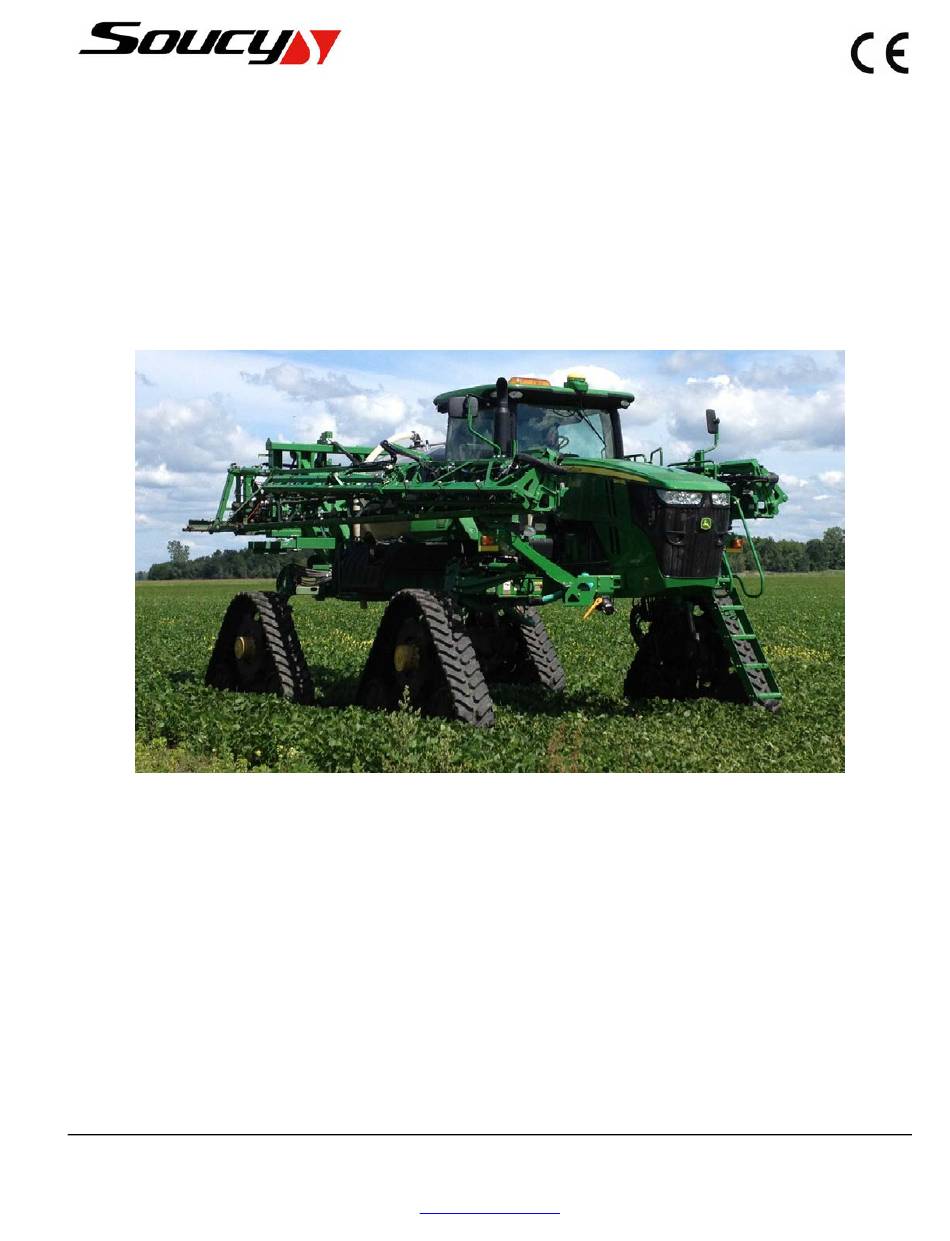

INSTALLATION, OPERATION AND MAINTENANCE GUIDE
FOR SOUCY TRACK SYSTEMS:
S-TECH 7016 installed on the following John Deere self-propelled sprayer models:
R4030 – R4038 – 4730 – 4830
A-8L0104-2-EN
May 2017
Rev. B
5450 St-Roch Street, P.O. Box 400 / Drummondville (Quebec) J2B 6W3 / CANADA
Toll free: 1 877 474-6665
Fax: 819 477-9423
www.soucy-track.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-TECH 7016 and is the answer not in the manual?

Questions and answers

Related Manuals for Soucy S-TECH 7016

Summary of Contents for Soucy S-TECH 7016

  • Page 1 INSTALLATION, OPERATION AND MAINTENANCE GUIDE FOR SOUCY TRACK SYSTEMS: S-TECH 7016 installed on the following John Deere self-propelled sprayer models: R4030 – R4038 – 4730 – 4830 A-8L0104-2-EN May 2017 Rev. B 5450 St-Roch Street, P.O. Box 400 / Drummondville (Quebec) J2B 6W3 / CANADA...
  • Page 2 Page Intentionally Left Blank 5450 St-Roch Street, P.O. Box 400 / Drummondville (Quebec) J2B 6W3 / CANADA Toll free: 1 877 474-6665 Fax: 819 477-9423 www.soucy-track.com...

  • Page 3: Table Of Contents

    1.1 S-TECH 7016 TRACK SYSTEM SPECIFICATIONS ........

  • Page 4: Title Page

    TITLE PAGE 9.1 BREAK-IN PERIOD, NEW TRACK............9.2 USE OF TALC .

  • Page 5: Section 1 S-Tech 7016 Load And Speed Rating And Track System Specifications

    SECTION 1 S-TECH 7016 LOAD AND SPEED RATING AND TRACK SYSTEM SPECIFICATIONS Table 1.1 S-TECH 7016 LOAD AND SPEED RATINGS Maximum speed Front Rear 25 mph 22 000 lb 22 000 lb Road travel 40 km/h 10 000 kg 10 000 kg ≤...
  • Page 6 NOTICE • WHEN DRIVING ON ROADS OVER LONG DISTANCE OR IN HOT WEATHER, SPRINKLE A CUP OF TALC POWDER IN EACH TRACK SYSTEM TO LUBRICATE THE TRACK AND WHEELS. • REDUCE SPEED AND LOAD ON CROWNED ROADS TO PREVENT UNEVEN TRACK WEAR. •...

  • Page 7: S-Tech 7016 Track System Specifications

    1.1 S-TECH 7016 TRACK SYSTEM SPECIFICATIONS Figure 1.1 S-TECH 7016 Rear View Measurements ITEM DESCRIPTION VALUE MM (IN) CLEARANCE ON TRACK 1626 (64) OVERALL WIDTH 3658 (144) OVERALL HEIGHT ON TRACKS 4090 (161) OVERALL HEIGHT ON TRACKS (AIRBAG DEFLATED) 3990 (157)
  • Page 8 Page Intentionally Left Blank INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 9: Section 2 Introduction

    • Keep this guide handy while installing, operating, and maintaining your system. • This equipment shall be used for agricultural operations only. Contact Soucy Track if you wish to use it for other purposes. • Running the sprayer over agrarian land using agricultural rubber tracks ensures that the surface of the farmland is protected from significant degradation.
  • Page 10 Figure 2.1 Track System Main Assembly ITEM DESCRIPTION ATTACHMENT UNDERCARRIAGE TENSIONER MID ROLLERS IDLERS SPROCKET RUBBER TRACK INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 11: Section 3 Safety

    The symbol above draws your attention to important instructions concerning your personal safety. Read the accompanying message carefully to avoid personal injury or death. • Keep this manual in the cab while using the Soucy Track System. • Always remove key from ignition before working on the vehicle.

  • Page 12: Safety Signs Used In This Guide

    • Check that safety stickers are intact and visible. Replace damaged or illegible stickers. • Read the installation, operation and maintenance guide of your Soucy Track system before installing and operating your system. • Make sure the lifting equipment has the capacity to keep the vehicle stable during installation of the system.
  • Page 13 BROKEN OR MISSING HARDWARE. WARNING HEAVY PARTS CAN CAUSE INJURIES. TWO PEOPLE ARE REQUIRED FOR ASSEMBLY AND REMOVAL OF THE SOUCY TRACK SYSTEM. USE A JACK, A FORKLIFT OR A HOIST TO HANDLE SYSTEM AND SUB-ASSEMBLIES. • Check for possible interferences between the tracks and the various accessories used with a sprayer..

  • Page 14: Safety Stickers

    3.4 SAFETY STICKERS • Replace any missing, damaged or illegible sticker. • Soucy Track recommends placing the different stickers in the cabin, in an area where they won’t block the outside view: Figure 3.3 SAMPLE INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 15 INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 16 Page Intentionally Left Blank INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 17: Section 4 General Information

    The track serial number is engraved on its inner surface. DEALER: PLEASE COMPLETE THE TRACK SYSTEM REGISTRATION FORM ON LAST PAGE AND RETURN TO SOUCY TRACK TECHNICAL SERVICE DEPARTMENT. INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 18 Page Intentionally Left Blank INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 19: Section 5 Preparation

    SECTION 5 PREPARATION 5.1 TOOLS LIST 1. The following tools are required to install the track system on a tractor: • Metric tools box • Impact wrench • Impact sockets: 13, 21, 24, 30 and 36 mm. • Wrench: 13, 21, 24, 30 and 36 mm. •...

  • Page 20: Pre-Installation Recommendations

    • Place vehicle on jacks at the end where the track systems are being installed. NOTICE ARRANGE JACKS TO PREVENT INTERFERENCE WITH THE ATTACHMENTS. 5.3 PRE-INSTALLATION RECOMMENDATIONS • Paint mark bolts for quick visual inspection. • Remove paint from contact surfaces on vehicle axle housings, track system attachments, and frames. This will prevent hardware loosening that can result in broken components and injuries.

  • Page 21: Section 6 Part List And Installation Of System

    SECTION 6 PART LIST AND INSTALLATION OF SYSTEM 6.1 PART LIST OF TRACK SYSTEM INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 22 NOTICE R4030 AND R4038 MODELS ONLY Figure 6.1 MAIN PART LIST OF S-TECH 7016 FOR JOHN DEERE R4030 AND R4038 R4030 / R4038 ITEM PART # QTY DESCRIPTION 1160RQ44-2 S-TECH 7016 TRACK 8031027-0180-1 R4030 FRONT RIGHT BRACKET ASS'Y 8031027-0920-1 R4030 FRONT LEFT BRACKET ASS'Y...
  • Page 23 NOTICE 4730 AND 4830 MODELS ONLY Figure 6.2 MAIN PART LIST OF S-TECH 7016 FOR JOHN DEERE 4730 AND 4830 4730 / 4830 ITEM PART # DESCRIPTION 1160RQ44-2 S-TECH 7016 TRACK 8031032-0024-2 LEFT BRACKET ASS'Y JD 4730 8031032-0025-2 RIGHT BRACKET ASS'Y JD 4730...
  • Page 24 NOTICE R4030 AND R4038 MODELS ONLY Figure 6.3 PART LIST OF FRONT BRACKET WITH BRAKES FOR JOHN DEERE R4030 AND R4038 (8031027-180-1) R4030 / R4038 INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 25 NOTICE R4030 AND R4038 MODELS ONLY Table 6.1 PART LIST OF FRONT BRACKET WITH BRAKES FOR JOHN DEERE R4030 AND R4038 (8031027-180-1) ITEM PART # QTY DESCRIPTION 8031027-0190-1 SIDE SHIM LONG # 1 8031027-0200-1 SIDE SHIM LONG # 2 8031027-0210-1 SIDE SHIM LONG #3 8031027-0220-1 SP-716 MAIN PIVOT AXLE...
  • Page 26 NOTICE R4030 AND R4038 MODELS ONLY Figure 6.4 PART LIST OF REAR BRACKET FOR JOHN DEERE R4030 AND R4038 (8031027-0800-1) R4030 / R4038 INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 27 NOTICE R4030 AND R4038 MODELS ONLY Table 6.2 PART LIST OF REAR BRACKET FOR JOHN DEERE R4030 AND R4038 (8031027-0800-1) ITEM PART # QTY DESCRIPTION 8031027-0190-1 SIDE SHIM LONG # 1 8031027-0200-1 SIDE SHIM LONG # 2 8031027-0210-1 SIDE SHIM LONG #3 8031027-0220-1 SP-716 MAIN PIVOT AXLE 8031027-0230-1...
  • Page 28 NOTICE 4730 AND 4830 MODELS ONLY Figure 6.5 PART LIST OF REAR LEFT BRACKET WITH BRAKES FOR JOHN DEERE 4730 AND 4830 (8031032-0024-2) 4730 / 4830 INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 29 NOTICE 4730 AND 4830 MODELS ONLY Table 6.3 PART LIST OF REAR LEFT BRACKET WITH BRAKES FOR JOHN DEERE 4730 AND 4830 (8031032–0024-2) ITEM PART # QTY DESCRIPTION 8031027-0220-1 SP-716 MAIN PIVOT AXLE 8031027-0230-1 LOCKING DEVICE 8031027-0240-1 SAFETY PLATE 8031027-0530-1 SHIM # 4 PIVOT 8031027-0840-1 SHIM # 2 (SHAFT CAMBER)
  • Page 30 NOTICE 4730 AND 4830 MODELS ONLY Figure 6.6 PART LIST OF REAR RIGHT BRACKET WITH BRAKES FOR JOHN DEERE 4730 AND 4830 (8031032–0025-2) 4730 / 4830 INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 31 NOTICE 4730 AND 4830 MODELS ONLY Table 6.4 PART LIST OF REAR RIGHT BRACKET WITH BRAKES FOR JOHN DEERE 4730 AND 4830 (8031032–0025-2) ITEM PART # QTY DESCRIPTION 8031027-0220-1 SP-716 MAIN PIVOT AXLE 8031027-0230-1 LOCKING DEVICE 8031027-0240-1 SAFETY PLATE 8031027-0530-1 SHIM # 4 PIVOT 8031027-0840-1 SHIM # 2 (SHAFT CAMBER)
  • Page 32 Figure 6.7 PART LIST OF FRAME (8032007-0160-1) INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 33 SPRAYER 716 RIGHT FRAME - PAINTED 78032007-0310-3 SPRAYER 716 LEFT FRAME - PAINTED 8032007-1080-1 S-TECH 7016 IDLER ROCKER LINK ASS'Y 8034011-0100-1 S-TECH 7016 MID ROLLERS AXLE AND WHEELS ASS'Y 8034011-0090-1 SP-716 IDLER AXLE ASS'Y 78032007-1060-3 REAR IDLER AXLE UBOLT M16 X 2.0 78032007-0200-1 REAR MID-ROLLER AXLE UBOLT M16 X 2.0...
  • Page 34 Figure 6.8 PART LIST OF SPROCKET ASSEMBLY (8033030-0010-1) ITEM PART # DESCRIPTION 78033030-0040-1 28 PITCH, 3IN WIDE HALF SPROCKET S1111-16070-0F7 HEX. BOLT CL10.9 ZnNi M16-2.0 X 70 (DIN 931) S4186-M160Q-097 HEX. NYLON NUT CL10 ZnNi M16-2.0 (DIN 985) INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 35 Figure 6.9 PART LIST OF SPROCKET ADAPTOR 4730 / 4830 8033032-0060-1 JD 4730 SPROCKET ADAPTOR 8033038-0001-1 JD 4830 SPROCKET ADAPTOR Figure 6.10 PART LIST OF SPROCKET ADAPTOR R4030 / R4038 8033021-0060-1 JD R4030 SPROCKET ADAPTOR INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 36 Figure 6.11 PART LIST OF IDLER ASSEMBLY (8034011-0090-1) ITEM PART # QTY DESCRIPTION 7S6485-00002-000 M16 X 1.5 BRASS OIL SIGHT PLUG WITH REFLECTOR 8034007-0050-1 HARDENED WASHER 8034011-0030-1 SP-716 IDLER AXLE SHAFT ASS'Y 8034011-0050-1 HUB CAP 8034011-0120-1 SP-716 IDLER WHEEL AND HUB ASS'Y B32011-XQ-SKF TAPERED ROLLER BEARING 55 X 90 X 23 S1131-06015-0D7...
  • Page 37 Figure 6.12 PART LIST OF MID-ROLLER ASSEMBLY (8034011-0060-1) ITEM PART # QTY DESCRIPTION 78034011-0030-1 S-TECH 7016MID ROLLERS HUB 7S6485-00002-000 M16 X 1.5 BRASS OIL SIGHT PLUG WITH REFLECTOR 8034007-0050-1 HARDENED WASHER 8034011-0020-1 SP-716 MID ROLLERS AXLE SHAFT ASS'Y 8034011-0050-1 HUB CAP B32011-XQ-SKF TAPERED ROLLER BEARING 55 X 90 X 23 S1131-06015-0D7...

  • Page 38: Front Components Removal

    6.2 FRONT COMPONENTS REMOVAL WARNING PRIOR THE INSTALLATION OF THE TRACK KIT, TURN OFF THE ENGINE, PUT IN TWO— WHEEL MODE, AND BLOCK THE REAR WHEELS. WARNING WHEN THE SPRAYER IS RAISED, MAKE SURE THAT IT IS PROPERLY SECURED / SUPPORTED TO PREVENT IT FROM ACCIDENTALLY FALLING DURING THE INSTALLATION OF THE TRACKS.
  • Page 39 3. Remove wheel, fender, brake caliper, disk and caliper brackets. NOTICE CALIPER HYDRAULIC HOSE DOES NOT NEED TO BE DISCONNECTED. 4. Use a M20x2.5 tap to remove dust and rust on rear knuckle caliper bracket holes. 5. Loosen hydraulic hose manifold and remove manifold bracket (A) from knuckle. NOTICE A GAP OF 1.5 INCHES BETWEEN THE BRACKET (A) AND THE KNUCKLE (B) IS REQUIRED FOR THE INSTALLATION.

  • Page 40: Bracket Installation

    6.3 BRACKET INSTALLATION 6.3.1 BRACKET INSTALLATION FOR JD R4030 NOTICE R4030 AND R4038 MODELS ONLY 1. Install front right bracket (A) on knuckle (B) with bolts (1) and washers (2) .The longest part of the bracket must be placed forward (C). 2.
  • Page 41 4. Install rear bolts (C) with lock washers (B) through OEM hose manifold bracket (A). INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 42 5. Install reinforcements (1 ), new caliper brackets (2) and shims (3 and 4) on knuckle with bolts (5) and washers (6). 6. Fill the gap between right bracket (7) and reinforcements (1) with shims (8, 9 and 10). 7. Install bolts (11) and washers (12). ITEM PART # 8031027_0740_1...
  • Page 43 8. Re-install disc (A) and brake caliper (B). using OEM bolts and nuts. INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 44: Bracket Installation For Jd 4730 And 4830

    6.3.2 BRACKET INSTALLATION FOR JD 4730 AND 4830 NOTICE 4730 AND 4830 MODELS ONLY 1. Install front right bracket (A) on knuckle (B) with bolts (1 and 2), washers (3 and 8) and nuts (4). The longest part of the bracket must be put forward (D). 2.
  • Page 45 4. Install reinforcements (1 ), new caliper brackets (2) and shims (3) on knuckle with bolts (8 and 9) and washers (10). 5. Fill the gap between right bracket (4) and reinforcements (1) with shims (5 and 6). 6. Install bolts (7), washers (8) and nuts (11). 7.
  • Page 46 8. Re-install disc (A) and brake caliper (B). using OEM bolts and nuts. INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 47: Frame Installation

    6.4 FRAME INSTALLATION NOTICE IDLER AXLE SHIM (2) MUST BE INSTALL ONLY ON THE UNDERCARRIAGE OF THE REAR AXLE OF THE SPRAYER. 1. Install rear idler axle using U-bolts (3) and nuts (1). Do not install axle shim (2) on the undercarriage of the front axle of the sprayer.
  • Page 48 2. Install pivot axle (1) in frame (2) with holes on the pivot axle up. Insert shims (3) on the pivot axle. Align frame with right bracket (4) and carefully lower sprayer on frame, ensuring that pivot axle fits in the right bracket. 3.

  • Page 49: Sprocket Installation

    6.5 SPROCKET INSTALLATION NOTE • To ease sprocket installation, remove support wheels (A) on outer side of the sprayer. • Make sure OEM wheel shim is installed on rear final drive before installing sprocket. • Make sure that the part number on the sprocket sections are facing the adaptor. 1.
  • Page 50 3. Verify that there is enough gap between rollers wheels and sprocket. Gap should be at least 3/8 in (10 mm) to ensure safe operation. B − B MIN 3/8 (9.5mm) ITEM DESCRIPTION MIN 3/8” (9.5mm) on both side 4. To modify the sprocket position regarding to the undercarriage; change arrangement of the lateral shims (1) on the pivot axle (2).

  • Page 51: Track Installation

    6.6 TRACK INSTALLATION 1. Remove wire lock pin (1) and tension link locker (2). 2. Loosen the tensioner by turning the adjustement rod (3) counter-clockwise (use a 21 mm wrench). ITEM PART # S5351_08032_002 8032007_1050_1 8032007_1070_1 INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 52 3. Apply soapy water or silicon/Teflon base lubricant to the internal face of the track before installing the track, this will ease installation of the track. NOTE NOTE A = Direction of rotation of track NOTE A INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 53 4. Use a fork lift to position the track over the planetary. 5. Push the lug row between wheel. 6. Lower the track kit to seat the wheels on the track. INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 54 7. Use a fork lift to place the track over the sprocket and use a pry bar to align the lug with the sprocket. 8. Push the track with the fork lift until the track is centered with the sprocket. 9.
  • Page 55 NOTICE TENSION MUST BE MEASURED IN THE FRONT PORTION OF THE TRACK AFTER HAVING MOVED THE MACHINE FORWARD. 11. To lock tensioner, insert wire lock pin (1) and tension link locker (2). INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 56 Page Intentionally Left Blank INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 57: Section 7 Track System Road Test And Final Adjustments

    Make sure no one is in the danger zone of the vehicle while the engine is running or the vehicle is moving. • If there is interference, contact your Soucy Track dealer. Check for interference at these points: NOTICE SOUCY TRACK RECOMMENDS INSPECTING THE TRACK SYSTEM EVERY 250 HOURS, OR ONCE A YEAR (SEE THE MAINTENANCE SECTION).

  • Page 58: Front Track Kit Parallelism Adjustment

    7.2 FRONT TRACK KIT PARALLELISM ADJUSTMENT NOTE • Applicable to FRONT frame only. • Do the adjustment on a flat surface. • Measure the distance from the idler wheel hub at the front and the back of the undercarriage. 1. Use a tape to measure the distance between the frames at their front and back. 2.
  • Page 59 NOTICE TO AVOID FRONT WHEEL TOE MISADJUSTMENT, DO NOT TURN THE STEERING FULL LOCK ON EITHER SIDE WHEN MOVING BACKWARD. INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 60: Track Tension Adjustment

    If they need adjustment, use tensioners of the undercarriage to adjust the track tension. • Soucy Track recommends the following method of measuring deflection. Other methods can be used. • Drive the sprayer forward for +/- 5 feet (1.5 m.) to release tension due to sprocket drive and stop without moving backward.
  • Page 61 1. Place the tip of the tape on the inner surface of the track. Position the tape on the side of the sprocket as shown. 2. Place your thumb over a number on the tape, without applying pressure. 3. Let someone grab the track firmly on each side and push hard two or three times. NOTE The tape should slide.
  • Page 62 4. Note the new number where your thumb rests and subtract from the first number to get the current deflection value. To obtain a deflection as per the number in Table 7.1. To check if the track tension is adequate, proceed with next steps to apply a force as per Table A.
  • Page 63 Deflection (mm / in) (kg / lb) (mm / in) (kg / lb) S-TECH 7016 NOTE • The tolerance is +/- 6mm in each case. • Those value are indicative. Do not put too much tension on the tracks. It is better to have a slightly loose track.

  • Page 64: Track Alignment

    7.4 TRACK ALIGNMENT 1. Do this procedure if rubber track lugs are overheating, and on a flat surface. 2. Drive the vehicle at 30 kmh (20 mph) for 2.5 km (1.5 miles) in order to determine whether the track is aligned. 3.
  • Page 65 TRACK TENSION MIGHT HAVE TO BE LOOSE TO CREATE ENOUGH ROOM BETWEEN PIVOT AXLE AND HOUSING. • SOUCY RECOMMEND ADDING SHIM OF 1/16 AT A TIME. 9. When the shim is installed, tight the pivot axle bolts. 10. Adjust the tension of the track.
  • Page 66 Page Intentionally Left Blank INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 67: Section 8 Track System Maintenance

    ✔ ✔ ✔ ✔ ✔ ✔ • Soucy track recommends reducing by half the maintenance intervals recommended by the manufacturer for the planetary gear oil, hydrostatic oil and filters. • Check front wheel toe every 25 hours and rephase steering system if needed.

  • Page 68: Axle And Wheel Lubrication

    8.2 AXLE AND WHEEL LUBRICATION 1. To check oil level in wheel hub; a. Use an 20 mm socket to remove the oil plug. b. Oil level should be between 1/2 and 2/3 of hub capacity. Use TO-4 SAE 30 oil. Figure 8.1 Lubricating Points 8.3 CLEANING AND STORAGE NOTE...

  • Page 69: Long-Term Storage Conditions

    8.4 LONG-TERM STORAGE CONDITIONS • Store the track system indoors in a cool dry area (4 °C to 25 °C, 40 °F to 75 °F). Avoid exposure to UV rays. Cover system if stored outside. • Avoid storing at temperatures greater than 35 °C (95 °F) for extended periods. •...
  • Page 70 Page Intentionally Left Blank INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 71: Section 9 Track System Operation

    • If accelerated scuffing should occur with high heat on the drive lugs, see SECTION 6 of this manual for adjustment and alignment procedures or contact your Soucy Track dealer. 9.2 USE OF TALC •...

  • Page 72: Safe Operation

    • Slowly start working when operating in cold weather. • Contact your Soucy Track dealer if you have questions about operating your track system. 9.4 TRACK ROTATION • Rotate track from side to side after 1,000 hours of normal use or 500 hours of intensive use (heavy load and road travel).

  • Page 73: Road Travel Guidelines

    The combination of high speeds and heavy loads, as well as uneven road conditions, may lead to track overheating and premature damage to rubber tracks, wheels and other components. • To avoid this kind of inconvenience, Soucy Track recommends adjusting your speed on long distance trips, hot pavement or uneven road surfaces. •...
  • Page 74 Page Intentionally Left Blank INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 75: Section 10 Warranty Policy And Procedure

    1. This warranty policy applies to the following products only: Soucy Track Systems from Soucy International Inc. This document is a guide explaining the warranty’s limited conditions for the agricultural track system and winter trail groomer. Please note that Soucy International Inc. retains the right to make a final decision regarding repair or replacement of parts.

  • Page 76: Exclusion

    For any loss of earnings, or loss of use of an equipment part, caused by a mechanical failure; • When Soucy International Inc. is not informed by the client or authorized agent of any defect or failure within a reasonable time or during the warranty period (please refer to the "TERMS" section for more information);...

  • Page 77: Terms

    2. Only claims made by an agent authorized by Soucy International Inc. during the coverage period will be considered for warranty purposes; 3. The Claim Form of Soucy Track must be duly completed and handed in with a proof of purchase for the Soucy Track System;...
  • Page 78 Page Intentionally Left Blank INSTALLATION, OPERATION AND MAINTENANCE GUIDE...

  • Page 79: Section 11 Replacement Program For Rubber Tracks

    Rubber tracks from Soucy International Inc. benefit from a prorated replacement warranty program. • Soucy rubber track used for agricultural and winter-trail grooming purposes: prorated replacement coverage of up to twenty-four (24) months or two thousand (2000) hours of operation, whichever comes first, based on the end user...

  • Page 80: Other Conditions

    11.5 OTHER CONDITIONS • Warranty track must be purchased within 90 days of approval of the claim. • The manufacturer reserves the right to claim the track for a period of three months to conduct product improvement verifications. • The manufacturer reserves the right to cancel in part or in whole the warranty if an evidence of non-compliance is determined.

  • Page 81: Section 12 Appendix

    SECTION 12 APPENDIX APPENDIX A: STANDARD TORQUE TABLE Table 12.1 STANDARD TORQUE TABLE Bolt Ø (mm) Thread Coarse Fine Coarse Fine Coarse Fine Coarse Fine Coarse Fine Ptich 1,00 0,75 1,25 1,00 1,50 1,00 1,75 1,25 2,00 1,50 (mm) Class Tightening Torque Nm 10,9 12,9...
  • Page 82 Table 12.2 COUNTERSUNK BOLTS Bolt Ø (mm) Class Tightening Torque Nm 10,9 Bolt Ø (mm) Class Tightening Torque (ft-lb) 10,9 NOTE • Applicable to new lubricated, new unlubricated and used lubricated bolts. • Torque indicated on drawing is always prevailing. Torque Tolerance ± 5% INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 83 INSTALLATION, OPERATION AND MAINTENANCE GUIDE...
  • Page 84 In order to prevent any transcription and/or transmission error during registration process, We recommend using the electronic copy of this form available on the Soucy Track Data Center at: http://datacenter.soucy-track.com. Note that you must be a Soucy Track dealer to apply for a free access to this Web site TRACK SYSTEM REGISTRATION FORM Fill out the following fields and return to Soucy Track Technical Service Department at service.soucy-track@soucy-...
