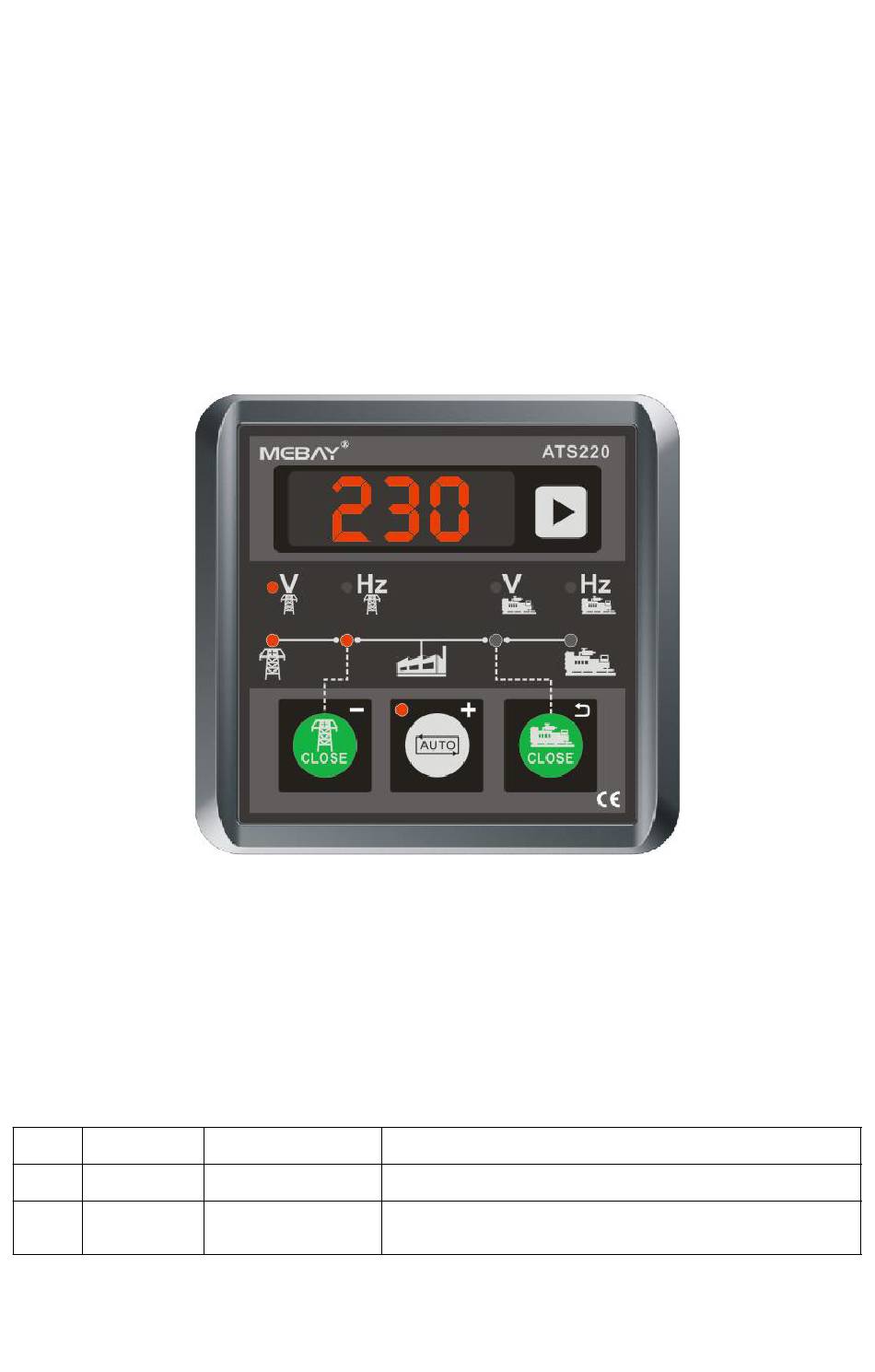

- Page 1 ATS220 ATS CONTROLLER USER MANUAL Software Version Date Note Version V1.0 2018-9-1 Original release. The function of phase number selection for V1.1 2019-10-8 generator and mains input is added.
- Page 2 ATS220 ATS CONTROLLER USER MANUAL Symbol Description Symbol Description Remind operators to operate correctly, otherwise it may cause the equipment not to work correctly. Note It is indicated that potential hazards can damage equipment without proper precautions. Be care It is indicated if appropriate preventive measures are not taken,...
- Page 3 ATS220 ATS CONTROLLER USER MANUAL Warning 1. The installation of this equipment must be carried out by professionals. 2. When installing and operating the controller, please read the entire instruction manual first. 3. Any maintenance and commissioning of the equipment must be familiar with all the equipment, safety standards and precautions in advance, otherwise it may cause personal injury or damage to related equipment.
- Page 4 1. All rights reserved. No part of this duplication may be reproduced in any material form(including photocopying or storing in any medium by electronic means or others) without the written permission of the copyright holder. 2. MEBAY Technology reserves the rights to change the contents of this document without prior notice.

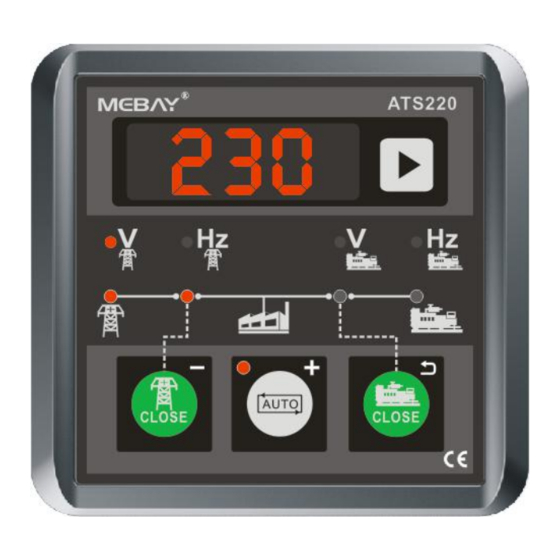

- Page 5 ATS220 ATS CONTROLLER USER MANUAL Summary ATS220 is one controller with ATS system of Mains and genset power,which can control the ATS switch by auto or manual mode to apply for mains and gens power.It is with 4 digits LED tube which can display the single-phase gens voltage, gens frequency, mains voltage, mains frequency.
- Page 6 ATS220 ATS CONTROLLER USER MANUAL Overall Dimension and Wiring Diagram Overall Dimension: Descriptions of terminal connection Cable cross Function Description sectional area Power Input B- 2.5mm DC8-36V Continuous. Power Input B+ 2.5mm Remote Start Input Ground connection is active.
- Page 7 ATS220 ATS CONTROLLER USER MANUAL Volts free, Relay contact, Normally 1.0mm Gens Close Output Open output，Max5A(250VAC) 1.0mm Gens Voltage Input L 1.0mm Gens voltage Input，AC30-300V Gens Voltage Input N 1.0mm Volts free, Relay contact, Normally 1.0mm Mains Close Output Open output，Max5A(250VAC) 1.0mm...
- Page 8 ATS220 ATS CONTROLLER USER MANUAL Installation instruction The controller should be installed by two accessories and screw. Panel Cutout：W67mm*H67mm. Note: If the controller is installed directly in the genset shell or other fluctuated equipment, the rubber pad must be installed.
- Page 9 ATS220 ATS CONTROLLER USER MANUAL Panel instruction Indicator name Main function Mains voltage.When the load is switched to the mains Mains Voltage Indicator supply, the display will display the mains voltage Mains Frequency Indicator Mains frequency Gens voltage.When the load is switched to the gens...
- Page 10 ATS220 ATS CONTROLLER USER MANUAL Manual and Auto modes are available for this controller, press switch; when the LED is lighted like this , it means working under auto mode. When the LED is lighted like this , it means working under Manual mode, ...
- Page 11 ATS220 ATS CONTROLLER USER MANUAL 2. Under display mode, Press to shift down the parameters, press to shift up the parameters, press to get into parameter changing page. 3. Under display mode, press to get into parameter changing page，this option’s last digit become flashed,then it means entering the edition page.
- Page 12 ATS220 ATS CONTROLLER USER MANUAL When starting, if the Mains voltage is Gens Stop 0-6500s(5s) normal, stop delay begins; stop signal is Delay initiated after the delay has expired. Closing relay output pulse. If set as 10S, Close Delay 1.0-10.0s(10.0s) it is continuous output.
- Page 13 ATS220 ATS CONTROLLER USER MANUAL Off load Remote Start Is Off load: The generator 2- Simulated mains will start and run off load when the remote start input is active. Simulated mains：If the input is active the generator will not start in the event of a mains failure.
