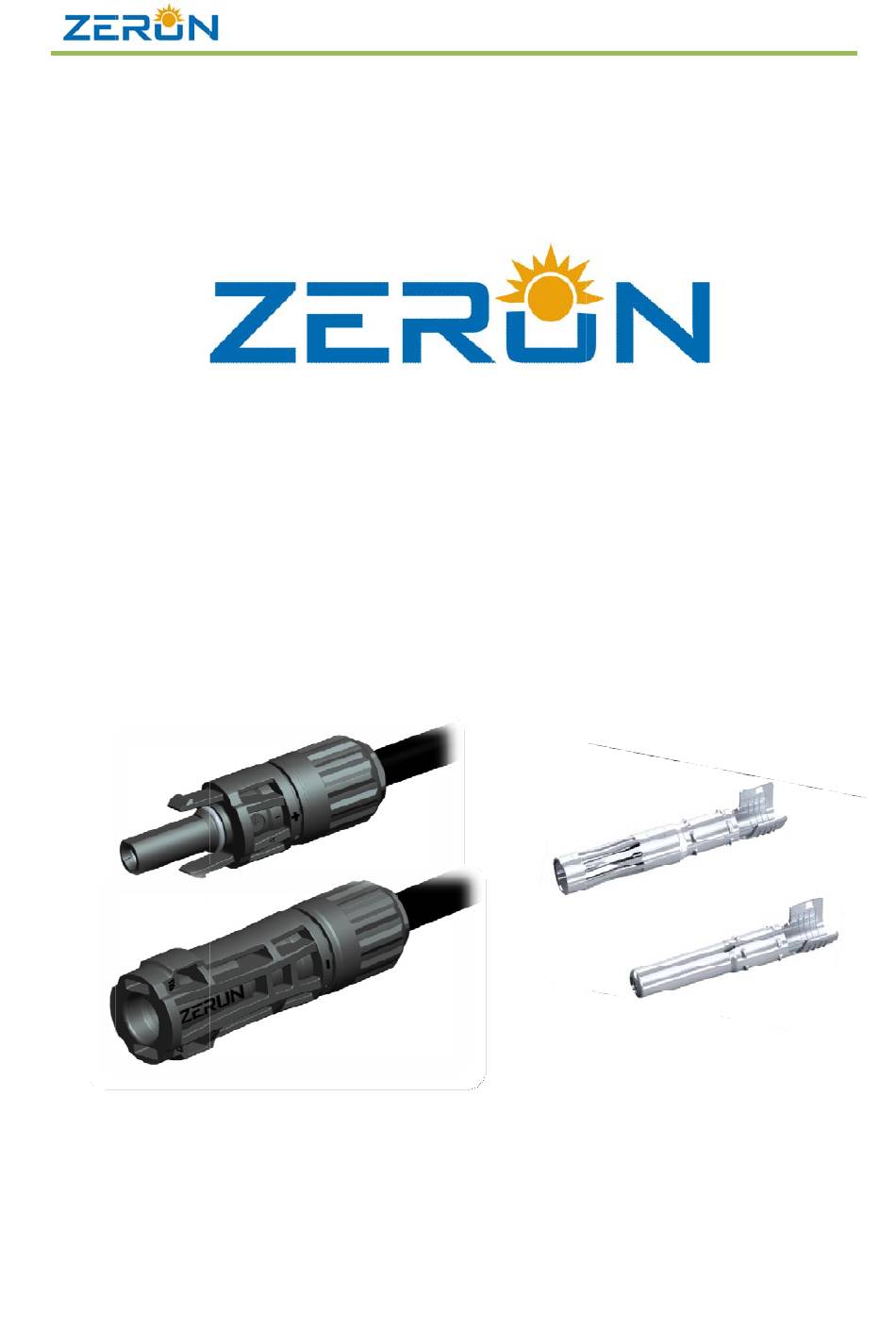

- Page 1 INSTR UCTION N MANU Rev. A RUN Z 4Sabc cde Se ries DC P Photov voltaic c Conne ector Conn ection S System f for Solar r Panel...
-
Page 2: Table Of Contents
3.2 Cable Preparation and Stripping Process .................. 4 3.3 Crimping of the contacts ........................ 5 3.4 Assembly Process .......................... 6 3.5 Connector Mating and Un‐mating .................... 8 3.6 Dust cap ............................ 9 3.7 Cable Routing ........................... 9 Dongguan Zerun Electronics Technology Co.,Ltd. ( NO.1 Xianxi Industrial Park, Zhen‘an Road, Shangjiao, Chang’an Dongguan, Guangdon, P.R. China ) 1 / 9... -
Page 3: Scope
B: TUV 1500V d: Cable Certificate C: TUV&UL 1000V D: TUV&UL 1500V 1: PA e: Housing Material 2: PPE Dongguan Zerun Electronics Technology Co.,Ltd. ( NO.1 Xianxi Industrial Park, Zhen‘an Road, Shangjiao, Chang’an Dongguan, Guangdon, P.R. China ) 2 / 9... -
Page 4: Related Documents
Therefore, during assembly, it is necessary to ensure a careful and clean processing environment. Dongguan Zerun Electronics Technology Co.,Ltd. ( NO.1 Xianxi Industrial Park, Zhen‘an Road, Shangjiao, Chang’an Dongguan, Guangdon, P.R. China ) 3 / 9... -
Page 5: Cable Preparation And Stripping Process
7.0±0.5 * Zerun specified strip tool can be used in this step. * The strip length can refer to the mark on Zerun wrench. See Picture 5. Picture 5 Adjust the striper stopper (Picture 6) and put the cable in corresponding notch to strip the length of 7mm. -
Page 6: Crimping Of The Contacts
3.3 Crimping of the contacts Zerun specified crimp tool should be used in this step. Insert the contact into the corresponding crimping notch or locator (male or female) taking into account the cable size used. -
Page 7: Assembly Process
Picture 9 Picture 10 INSERT Picture 11 Picture 12 Back cap must be closed using a torque between 2.8 and 3.1Nm. Zerun wrench can be used in this step. See Picture 13. WRENCH Picture 13 Dongguan Zerun Electronics Technology Co.,Ltd. - Page 8 Insert the connector through the hole on panel, and then install the gasket and nut. See Picture 14. During the process Zerun wrench can be used. See Picture 15. Recommended torque of installing nut is 2 N.m.
-
Page 9: Connector Mating And Un-Mating
Pulling female and male connector to make sure the connector is firmly engaged. The force is 20N max. Mating Picture 17 Picture 18 For un-mating, Zerun wrench should be used in this step. Insert the flat blade and then pull out the connector. See Picture 20. Picture 19 FORCE... -
Page 10: Dust Cap
Picture 22 Dongguan n Zerun Electron nics Technology y Co.,Ltd. ( NO.1 Xianx xi Industrial Park, Z Zhen‘an Road, Sha ngjiao, Chang’an D Dongguan, Guangdo on, P.R. China )
